Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
Specifications
Payment Terms :
T/T,L/C
Weight :
5T
Voltage :
225kv
Brand Name :
UNICOMP
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Model Number :
UNC225
Maximum penetration :
Class A imaging standard 150mm(AL)/25mm(Q235)
MOQ :
1Set
Delivery Time :
30 days
Effective dectection area :
430*430[mm]
Price :
can negotiate
Power supply :
380AC/50Hz
Supply Ability :
30 sets per month
Dimension :
2400mm*2400mm*2442mm(L*W*H)
Certification :
CE
Tube Type :
Split Tube
Place of Origin :
China
Description
Detecting Hidden Defects SUS Plate Welding Laser Welding Tig Welding UNICOMP UNC225
Industrial X-Ray Inspection System Overview
The UNICOMP UNC225 is a heavy-duty, high-stability industrial X-ray inspection solution designed for foundries, R&D centers, laboratories, and academic institutions. This robust system integrates premium digital flat-panel detector technology with high dynamic radioscopy to deliver sharp, high-resolution images with exceptional clarity.
Key System Features
  • Smart ergonomic design for simplified operation
  • Custom configuration options for wheels and tires
  • Renowned reliability and robust construction
  • Brilliant image quality with high contrast for both spot-check samples and series inspection
Technical Specifications
Attribute Value
Maximum Penetration (FE) 150mm/25mm
Equipment Weight 5T
System Dimensions (L*W*H) 2400mm * 2400mm * 2442mm
X-ray Tube 225KV
Power 800W/1800W
Pixel Pitch 154μm
Minimum Focal Spot 0.4mm/1.0mm
Maximum Inspection Area Φ600mm x 800mm

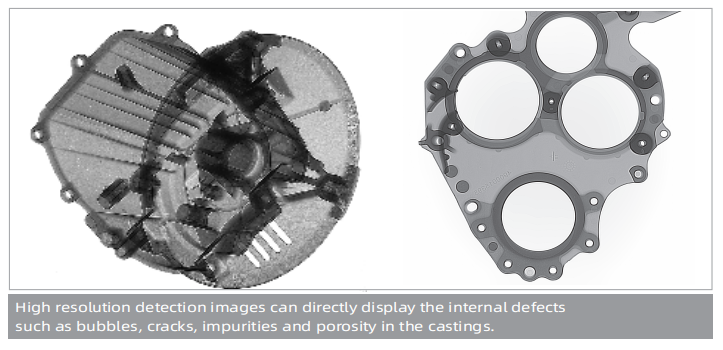

Inspection Images
Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
Sample inspection images demonstrating system capabilities
Dimensions and Appearance
Detecting Hidden Defects SUS Plate Weldong Laser Welding Tig Welding UNICOMP UNC225
System dimensional diagram and external appearance
Applications and Detection Capabilities
Engineered for multi-material radiographic flaw screening, the UNC225 system performs high-precision NDT inspection for the following workpieces:
  • Automotive aluminum castings: engine blocks, cylinder heads, pistons, steering knuckles
  • Aero-grade precision turbine investment castings
  • Alloy wheel hubs, automotive rims and tire reinforcing components
  • FRP fiber-reinforced composite materials
  • High-performance structural ceramics
  • Metal & plastic additive manufacturing (3D printed) components
