Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Specifications
Brand Name :
UNICOMP
Model Number :
UNC225
Certification :
CE
Place of Origin :
China (Mainland)
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Dimension :
2400mm*2400mm*2442mm(L*W*H)
Weight :
5T
Tube Type :
Split Tube
Voltage :
225kv
Effective dectection area :
430*430[mm]
Description
Welded Pipes X-Ray Inspection Machine Unicomp UNC225
Advanced weld seam quality control system for industrial applications
Product Overview
The UNICOMP UNC225 is a heavy-duty, high-stability industrial X-ray inspection solution designed for foundries, R&D centers, laboratories, and academic institutions. This robust system integrates premium digital flat-panel detector technology with high dynamic radioscopy to deliver sharp, high-resolution images with exceptional clarity.
  • Smart ergonomic design for simplified operation
  • Custom configuration options for wheels and tires
  • Renowned reliability and robust construction
  • Brilliant image quality with high contrast for both spot-check samples and series inspection
Technical Specifications
Attribute Value
Maximum Penetration (FE) 150mm/25mm
Equipment Weight 5T
System Dimensions (L*W*H) 2400mm * 2400mm * 2442mm
X-ray Tube 225KV
Power 800W/1800W
Pixel Pitch 154μm
Minimum Focal Spot 0.4mm/1.0mm
Maximum Inspection Area Φ600mm x 800mm

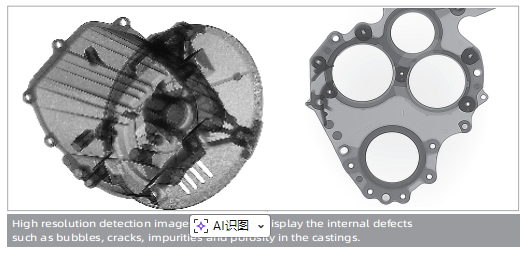

Inspection Images
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control

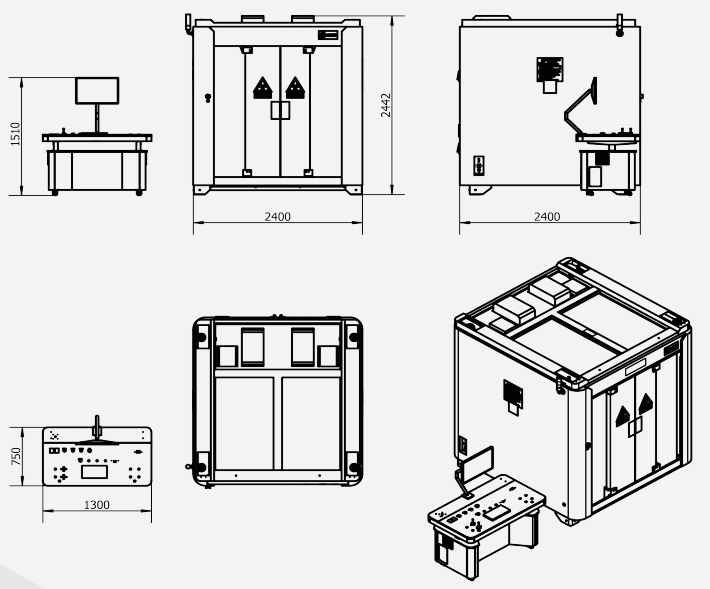

Dimensions and Appearance
Welded Pipes X-Ray inspection machine Unicomp UNC225 for weld seams quality control
Applications and Detection Capabilities
The UNC225 system effectively detects casting flaws in various materials including:
  1. Aluminum castings (engine blocks, cylinders, cylinder heads, pistons, knuckles)
  2. Turbine blades
  3. Wheels and tires
  4. Fiber-reinforced materials
  5. Ceramics
  6. 3D printed materials
