High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
Specifications
Brand Name :
Unicomp
Model Number :
AX9600
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
30 sets per month
Delivery Time :
30-35 days after order confirmation
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Dimensions :
1690mm(L)×2116mm(W)×1880mm(H)
Tube Type :
Open Type
Machine Weight :
4590KG
Voltage :
160kv
Description
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
The UNICOMP AX9600 features a self-developed 160kV high-power open micro-focus X-ray tube, delivering an ultra-small 0.8μm focal spot. With exceptional magnification up to 2000 times and outstanding ray penetration capacity, it accurately measures void ratio of TVS diodes, and is ideal for high-precision quality inspection of advanced IC packaging, HBM memory chips and GPU semiconductor components.
Technical Specifications
System Summary
Dimensions 1690mm(L)×2116mm(W)×1880mm(H)
Weight 4590kg
Power Supply 220V±10% 50Hz/60Hz 9A
Power Consumption 2kw
X-ray Tube
Tube Type Open Type
Voltage 160kv
Max. Power 64W
Focus Spot Size 1µm
Imaging System
X-ray Detector FPD
Pixel Size 84µm
Detection Area 129*129mm
Pixel Matrix 1536*1536[pixel]
Frame Rates Max 30fps
System Magnification 34000X
Motion Control System
Max. Payload Size 520*520[mm]
Max. Detection Size 520*520[mm]
X/Y/Z-Axis Travel Distance 550/710/265[mm]
Tilt and Rotation Detect XY±70° Tilt
Industrial PC
Motion Control Mode 34"HD 4K curved display
Operating System Windows 11 64-bit
Storage 4TB HDD+512G SSD
Memory 32G
Processor i5 12 generation
Other Features
Door Operation Automatic Door
X-Ray Safety <1µSv/h
Applications
The UNICOMP AX9600 high-power micro-focus X-ray inspection system is tailored for ultra-precision non-destructive testing of advanced semiconductor and electronic components. It excels in void ratio measurement of TVS diodes, internal defect detection of advanced IC packaging, HBM high-bandwidth memory chips, GPU modules and high-density electronic assemblies. Widely applied to quality inspection of automotive electronics, power semiconductors, aerospace electronic devices and precision micro-components, it enables accurate analysis of micro-voids, solder joint defects, internal cracks and assembly anomalies, supporting R&D verification and mass-production quality control for high-end semiconductor industries.

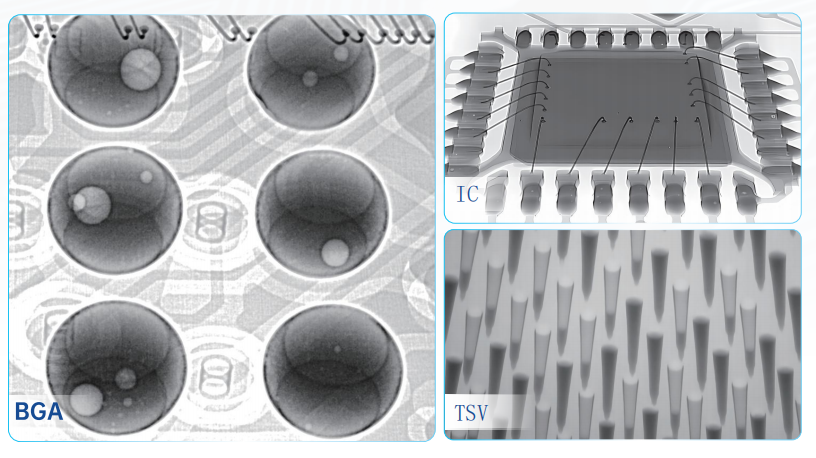

Inspection Images
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
Sample Inspection Image

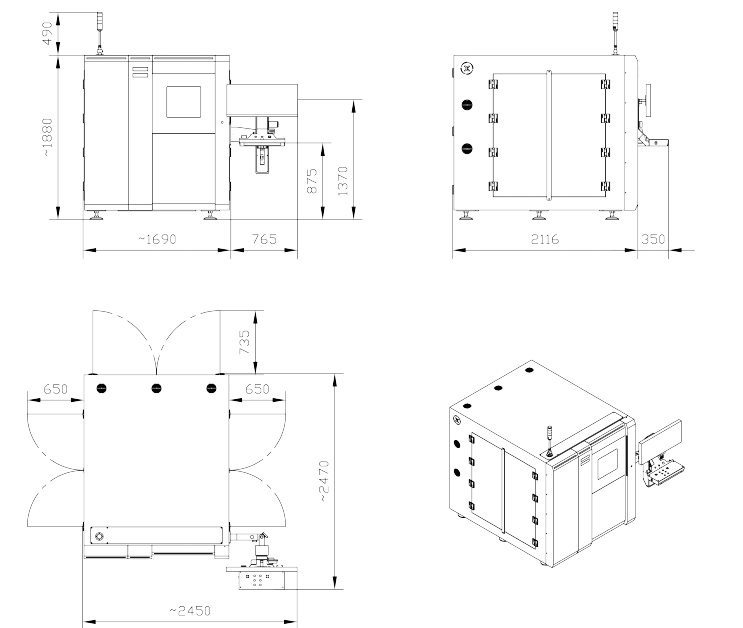

Dimensions and Appearance
High Precision LED X-ray AX9600 Unicomp Optoelectronics Manufacturing Tester
System Dimensions and Appearance
