Specifications
Brand Name :
UNICOMP
Model Number :
UNC160
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Name :
NDT UNC160
Application :
Aluminum Casting, Iron Casting, Auto Parts, Wheels, Metal Products, Refractory Materials
Tube Voltage :
160KV
Industry :
Industry Nondestructive Testing
Size :
2400(L)x2400(W)x2442(H)mm
X-ray Leakage :
< 1uSv/h
Weight :
3.8T
Power Consumption :
6kW
Description
High Resolution Digital Radiography NDT X-Ray Machine UNC160
Advanced non-destructive testing system designed for comprehensive inspection of insulators and industrial components with micron-level precision.
Technical Specifications
System Parameters Dimensions
Equipment weight 3.8T
Power 6KW
Detection range Φ600*800mm
Load weight 100kg
Install power Three-phase five-wire system AC380V
X-ray leakage dose rate ≤1uSv/h
X-ray Generator
Tube Voltage 160kv
Tube Type Sealed
Focal size 0.5mm
Tube Power 480W
Detector
Detector (Selection FPD) Pixel matrix: 3072mm*3072mm
Pixel size 139μm
Software Functions
Image Processing: Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure; move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
Image Measurement: Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image
Motion Control: Speed adjustment of each moving axis; CNC programming; manual operation
Additional Functions
  • Save detection time of bulk workpieces via CNC programmable control
  • No dead angle detection with C-arm five-axis motion detection mechanism
  • Servo stepper motor drive for operational stability
  • Complete protective functions including voltage regulator, isolation, filtering, and grounding
  • Industrial cloud interface for real-time data and picture upload with traceability and big data analysis (optional)
Applications
  • Cast parts and Pressure Vessels
  • Steel pipe, Cylinder, and Wood
  • Epoxy Resin Defect Detection
  • Wheel, Tires, and Metal parts
Key Features
  • Strong penetration, high reliability, low breakdown, long life
  • High definition, resolution FPD
  • Multi-functional workstation with 360° rotation and shift
  • High automation with fast detection speed
  • User-friendly software design with customizable function development

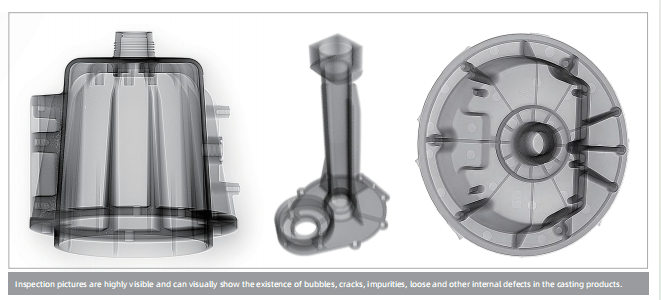

Inspection Images
High Resolution and Digital Radiography insulator Non-destructive testing X-Ray machine Unicomp X ray UNC160
Frequently Asked Questions
How about the package? Is it safe during delivery?
All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
Do you provide warranty? How about after-sales service?
1-year warranty free for spare parts with lifetime technical support. Professional after-sales team available with assistant videos provided.
If we visit your factory, will you provide free training?
Yes, we warmly welcome factory visits and arrange free training sessions.
Our Services
  • Product project analysis and detection solutions
  • Free sample detection testing
  • Professional detection solutions
  • Skilled jig design services
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance
  • 24-hour email response time
