Specifications
Power Consumption :
700 W
Model Number :
CX3000
Footprint :
810(L)×1000(W)×1570(H)mm
Delivery Time :
30 days
Plywood Packing Size :
1550(W)×1150(D)×1950(H)mm
MOQ :
1 PCS
Place of Origin :
China
Packing Weight :
860kg (include desk)
Supply Ability :
30 sets per month
Payment Terms :
T/T,L/C
Name :
Electronics X Ray Machine
Certification :
CE, FDA
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Machine Weight :
720 kg
Brand Name :
Unicomp
Price :
can negotiate
Power Supply :
220V, 50/60Hz 3A
Description
CX300 Unicomp Gold Bond Inspection Equipment
90kV 5μm Resolution Bonding Wire Semiconductor X-ray Tester for precise inspection and quality control.
Applications
BGA, CSP, LED, Flip Chip, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Aerospace Components, Photovoltaic Industry, and other specialized industries.
Key Features
  • Super Compact Desktop Design
  • Multi-function X-Ray Inspection
  • Multiple Inspection Modes
  • Portable with Wheels
  • Status Light and Emergency Button
  • Safety Electromagnetic Interlock
Product Description
Widely applied for electronics components in Tape & Reel, JEDEC Tray and Tube package, PCBA, BGA, CSP, Flip Chip, LED, Fuse, Diode, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, and more.
Technical Specifications
Component Definition Specifications
X-Ray Tube Tube Type Sealed
Voltage 90kV
Current 180µA
Minimum Resolution 5μm
Imaging System Detector Flat Panel Detector (FPD)
Effective Detection Area 129*129mm
Pixel Matrix 1536*1536
Pixel Size 84μm
Frame Rates 30fps
System Magnification 200X
Software Auto-measuring Internal defects of electronic components, PCBA welding quality auto-measuring with data/graphic output
Multiple Measuring Tools Distance, Angle, Diameter, Polygon, PTH filling rate measurements
Real-time Display Working data of voltage, current, angle, date, etc.
Navigation Navigation in visual windows
User Friendly Automatic conveying of reel to reel components, easy operation
Motion Control System Manipulator 3-axis with X / Y / Z
Max. Loading Area/Weight 350*375mm / 5kg
Max. Inspection Area 330*350mm
Movement Control Keypad & Mouse
Frequently Asked Questions
How about the packaging? Is it safe during delivery?
All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
Do you provide warranty? How about the after-sales service?
1-year warranty free for spare parts with lifetime technical support. We have a professional after-sales team and provide assistant videos for troubleshooting.
If we visit your factory, will you provide free training?
Yes, we warmly welcome you to visit our factory and will arrange free training for you.
Our Services
  • Help customers analyze product projects and provide detection solutions
  • Provide professional detection solutions
  • Skilled jig design services
  • 24-hour feedback speed by email
  • Free sample detection test
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance promise

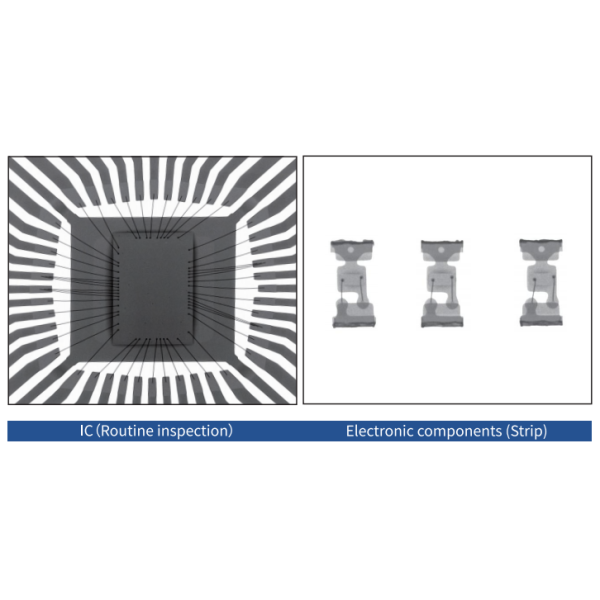

Inspection Images
