CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
Specifications
Model Number :
AX9100
X-ray Leakage :
< 1uSv/h
Brand Name :
Unicomp
Weight :
1750kg
MOQ :
1 Set
Delivery Time :
30 days
Size :
1280(L)x1510(W)x1700(H)mm
Payment Terms :
T/T,L/C
Application :
SMT, EMS,BGA, Electronics, CSP , LED, Semiconductor
Industry :
Electronics Industry
Place of Origin :
China
Price :
can negotiate
Tube Voltage :
130KV
Supply Ability :
30 sets per month
Name :
X Ray Pcb Inspection Machine
Warranty :
1 Year
Power Consumption :
1.2kW
Certification :
CE, FDA
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
Advanced X-ray inspection system designed for comprehensive defect detection in electronic components and industrial applications.
Key Features
  • 130KV 7μm X-Ray tube for precise imaging
  • High speed & millions pixels high resolution FPD
  • 1000X magnification with high-definition real-time image display
  • One-button operation with 2.5D image display
  • Off-line programming function with navigation mode detection
  • 7 axis linkage with 70 degree tilt detection capability
Applications
  • SMT, BGA, CSP, Flip Chip, LED Detection
  • Semiconductor and Packaging components
  • Battery Industry and Electronic components
  • Auto parts and Photovoltaic Industry
  • Aluminum Die-casting and Moulding Plastic
  • Ceramics and Other Special Industries
Technical Specifications
System Parameters Definition Specs
Size 1280(L)x1510(W)x1700(H)mm
Weight 1750kg
Power 220V±10% 50Hz/60Hz 5A
Power Consumption 1.2kW
X-ray Tube Type Closed
Max. Voltage 130kV
Max. Power 65W
Spot Size 7μm
X-ray System Intensifier FPD
Monitor 27'' HD
System Magnification 1600 X
Detection Region Max. Payload Size 645*670[mm]
Max. Detection size 565*510[mm]
X-ray Leakage <1μSv/h
Our Services
  • Product project analysis and detection solutions
  • Free sample detection testing
  • Professional detection solution development
  • Skilled jig design services
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance
  • 24-hour email response time
Frequently Asked Questions
How about the package? Is it safe during the delivery?
All X-ray inspection machines are packed in standard strong wooden cartons to ensure safe shipping.
Do you provide the Warranty? How about the after sales service?
1 year warranty free for spare parts with lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support.
If we come to your factory, will you provide free training?
Yes, we warmly welcome visitors to our factory and provide complimentary training sessions.

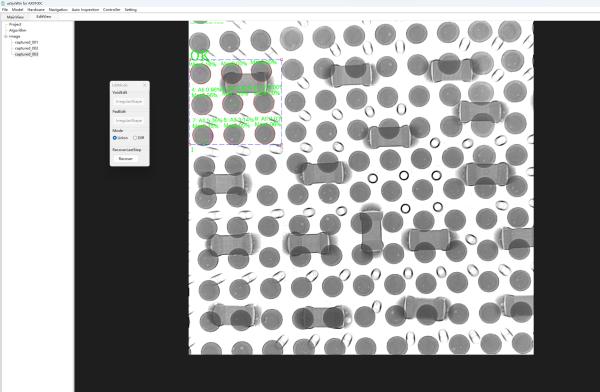

Application Examples
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System

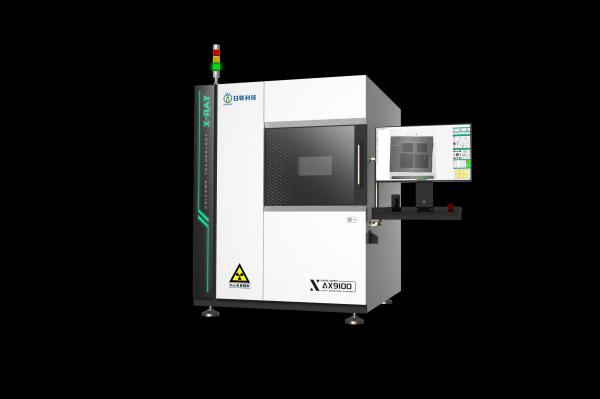

Product Images
CNC Auto Batch Inspection BGA Editmode X-ray AX9100 UNICOMP Electronics PCBA Processing Inspection System
