High Specifications Electronic Boards 2D 2.5D X-ray Machine Unicomp AX9100MAX
130KV micron focus spot size tube X-ray machine Unicomp AX9100 with dual computers for PCB BGA inspection. Optimized for high-precision non-destructive testing of semiconductors and electronics, the AX9100MAX provides comprehensive inspection capabilities for IC curvature measurement and various electronic components.
Applications
  • BGA, CSP, flip chips, LED packages
  • Fuses, power diodes, multilayer PCBs
  • Discrete semiconductors, lithium battery modules
  • Precision castings, automotive connectors
  • Wiring harnesses, and photovoltaic components
System Specifications
Footprint1450(W)*1765(D)*1835(H)mm
Machine Weight2400 kg
Power Supply220V±10%, 50/60Hz, 8A
Packaging Dimension1750(W)*2280(D)*2100(H)mm
Packing Weight2600 kg
Power Consumption1.8 kW
X-Ray Tube Specifications
Tube TypeSealed type
Max. Power Output65W
Voltage130kV
Focus Spot Size≤7μm
Imaging System
DetectorHigh Resolution FPD
Pixel Size84μm
Effective Detection Area129*129mm
Frame Rates30fps
Pixel Matrix1536*1536
System Magnification1600X
Software Features
  • One-click zoom in & out with fast automatic navigation of ROI region
  • Fixed-point following during FPD tilting
  • Table automatic following while axis tilting separately
  • Algorithms for image super-resolution reconstruction
  • Automatic images comparison
  • Intelligent contrast adjustment with one-click
  • Variety of filter processing algorithms including sharpening, enhancement, color reversal, and denoising
Motion Control System
Movement Control MethodDual Joystick, Keypad & Mouse
Max. Loading SizeФ620mm
Max. Inspection SizeФ500mm
Tilting InspectionMaximum 60° (Tube & Detector)
Objective StageHorizontal Rotation 360°
Industrial PC
Monitor27" 4K HD display (Dual)
Operating SystemWindows 10 64bit
Hard Disk1TB
RAM16G
CPU ModelIntel i7 Processor
Safety & Security Features
  • Hand-operated door
  • Electromagnetic interlock, warning light and real-time radiation leakage monitor
  • Fingerprint access management system with password support
  • X-Ray safety: <1μSv/h (Meets all international standards)
Dimensions and Appearance
High specifications electronic boards 2D 2.5D X-ray machine Unicomp AX9100MAX with 360 degrees rotation table
Functions and Features
High specifications electronic boards 2D 2.5D X-ray machine Unicomp AX9100MAX with 360 degrees rotation table

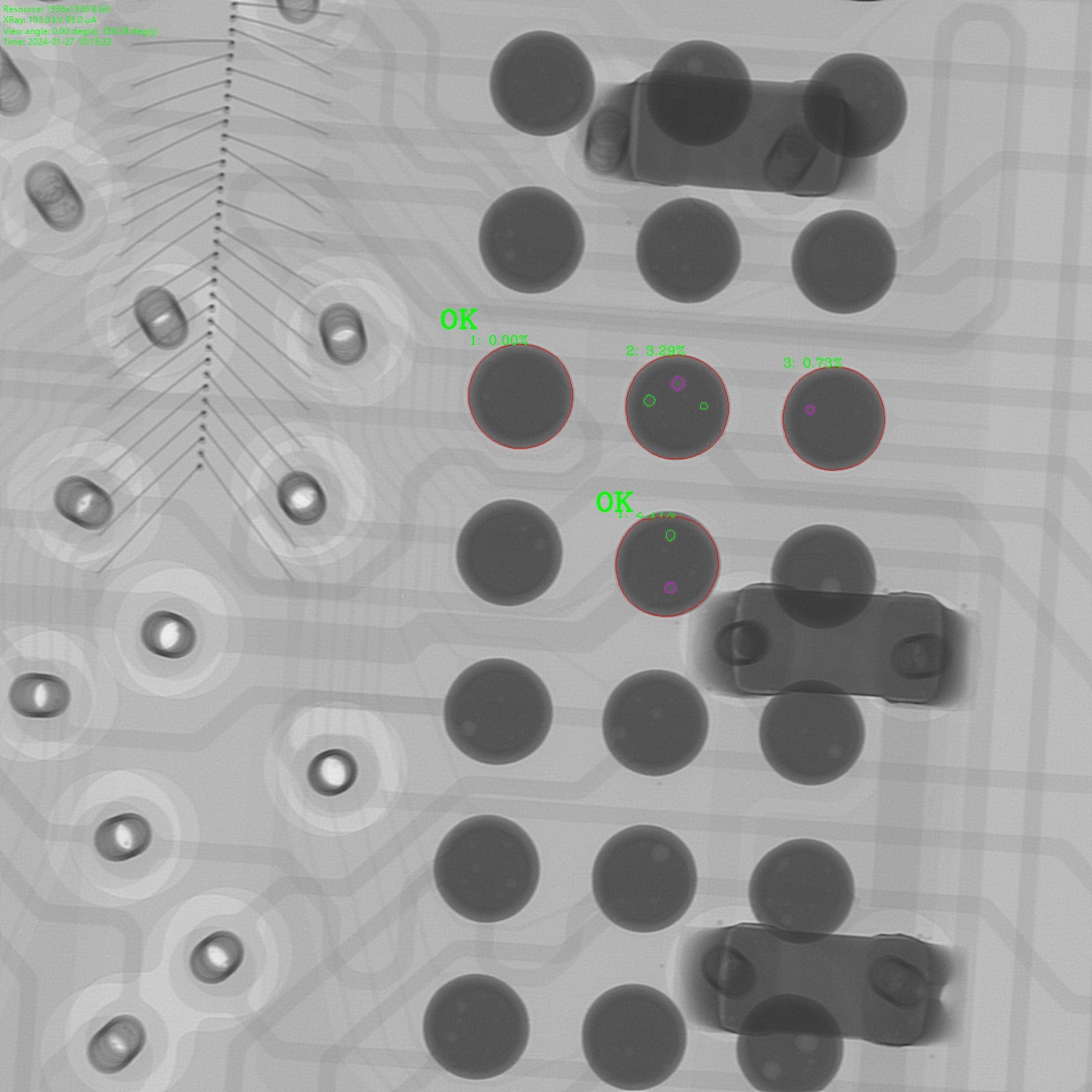

Inspection Image
High specifications electronic boards 2D 2.5D X-ray machine Unicomp AX9100MAX with 360 degrees rotation table
