General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
Specifications
Supply Ability :
30 sets per month
Brand Name :
Unicomp
Name :
Unicomp X-ray AX9100vs Multi-mode 3D Micro-focus X-ray Analyze Inspection System
Place of Origin :
China
Power :
4.5kw
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Model Number :
AX9100vs
Footprint :
1400(L)×1720(W)×1800(H)mm
MOQ :
1 PCS
Delivery Time :
30 days
Tube type :
Close Tube
Payment Terms :
T/T,L/C
Price :
can negotiate
Certification :
CE
Machine Weight :
2925 kg
Description
UNICOMP AX9100VS X-ray Inspection System
Advanced X-ray inspection system designed for comprehensive semiconductor and PCBA production analysis with full-angle rotary capabilities.
Applications
BGA, CSP, LED, Flip Chip; Automotive Components and New Energy Industry; Aluminum Die Casting, Molded Plastic; Ceramic Products and other special industries.
Key Features
  • Precise detection inspection of tiny defects
  • Multi-mode 3D reconstruction
  • Synchronized 7-axis manipulation with any angle
  • Batch mode positioning inspection
  • Closed tube with maintenance-free X-ray source
  • Multi-angle image tracking system
Technical Specifications
X-ray sourceClosed tube 130kV
DetectorHigh-definition flat panel detector
Image resolution≤2µm
Magnification1200x (synthesis 6000x)
Loading area530(x) x 530(y) mm
Max. inspection area (2D/2.5D)500(x) x 500(y) mm
Sample weight10kg
VoltageSingle-phase 220VAC, 50/60Hz
Power4.5kW
Dimensions1400 x 1720 x 1800 mm
Weight2925kg
ControlControl PC

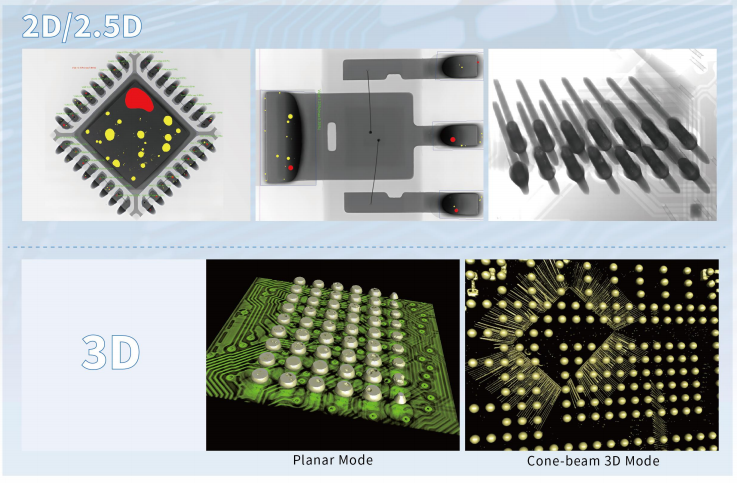

Inspection Images
General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
System Footprint
General Electronics PCBA Production X-ray UNICOMP AX9100VS SOP Lead Solder Void Bridging Inspection
Our Services
  • Help customers analyze product projects and provide detection solutions
  • Provide professional detection solutions
  • Skilled jig design services
  • 24-hour feedback speed by email
  • Free sample detection testing
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance promise
Frequently Asked Questions
How about the packaging and delivery safety?
All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
What is the warranty and after-sales service?
1-year warranty free for spare parts with lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support.
Do you provide factory training?
Yes, we warmly welcome customers to visit our factory and provide free training sessions.
