SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
Specifications
Supply Ability :
30 sets per month
System Magnification :
1600X
Model Number :
AX9100MAX
Model :
AX9100MAX
MOQ :
1 set
Delivery Time :
15 days
X-ray Tube Type :
sealed type
Payment Terms :
L/C,T/T
Pixel :
1536*1536
Price :
can negotiate
Pixel Size :
84μm
Certification :
CE, FDA
Footprint :
1450(W)×1765(D)×1835(H)mm
Brand Name :
UNICOMP
Machine Type :
Semiconductor Electronic X-Ray Inspection System
Place of Origin :
China
Max.Power :
65W
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description

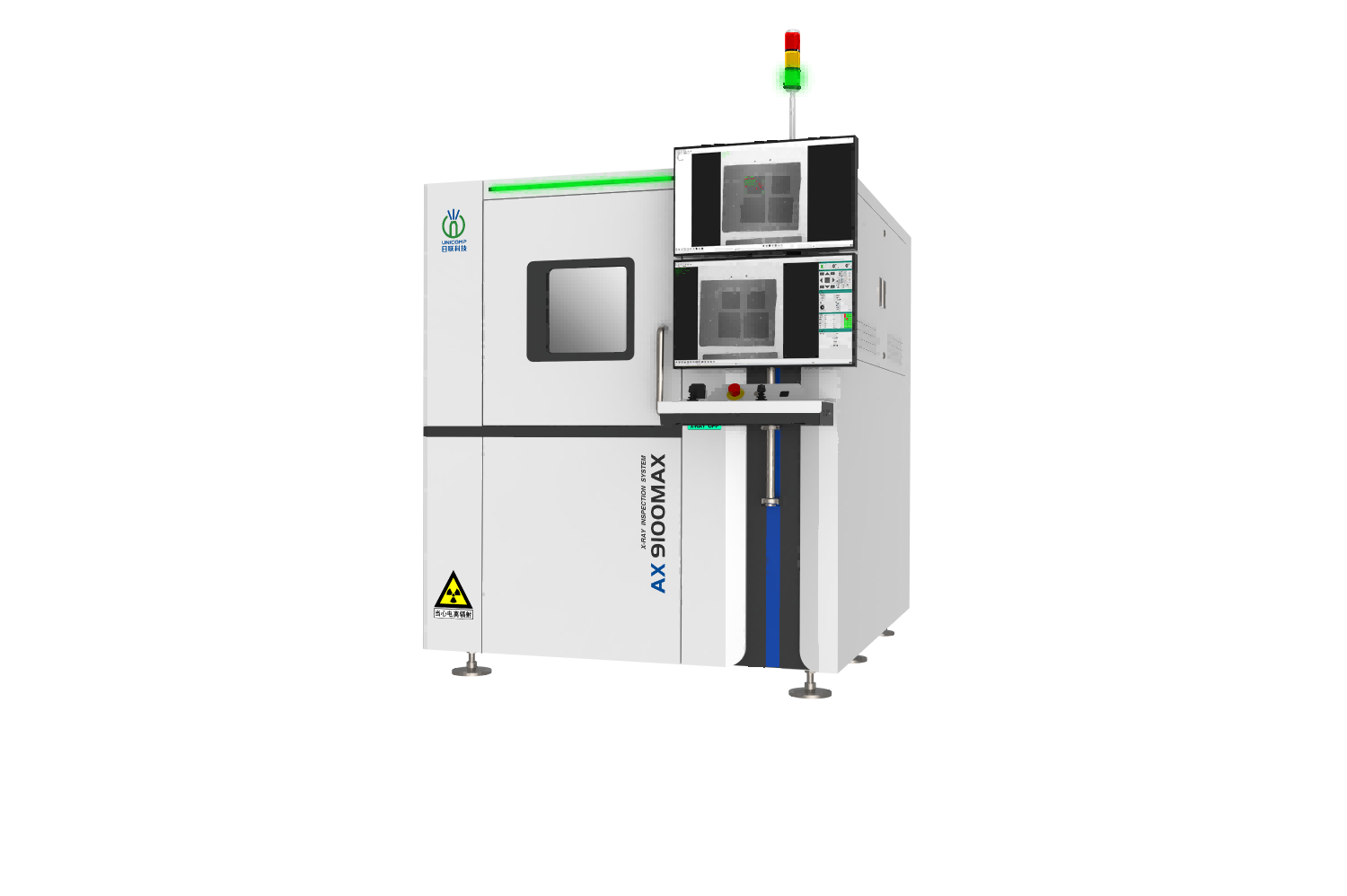

SMT PCB X-ray Machine - Unicomp AX9100MAX
High-resolution micron focus spot size X-ray system optimized for BGA voids measurement and comprehensive non-destructive testing of semiconductors and electronic components.
Applications
BGA, CSP, flip chips, LED packages, fuses, power diodes, multilayer PCBs, discrete semiconductors, lithium battery modules, precision castings, automotive connectors, wiring harnesses, and photovoltaic components.
System Specifications
Footprint1450(W)*1765(D)*1835(H)mm
Machine Weight2400 kg
Power Supply220V±10%, 50/60Hz, 8A
Packaging Dimension1750(W)*2280(D)*2100(H)mm
Packing Weight2600 kg
Power Consumption1.8 kW
X-Ray Tube
Tube TypeSealed type
Max. Power Output65W
Voltage130kV
Focus Spot Size≤7μm
Imaging System
DetectorHigh Resolution FPD
Pixel Size84μm
Effective Detection Area129*129mm
Frame Rates30fps
Pixel Matrix1536*1536
System Magnification1600X
Software Features
  • One-click zoom in & out with fast automatic navigation of ROI region
  • Fixed-point following during FPD tilting
  • Table automatic following while axis tilting separately
  • Algorithms for image super-resolution reconstruction
  • Automatic images comparison
  • Intelligent contrast adjustment with one-click
  • Variety of filter processing algorithms including sharpening, enhancement, color reversal, and denoising
Motion Control System
Movement Control MethodDual Joystick, Keypad & Mouse
Max. Loading SizeФ620mm
Max. Inspection SizeФ500mm
Tilting InspectionMaximum 60° (Tube & Detector)
Objective StageHorizontal Rotation 360°
Industrial PC
Monitor27" 4K HD display (Dual)
Operating SystemWindows 10 64bit
Hard Disk1TB
RAM16G
CPU ModelIntel i7 Processor
Safety & Security Features
  • Hand-operated door
  • Electromagnetic interlock, warning light and real-time radiation leakage monitor
  • Fingerprint access management system with password support
  • X-Ray safety: <1μSv/h (Meets all international standards)
Visual Documentation
Dimensions and Appearance
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
Functions and Features
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
Inspection Image
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX9100MAX for BGA voids measurement
Specifications are subject to change without notice. All trademarks are the property of the system maker.
