Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray
Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray
Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray
Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray
Specifications
Supply Ability :
30 sets per month
Heavy load Conveyor Speed :
10-40M/min
Model Number :
UNX4015N
Machine weight :
450kg
MOQ :
1 PCS
Delivery Time :
30 days
Max. Loading weight :
10kg
Payment Terms :
T/T,L/C
Conveyor Speed :
10-70M/min
Price :
USD
X-ray detector :
Diode array with 0.4mm resolution
Certification :
CE
X-ray tube :
80kv,210W/350W
Brand Name :
Unicomp
Machine DImension :
1140*1160*1975
Place of Origin :
China
Power Supply :
AC 220V, 50Hz
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
Unicomp Dates Seeds Inspection with Foreign Object Detection UNX4015 X-Ray
Advanced X-ray inspection system designed for precise foreign object detection in dates, seeds, and various packaged food products.
Key Features
  • Detection Capability: High-precision automatic foreign-body detection for metals, ceramics, glass, bone, shell, and other contaminants
  • Adjustability & Alarms: User-adjustable sensitivity with integrated alarm management
  • Data Reporting: Comprehensive statistical reporting for quality traceability
  • Detection Performance: Industry-leading sensitivity powered by AI deep-learning intelligent algorithms
  • Maintenance Design: Tool-free removal for conveyor belt and protective curtains
Technical Specifications
Feature Specification
Dimension 1140(W) * 1160(D) * 1975(H) mm
Machine Weight 450 kg
X-ray Tube 80kV, 210/350W
Power Supply AC 220V, 50Hz
Max Loading Weight 10 kg
X-ray Detector Diode array with 0.4mm resolution
Channel Size 400mm(W) * 150mm(H)
Conveyor Speed 10-70 M/min
Heavy Load Conveyor Speed 10-40 M/min
Operating Range 10°C to 40°C (50°F to 104°F), 30% to 90% relative humidity non-condensing
Detection Accuracy SUS BALL ≥ ø0.3mm, SUS wire ≥ ø0.2*2mm, Glass ball ≥ ø1.0mm, Ceramic ball ≥ ø1.0mm
Communications 1*LAN, 2*USB
Industrial PC 15.6" HD touch screen; Windows 10
Ingress Protection Conveyor: IP66, Others: IP65
X-Ray Safety <1μSv/h
Optional Configuration
Rejector options include: Sound-Light alarm, flipper, dropout, air jet, pusher, chute, shuttle
Applications
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweight products including candy, fresh meat, prawn, vegetable, poultry, chocolates, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, and similar packaged goods.

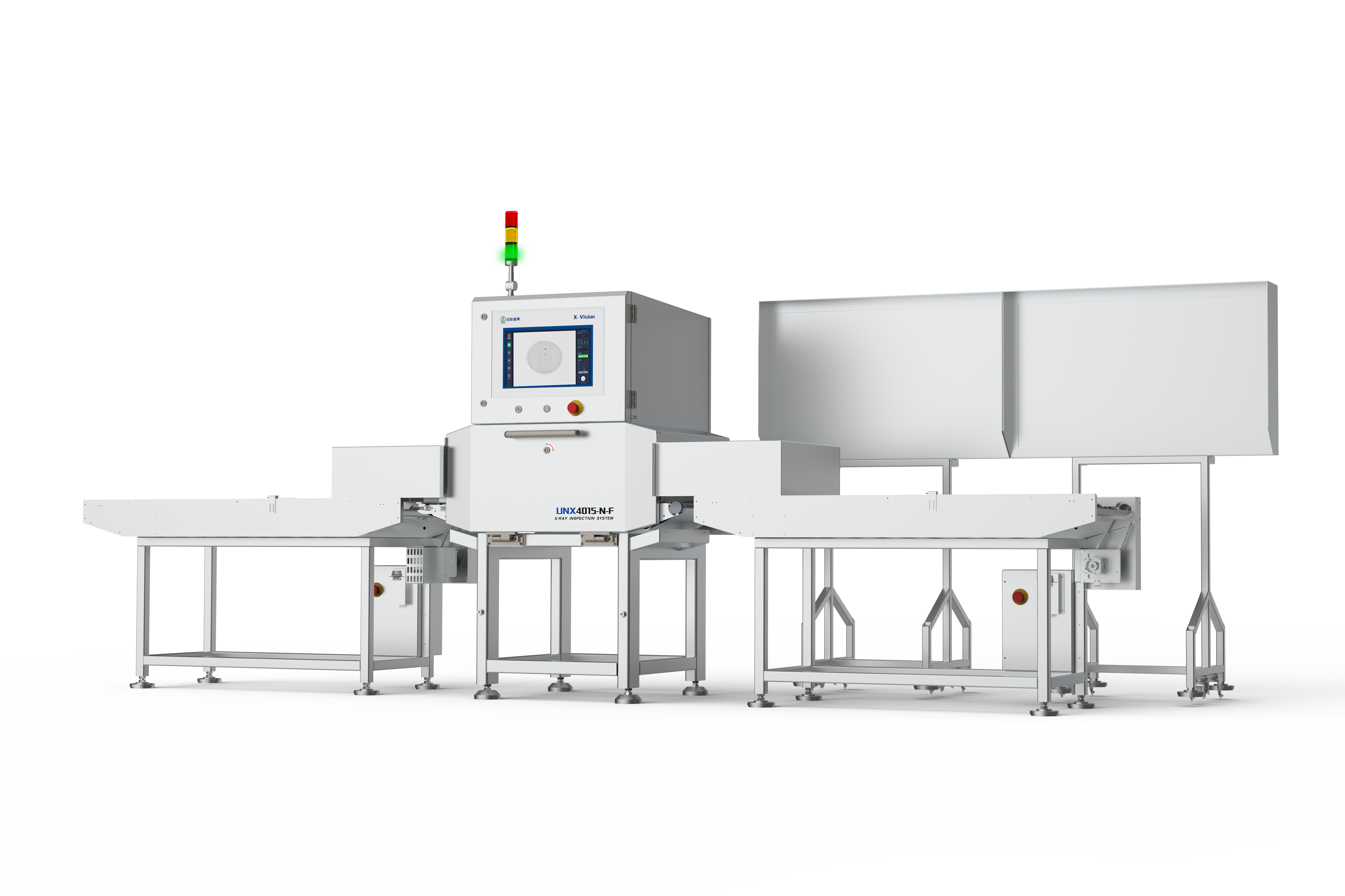

Product Overview
Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray

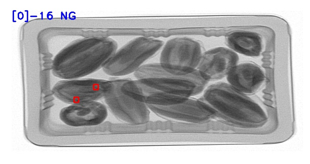

Detection Image Example
Unicomp Dates seeds inspection with our Foreign Object Detection UNX4015 X-Ray
