Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
Specifications
Supply Ability :
30 sets per month
Conveyor Speed :
10-70M/min
Model Number :
UNX4015N
Machine Model :
UNX4015
MOQ :
1 PCS
Delivery Time :
30 days
Power Supply :
AC 220V, 50Hz
Heavy load Conveyor Speed :
10-40M/min
Payment Terms :
T/T,L/C
X-ray detector :
Diode array with 0.4mm resolution
Price :
USD
Max. Loading weight :
10kg
Certification :
CE
Machine weight :
450kg
Brand Name :
Unicomp
Machine Type :
Foreign matter detection machine
Place of Origin :
China
X-ray tube :
80kv,210W/350W
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
Worry-Free Pin Bone Detection in Salmon Fillet
Our Foreign Object Detection UNX4015 X-Ray Unicomp system provides reliable detection of pin bones and other contaminants in salmon fillets and similar products.
Product Overview
High-precision X-ray inspection system designed to detect foreign contaminants in 12mm thick sausage products and other lightweight packaged goods.
Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
Key Features
  • Detection Capability: High-precision automatic foreign-body detection for metals, ceramics, glass, bone, shell, and other contaminants
  • Adjustability & Alarms: User-adjustable sensitivity with integrated alarm management
  • Data Reporting: Comprehensive statistical reporting for quality traceability
  • Detection Performance: Industry-leading sensitivity powered by AI deep-learning intelligent algorithms
  • Maintenance Design: Tool-free removal for conveyor belt and protective curtains
Technical Specifications
FeatureSpecification
Dimension1140(W) * 1160(D) * 1975(H) mm
Machine Weight450 kg
X-ray Tube80kV, 210/350W
Power SupplyAC 220V, 50Hz
Max Loading Weight10 kg
X-ray DetectorDiode array with 0.4mm resolution
Channel Size400mm(W) * 150mm(H)
Conveyor Speed10-70 M/min
Heavy Load Conveyor Speed10-40 M/min
Operating Range10°C to 40°C (50°F to 104°F), 30% to 90% relative humidity non-condensing
Detection AccuracySUS BALL ≥ ø0.3mm, SUS wire ≥ ø0.2*2mm, Glass ball ≥ ø1.0mm, Ceramic ball ≥ ø1.0mm
Communications1*LAN, 2*USB
Industrial PC15.6" HD touch screen; Windows 10
Ingress ProtectionConveyor: IP66, Others: IP65
X-Ray Safety<1μSv/h
Optional Configuration
Rejector options include: Sound-Light alarm, flipper, dropout, air jet, pusher, chute, shuttle
Applications
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweight products including candy, fresh meat, prawn, vegetable, poultry, chocolates, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, and similar packaged goods.

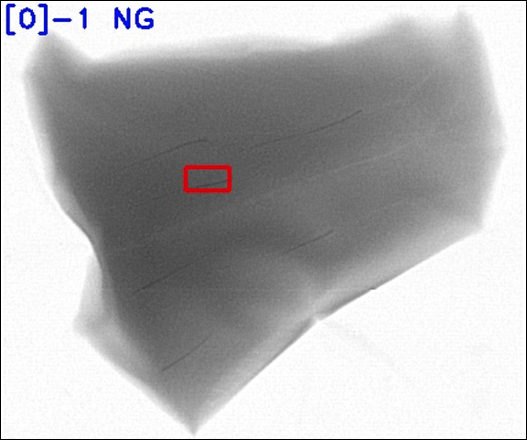

Detection Image Example
Worry free for Pin Bone occurs in Salmon Fillet with our Foreign Object Detection UNX4015 X-Ray Unicomp
