X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
Specifications
Model Number :
CX7000L
Machine Weight :
740kg
Price :
can negotiate
Hard Disk :
1TB HDD+512G SSD
Frame Rates :
2FPS
MOQ :
1Set
Delivery Time :
30 days
Min.Resolution :
0.05mm
Payment Terms :
L/C,T/T
Door Open :
Hand-operated door
Tube Voltage :
80kV
Supply Ability :
30 sets per month
Model :
CX7000L
Brand Name :
UNICOMP
Xray Tube :
Sealed
Certification :
CE, FDA
Place of Origin :
China
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
X-Ray Component Reel Counter - UNICOMP CX7000L
Count components in seconds, even when packaged in trays, with our advanced X-Ray Component Counter CX7000L. This lose-type reel counter delivers fast, accurate, and non-destructive component counting for modern manufacturing operations.
Technical Specifications
Equipment Dimensions & Power
Footprint (W×D×H) / Weight870 mm × 1410 mm × 1960 mm / 740 kg
Package DimensionsPlywood Case, 1050 cm × 1650 cm × 2200 cm, Total 920 kg
Power Consumption700W
Power Supply220V ±10% 50Hz/60Hz 3A
System Computer
Operating SystemIndustrial PC, Windows 11
RAM / CPU Model16GB / I5 8th Generation
Monitor27" FHD LCD Display
X-Ray Tube Specifications
Maximum Voltage80 kV
Tube TypeSealed
Maximum Current1mA
Focal Spot Size0.03 mm
Detector Specifications
FPD Detector Pixel Size140 μm
Effective Detection Area430 × 430 mm
Pixel Matrix3072 × 3072
Frame Rates / AD Bits2fps / 16 Bit
Detection Parameters
Inspection Tape & Reel Size7" ~ 17"
Scan Height≤ 80mm
Maximum Inspection Speed7"~17" Tape & Reel: <10s/Reel, 7"×4: <10s
Minimum Component Size01005
Inspection Accuracy≥ 99.99%
Detectable Components
Capacitors, resistors, inductors, beads, crystals, transistors, diodes, FETs, various types of resistors, bile capacitors, detectable connectors, integrated circuit chips, and more.
Standard Accessories
  • Barcode Scanner
  • Printer
  • Fingerprint Recognition System
Main Configuration
  • Bar-code Scanner
  • X-ray System
  • Label Printer
  • Finger Print Recognition System
Key Features & Benefits
Automatic inspection with no program switching required for different components
Fast, high-accuracy chip counting reduces labor costs
Non-destructive counting prevents chip damage or loss
Compatible with 7"~17" tape & reels
Automatic integration with ERP & MES systems and storage systems
Shielded cabinet protection ensures X-ray safety
Fast counting speed: 12~13 seconds per reel
Inspection accuracy: ≥99.9%
Minimum package size: 01005
One-button operation for automatic counting
Hand-operated label reading with new label printing and sticking
Special advantage for incoming inspection and inventory management
Real-time radiation leakage monitoring
Our Services
  • Product project analysis and detection solutions
  • Free sample detection testing
  • Professional detection solutions
  • Skilled jig design services
  • Shipping/delivery information checking service
  • One year guarantee with lifetime maintenance promise
  • 24-hour email response time
Frequently Asked Questions
How about the package? Is it safe during delivery?
All X-ray inspection machines are packed in standard strong wooden cartons to ensure safe shipping.
Do you provide warranty? How about after-sales service?
We offer 1-year warranty with free spare parts and lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support for any questions.
If we visit your factory, will you provide free training?
Yes, we warmly welcome you to visit our factory and will arrange free training sessions.

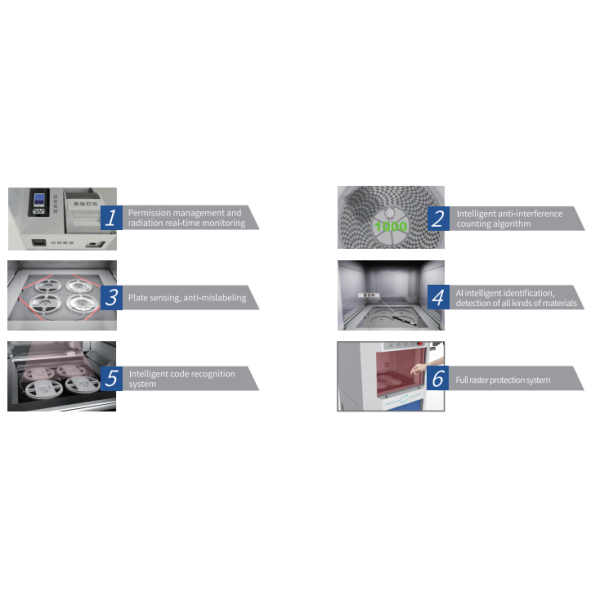

Functional Characteristics
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L

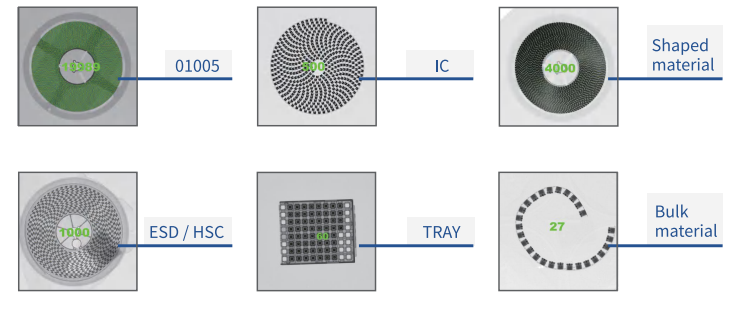

Inspection Images
X-Ray Compenent Reel Counter Reel type Lose Type UNICOMP CX7000L
X-Ray Safety Compliance
All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA-CDRH standard for cabinet x-ray systems states that radiation emission will not exceed 5 millirem/hr at 2" from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times safer than international standards.
