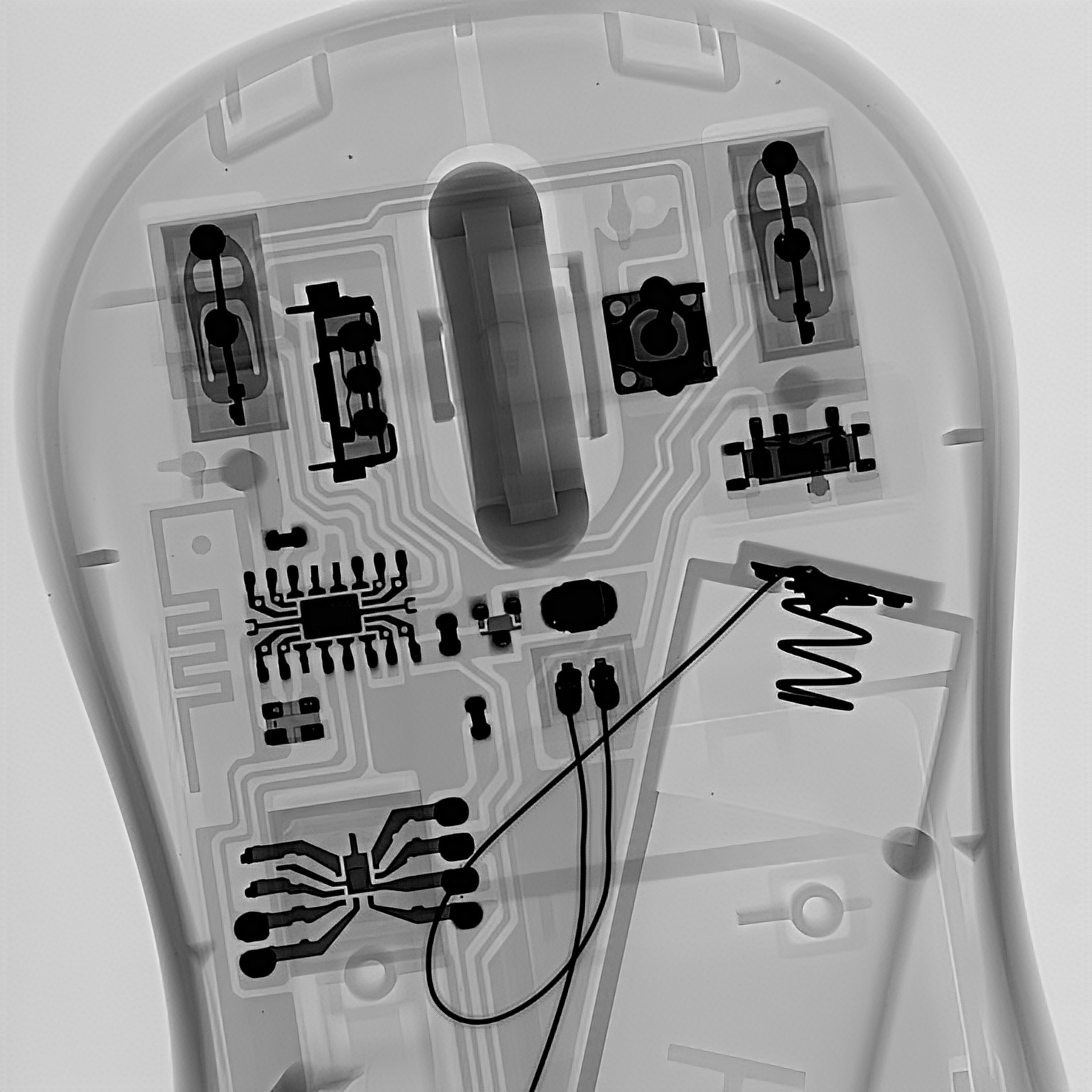

Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Specifications
Supply Ability :
30 sets per month
Model Number :
AX9100MAX
Model :
AX9100MAX
Payment Terms :
L/C,T/T
Footprint :
1450(W)×1765(D)×1835(H)mm
Price :
can negotiate
Pixel :
1536*1536
Certification :
CE, FDA
X-ray Tube Type :
sealed type
MOQ :
1 set
Delivery Time :
15 days
Pixel Size :
84μm
Brand Name :
UNICOMP
Machine Type :
Semiconductor Electronic X-Ray Inspection System
Place of Origin :
China
Voltage :
130kv
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Description
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Advanced X-ray inspection system for electronics IC components and bonding wire analysis with high precision non-destructive testing capabilities. This system is widely deployed for high-precision non-destructive inspection across extensive industrial and semiconductor applications.
Applications
Covers BGA, CSP, flip chips, LED packaging components, fuses, power diodes, multi-layer PCBs, discrete semiconductors, lithium battery assemblies, miniature precision metal castings, automotive electronic connector assemblies, wiring harnesses, and photovoltaic structural parts.
Key Advantages
Benefiting from large inspection stroke, strong X-ray penetration and flexible multi-angle positioning capability, the AX9100MAX fully meets stringent quality control and R&D verification requirements for automotive electronics, new energy, photovoltaics, and high-density microelectronic manufacturing industries.
System Specifications
Footprint1450(W)*1765(D)*1835(H)mm
Machine Weight2400 kg
Power Supply220V±10%, 50/60Hz, 8A
Packaging Dimension1750(W)*2280(D)*2100(H)mm
Packing Weight2600 kg
Power Consumption1.8 kW
X-Ray Tube Specifications
Tube TypeSealed type
Max. Power Output65W
Voltage130kV
Focus Spot Size≤7μm
Imaging System
DetectorHigh Resolution FPD
Pixel Size84μm
Effective Detection Area129*129mm
Frame Rates30fps
Pixel Matrix1536*1536
System Magnification1600X
Software Features
  • One-click zoom in & out with fast automatic navigation of ROI region
  • Fixed-point following during FPD tilting
  • Table automatic following while axis tilting separately
  • Algorithms for image super-resolution reconstruction
  • Intelligently improve overall image clarity with one-click
  • Automatic images comparison
  • Intelligently adjust overall image contrast with one-click
  • Variety of filter processing algorithms including sharpening, enhancement, color reversal, and denoising image preprocessing functions
Motion Control System
Movement Control MethodDual Joystick, Keypad & Mouse
Max. Loading SizeФ620mm
Max. Inspection SizeФ500mm
Tilting InspectionMaximum 60° (Tube & Detector)
Objective StageHorizontal Rotation 360°
Industrial PC Configuration
Monitor (Dual)27" 4K HD display
Operating SystemWindows 10 64bit
Hard Disk1TB
RAM16G
CPU ModelIntel i7 Processor
Safety & Security Features
  • Hand-operated door
  • Electromagnetic interlock, warning light and real-time radiation leakage monitor
  • Fingerprint access management system with password access support
  • X-Ray safety: <1μSv/h (Meets all international standards)
System Visual Reference

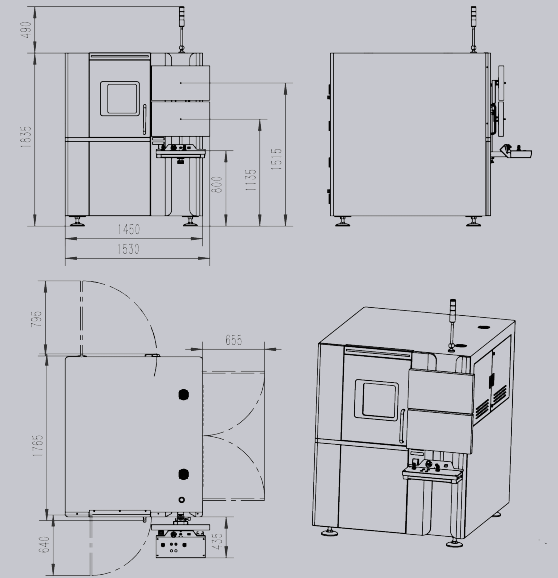

Dimensions and Appearance
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Dimensions and external appearance diagram
Functions and Features
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
Functional features and capabilities overview

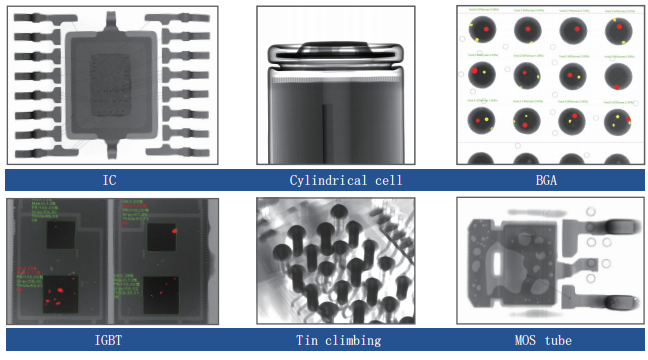

Inspection Image Sample
Clear Inner Structure Scanning Mouse Scroll Wheel Defect Inspection X-ray AX9100max Unicomp
High magnification PCB component analysis with X-ray technology
Specifications are subject to change without notice. All trademarks are the property of the system maker.
