Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet
Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet
Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet
Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet
Specifications
Model Number :
UNX4343
MOQ :
1 PCS
Delivery Time :
30 days
Payment Terms :
T/T,L/C
X-ray tube :
80KV 350W
Price :
USD
Belt speed :
5-30m/min
External Interfaces :
1*LAN，2*USB
Supply Ability :
30 sets per month
Dimensions :
3845(L)×1082(W)×2220(H)mm
Brand Name :
Unicomp
Certification :
CE
Place of Origin :
China
Packaging Details :
Unicomp package
Description

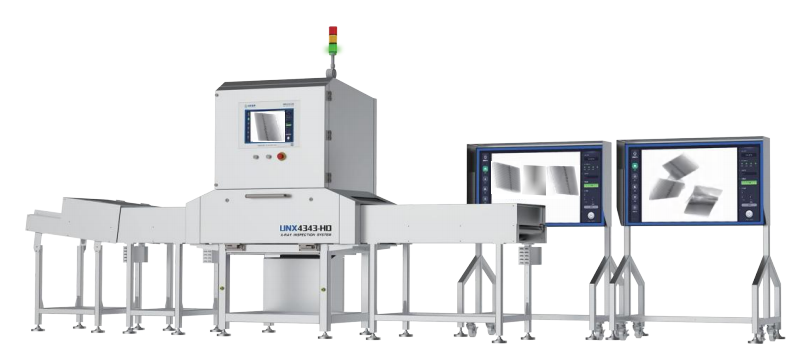

UNX4343 High Sensitivity X-ray Scanner for Tiny Bones in Fish Meat Fillet
High resolution X-ray inspection system for detecting fish bones inside frozen fast food products. Features 0.099mm HD detector, AI imaging technology, and IP66 protection rating. Designed for fish fillet, surimi, and fresh fish inspection applications.
Technical Specifications
Product Name UNX4343

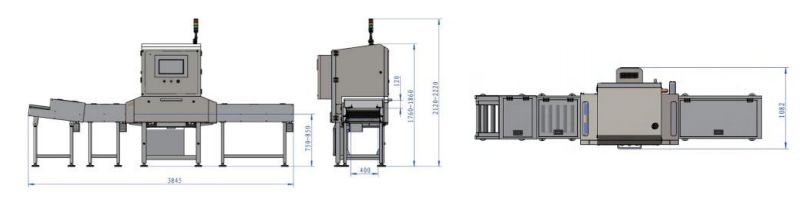

Dimensions 3845mm × 1082mm × 2220mm (L×W×H)
Machine Weight 1000kg
X-ray Source 80kv 350W
X-ray Detector 0.099mm
Tunnel Size W×H=40×12mm
Belt Speed 5-30m/min
Radiation Safety ≦1μSv/h
Belt Material Food-grade PU
Max Load 10kg
Protection Rating IP65 (Tunnel & below)
External Interfaces 1×LAN, 2×USB
Display Language Chinese / English
Operating Environment 5-40°C, RH 30-90%, non-condensing
HMI 17.3" LCD Touchscreen, Windows 10
Detection Sensitivity (Empty Belt) SUS ball ≥φ0.3mm, SUS wire ≥φ0.2×2mm, Glass ball ≥φ1.0mm, Ceramic ball ≥φ1.0mm
Key Features & Applications
  • Easy Operation & Industrial Design: One-button start/stop with customizable product parameters for fast scenario switching. IP66 waterproof and dustproof design adapts to complex food workshop environments.

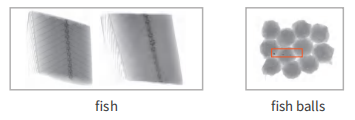

  • High-Precision Foreign Body Detection: HD X-ray imaging system automatically identifies metal, ceramic, glass, bone, and shell contaminants with industry-leading accuracy.
  • Flexible Management & Data Statistics: Stepless sensitivity adjustment, intelligent alarm management, complete data statistics, and full-process detection data traceability.
  • AI Intelligent Detection Algorithm: Self-developed AI deep learning algorithm with strong anti-interference capability reduces false and missing detection rates.
  • Wide Application Scenarios: Specifically designed for food safety inspection in aquatic products and other food materials, supporting high-speed online detection for automated production lines.
Training & Services
We provide comprehensive technical support including factory training, project analysis, detection solutions, and free sample testing. Our services include skilled jig design, shipping information checking, one-year guarantee, lifetime maintenance support, and 24-hour email response.
Frequently Asked Questions
Q: How about the packaging? Is it safe during delivery?
A: All X-ray inspection machines are packed with standard wooden solid cartons to ensure safe shipping.
Q: Do you provide warranty? How about the after-sales service?
A: We offer 1-year warranty for spare parts and lifetime technical support. Our professional after-sales team provides assistance videos and comprehensive support.
Q: If we visit your factory, will you provide free training?
A: Yes, we warmly welcome factory visits and will arrange free training sessions.
Technical Diagrams & Images
Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet Unicomp UNX4343 High sensitivity Unicomp X ray scan tiny bones in the fish meat fillet
