Specifications
Brand Name :
UNICOMP
Model Number :
AX9100
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T,L/C
Supply Ability :
30 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Name :
X-ray Inspection Machine
Application :
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Tube Voltage :
130KV
Industry :
Electronics Industry
Size :
1485(L)x1420(W)x1710(H)mm
X-ray Leakage :
< 1uSv/h
Weight :
2070kg
Power Consumption :
1.2kW
Description

CE/FDA Certificated Unicomp AX9100 X-Ray Inspection Machine For Computer Mother Board Chipset BGA Soldering Void Qual


Features:


● 130KV 7μm X-Ray Sealed tube.
● High speed & Millions pixels high resolution FPD.
● 1000X magnification, high-definition real-time image.

● One-button operation with 2.5D image display.
● Off-line programming function, navigation mode detection.
● 7 axis linkage, 70 degree tilt detection.



Applications:


● SMT, BGA, CSP, Flip Chip, LED Detection.
● Semiconductor, Packaging components, Battery Industry.
● Electronic components, Auto parts, Photovoltaic Industry.
● Aluminum Die-casting, Moulding Plastic.
● Ceramics, Other Special Industries.



Item Definition Specs
System Parameters Size 1485(L)x1420(W)x1710(H)mm
Weight 2070kg
Power 220V±10% 50Hz/60Hz 5A
Power Consumption 1.2kW
X-ray Tube Type Closed
Max.Voltage 130kV
Max.Power 65W
Spot Size 7μm
X-ray System Intensifier FPD
Monitor 27 ‘’4K HD display
System Magnification 1600 X
Detection Region Max.Loading Size 720*600[mm]
Max.Inspection Area 590mm x 510mm
X-ray Leakage <1μSv/h

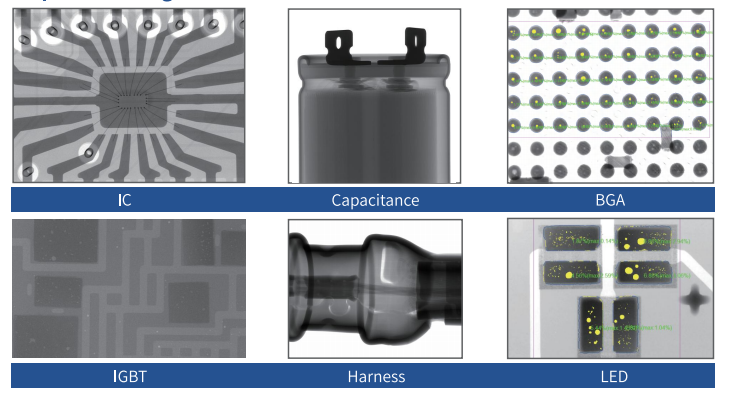

Test Images:


<7μm Micro Focus 41X Magnification IC Semiconductor Component Xray Equipment AX9100 Unicomp CNC Automatic Inspection
