Heavy Big Parts Welds Universal NDT X Ray Equipment Steel Cylinder Inspection
Heavy Big Parts Welds Universal NDT X Ray Equipment Steel Cylinder Inspection
Specifications
Brand Name :
UNICOMP
Model Number :
UNC225
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
can negotiate
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Wooden Case, Waterproof, Anti-collision
Load Weight :
100 kg
Tube Voltage :
225KV
Work Environment :
5-40° ≤80%HR
Size :
2230(L)x1582(W)x2478(H)mm
Resolution :
2.8LP/mm
Weight :
5T
Description

Heavy Big Parts Welds Universal NDT X Ray Equipment Steel Cylinder Inspection

A special challenge in the inspection of heavy and big parts is the difficult part-handling. An efficient solution increases the throughput while reducing the costs. To provide the most convenient solution VisiConsult developed a revolutionary top loader version of the renewned UNC225.

Especially for very big and heavy parts like steel castings the handling can become a tedious task that slows down the complete inspection process and costs a lot of money. To solve this problem Unicomp developed the UNC225 with a completely new approach: The angled doors allow parts to be lowered through the roof of the cabinet by a crane.

Features:

●High reliable and long life,low breakdown


●High definition and resolution FPD


●C-arm fixture design enabling five-axis motion detection(optional automatic lift and descend)


●Multi-functional workstation,360°rotation and shift


●User friendly software design for easy interfacing can facilitate,customized software


●High penetration,Voltage up to 450KV,Maximum penetration thickness up to 80mm for "Fe"


●Detection area:Φ500*800mm


●Loading weight:100KG



Applications:


High Voltage Switch

Aluminum castings, iron castings, auto parts.

Mechanical welding, steel pipe, steel cylinder.

Technical Specifications:

System Parameters Dimensions 2230mm*1582mm*2478mm(L*W*H)
Equipment weight 5T
Power 8KW
Maximum penetration(AL/FE) 150mm/25mm
Detection range Φ500*800mm
Load weight 100kg
Work environment 5-40° ≤80%HR
Install power Three-phase five wire system AC380V
X-ray leakage dose rate ≤1uSv/h
X-ray Generator Tube voltage 225kV
Power 640W/1600W
Focal size 1.0mm/3.0mm
Detector Image area 215mm x 215mm
Resolution 2.8LP/mm
Detector ( Selection FPD ) Image area 250mm x 300mm
Pixel matrix 1792mm*2176mm
Pixel size 139μm
Frame rate 9fps(1x1)30fps(2x2)
Software Functions Image processing Brightness and contrast adjustment; stacking frames; window width and level adjustment; image enhancement, filtering, sharpening, invert, relief and bubble measure;move, zoom in, zoom out; display image scaling; display the current mouse pointer image coordinate and the gray value
Image measurement Distance, radius, polygon, angle measurement; arrows and text labels; save the processed image;
Motion control Setting the camera rotating screen; exposure time; static,dynamic image display and save, video display and save


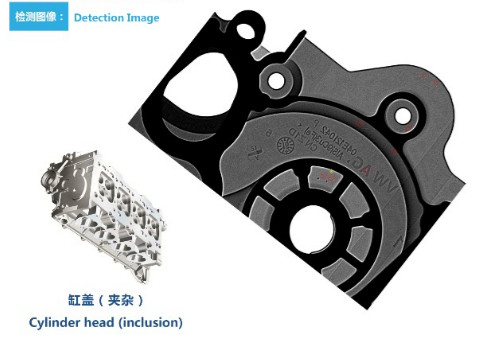

Inspection Images:
