Chipset Lead frame Inner Quality Inspection by Unicomp 5um closed tube AX7900 X Ray Machine


Description:

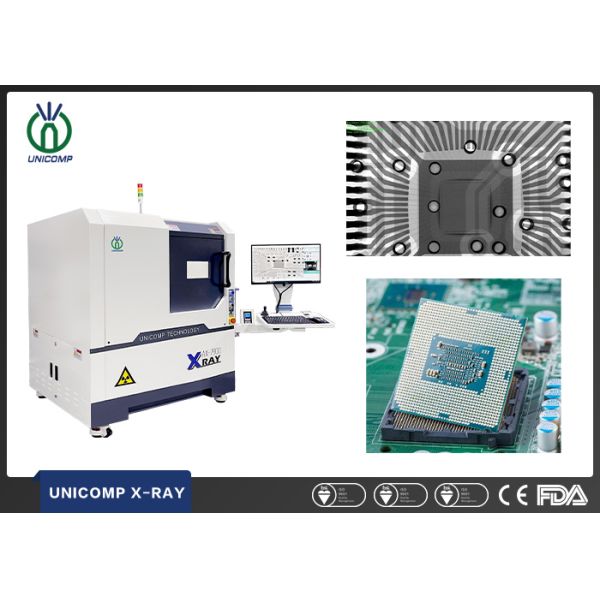

90KV 5μm X-ray tube, FPD Detector. Multi-function workstation, XY multi-axis movement standard with ±60° tilt motion (option). Z axis movement for x-ray tube & FPD to increase/decrease magnification/FOV. Convenient target point positioning system. Multi-function DXI image processing system with XY programming for multiple image inspection routines. Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.



FEATURES:


90KV 5μm X-ray tube, FPD Detector.


Multi-function workstation, X-Y multi-axis movement. ±60° "Arc" motion(Option).


Motion controls include: X/Y table motion plus Z axis tube and detector movement, ±60° tilt motion (option).


Multi-function DXI image processing system.


X/Y programming function for multiple image inspection routines


Max. loading area 600mm x 520mm , max. detection area 505 x 440mm, with ~52X Geometric Magnification.


BGA void/area auto-measurement plus report generation.



APPLICATION:


LED, SMT, BGA, CSP, Flip Chip Inspection.


Semiconductor, Packaging components, Battery Industry.


Electronic components, Auto parts, Photovoltaic Industry.


Aluminum Die Casting, Moulding Plastic.


Ceramics, Other Special Industries

Specifications:

System Summary
Footprint 1215(W)×1325(D)×1700(H)mm
Machine Weight 1240 kg
Power Supply AC 220V, 50/60Hz
Plywood Packing Size 1680(W)×1680(D)×2200(H)mm
Packing Weight 1470 kg
Power Consumption 0.8 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 90kV
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 84μm
Effective Detection Area 129*129mm
Frame Rates 30fps
Pixel Matrix 1536*1536
Geometric Magnification 52X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad & Mouse
Max. Loading Area/Weight 600*520mm / 10kg
Max. Inspection Area 505*440mm
Tilting Angle ±30°
Manipulator 5-axis with X / Y / Z1 / Z2 / T
Industrial PC
Monitor 24’’ FHD LCD Display
System OS Windows 11 64bit
Hard disk 1TB
RAM 16GB
CPU model Intel i7 Processor
Other Features
Energy Saving X-Ray Auto-off when it's out of work over than 5 minutes
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
