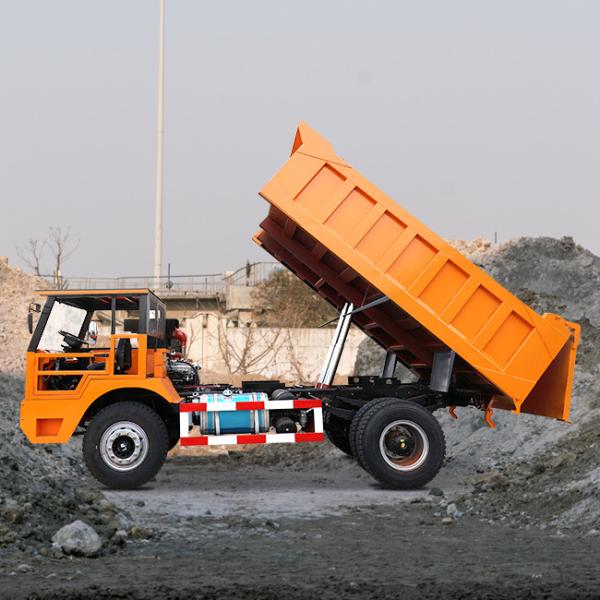

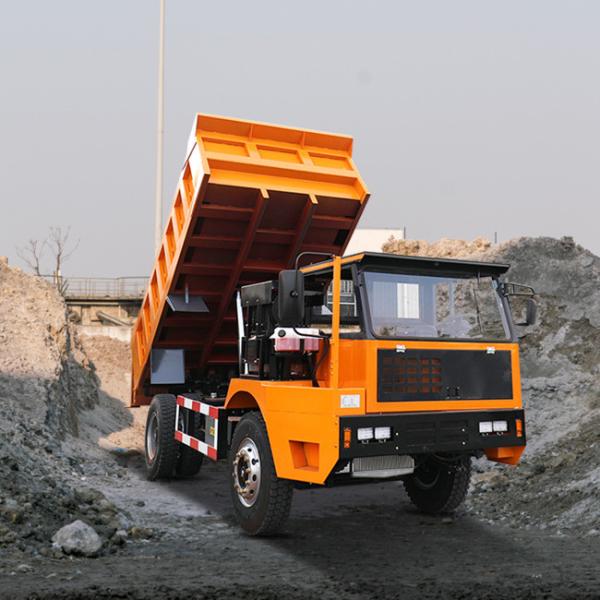

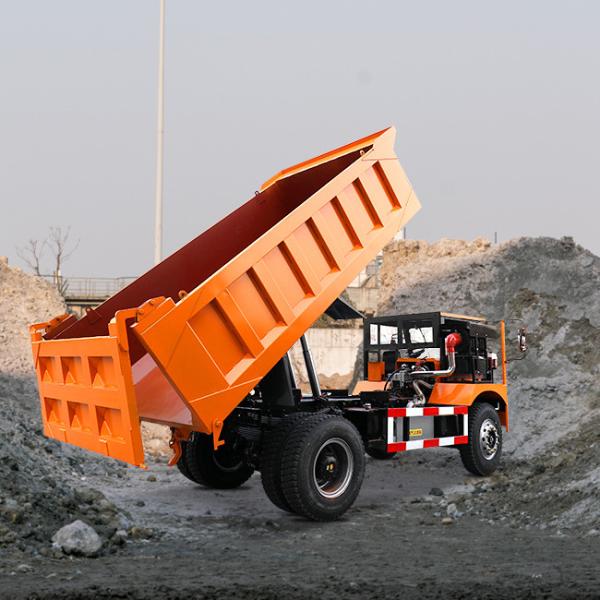

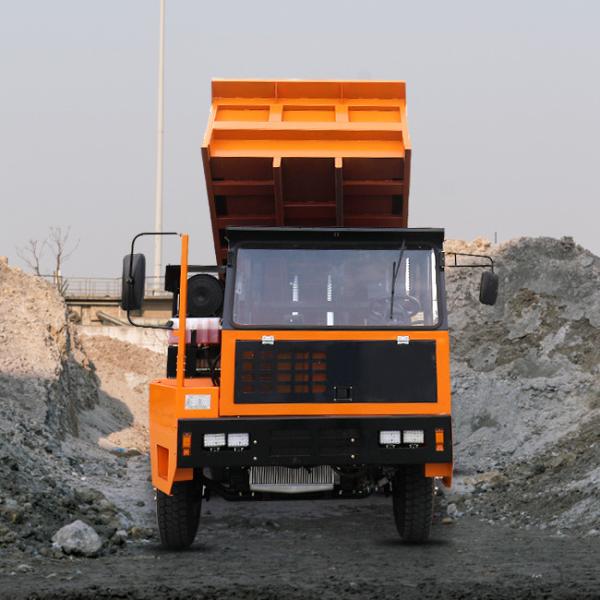

UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
Specifications
Brand Name :
Beijun
Model Number :
UQ-20
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
6-18 days
Packaging Details :
Customized packaging
Engine Model :
YUCHAI Engine with Turbocharge
Engine Power :
290HP
Transmission Model :
FASITE 9JS118
Drive Mode :
4x2
Dimension of Bottom Spring Plate :
Length 90mm, Width 16mm
Cabin :
Canopy
Type of Bucket :
U type
Fuel type :
Diesel
Condition :
New
Description

Product parameters of 20Ton Underground Mining Dump Truck

It is our company's main product,which are widely used in undergrand mining, Can be used to transport ore, Mineral powder and other heavier goods, which is popular in many countries and has won good reputation. The articulated underground mining truck has a high power to weight ratio and good driving speed on slopes. The computer-driven drilling rig control system (RCS) can record maintenance and diagnostic information, and display this information on the display screen in the cab. It is a powerful equipment that is very suitable for large-scale mining and construction. It has fast transportation speed and high efficiency, and can smoothly navigate through narrow tunnels. It combines inherent reliability, higher carrying capacity, and the ability to travel at high speeds on slopes, greatly improving productivity.

Model UQ-20
Engine Model YUCHAI Engine with Turbocharge
Engine Power 290HP
Total Dimension 6200*2400*2450mm
Transmission Model FASITE 9JS118
Transmission Gear 8 Forward Gear, 1Back Gear,Rear High Speed Controller
Drive Mode 4x2
Front Axle Model Styer Axle
Rear Axle Model Styer Axle
Tire Model 10.00-20 Radial steel tire,
Rear Double Tyre One Side,
No.of Bottom Spring Plate Front 11 PCS, Rear 12 PCS
Dimension of Bottom Spring Plate Length 90mm, Width 16mm
Size of the Bucket:Length×width×height 4500mm*2400mm*1000mm
Type of Bucket U- Type
Thickness of Bucket Steel Plate bottom 10mm side 8mm
Unloading Type Hydraulic Double Top Dump
Steering Type Hydraulic power steering
Braking Type Air Brake
Cabin Canopy
Driving Position Left Hand Drive
Cooling sytem Standard Water Cooling System
Loading Capacity 20 Tons


UQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE TransmissionUQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE TransmissionUQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE TransmissionUQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE TransmissionUQ-20 290HP Underground Mining Truck With Turbocharge Engine And FASITE Transmission
