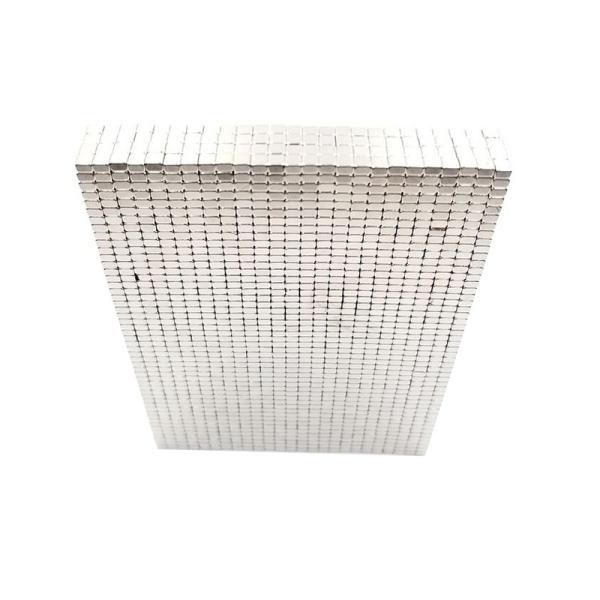

Zinc Coated Sintered NdFeB Magnet for Traction Motors - 150°C Thermal Rating
Zinc Coated Sintered NdFeB Magnet for Traction Motors - 150°C Thermal Rating
Specifications
Brand Name :
UNMAG
Place of Origin :
China
Packaging Details :
Carton Box
Delivery Time :
20-25days
Certification :
ISO9001, IATF16949, ISO14001
Coating :
Nickel,NiCuNi,Zinc,Epoxy Etc
Working Temperature :
80~220°C
Magnetic Orientation :
As Customization
Application :
New Energy Cars,Wind Power Generation,Servo Motors,Traction Motors
Shape :
Block,Arc,Ring,Customized Shape Magnet
Material :
Neodymium Iron Boron
Grade :
N35-N52, 35M-50M, 35H-48H, 30SH-45SH...
Description
Meta Title: Zinc-Coated Sintered NdFeB Magnet | Traction Motor Magnet | High Durability
Meta Description: ISO-certified zinc-coated sintered NdFeB magnets for traction motors. Superior corrosion resistance, 150 °C thermal rating, ±0.05 mm precision. Get instant pricing and 7-day prototypes.
  1. Product Overview
    Engineered for the harsh environment of traction motors, our zinc-coated sintered NdFeB magnets deliver maximum magnetic energy (33–52 MGOe) combined with outstanding corrosion resistance and 150 °C continuous operation. A uniform 8–12 µm zinc layer passes 1 000 h salt-spray, ensuring long-term reliability in EV drivetrains, rail traction, and heavy-duty e-motors.
  1. Key Benefits
• Zinc Coating 8–12 µm – 1 000 h salt-spray per ASTM B117; cost-effective vs. Ni-Cu-Ni.
• High Reliability – Cpk ≥1.67, PPAP Level 3 available.
• 33–52 MGOe Energy – N35SH–N52SH grades for compact torque-dense motors.
• 150 °C Thermal Rating – stable flux at EV inverter switching frequencies.
• ±0.05 mm Tolerance – press-fit into rotor laminations, zero grinding.
• 7-Day Prototypes – laser-cut tooling, fast sintering cycle.
  1. Technical Data (Schema Table)
Property N42SH N48SH N52SH
Remanence (Br) 12.9–13.3 kG 13.8–14.2 kG 14.3–14.8 kG
Coercivity (Hcj) ≥ 20 kOe ≥ 20 kOe ≥ 20 kOe
Max Energy (BH)max 40–43 MGOe 46–49 MGOe 50–52 MGOe
Max Operating Temp 150 °C
Coating Blue/white zinc 8–12 µm
Salt-Spray ≥ 1 000 h (ASTM B117)
Tolerance ±0.05 mm, ±0.1° angles
Certifications ISO 9001, ISO 14001, IATF 16949, RoHS, REACH
  1. Traction-Motor Applications
• EV traction motors – compact, high-torque rotors.
• Hybrid powertrains – reliable under vibration & thermal cycling.
• Rail & metro drives – long service life in humid climates.
• E-bikes & scooters – lightweight, energy-dense performance.
