UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine
Specifications
Type :
Multi-Function Packaging Machine, Sealing Machine,Packaging Machine
Condition :
New
Function :
Filling, Sealing
Application :
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type :
Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material :
Plastic
Automatic Grade :
Automatic
Driven Type :
Pneumatic
Voltage :
220V
Power :
2.2KW, 220V,50/60HZ,2.2Kw
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
UMEO
Model Number :
Umeo-420Y
Dimension(L*W*H) :
L1220*W1015*H1350mm
Certification :
CE Certification
Bag Length :
80-300mm
Bag width :
60-200mm
Width of packing film (Max.) :
420mm
Packing speed :
10-60 bag/min
Measuring range :
1000ml (Max.)
Roll Dia. of packing film :
320mm
Film material :
Complex film:OPP/CPP,OPP/PE,Al.Film etc.
Film thickness :
40-100um
After-sales Service Provided :
Engineers available to service machinery overseas
Selling Units :
Single item
Single volume  :
5 cm 3
Single gross weight :
680.0 kg
Package Type :
Inner wrap PE film,external with reinforced non-fumigation plywood case.
MOQ :
1 Sets
Price :
US $8500.00
Description

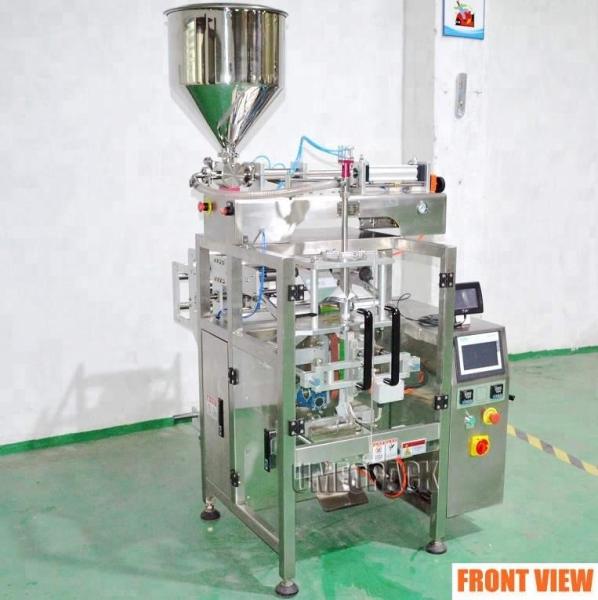

liquid pouch packing machine

Product Description

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

Application

liquid pouch packing machine is suitable for packing nonviscous liquid,for example: shampoo,shower gel,skin lotion,laundry detergent,sauce,reagent,dyes and similar liquid or medium viscosity of paste products.

Specification

ModelUmeo-420Y
Air consumption 0.8Mpa,0.4m³/min
Bag length 80-300mm
Bag width 60-200mm
Width of packing film(max) 420mm
Packing speed 10-60 bag/min
Measuring range 1000ml (Max.)
Roll Dia. of packing film 320mm
Film material Complex film:OPP/CPP,OPP/PE,Al.Film etc.
Film thickness 40-100um
Power 220V,50/60HZ,2.2Kw
Dimension L1220*W1015*H1350mm
N.W.

550Kg

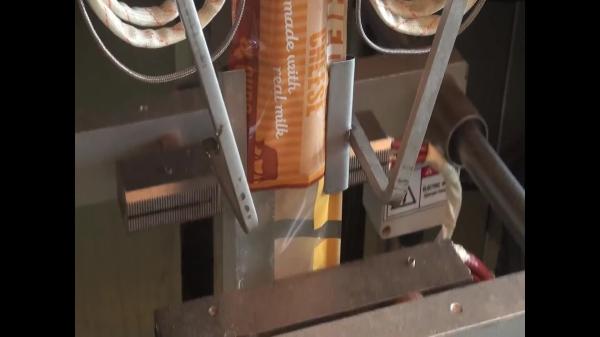

Detailed Images

UMEO always pays much more attention to every part of each packing machine

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

More InformationCLICK HERE >

Related Products

UMEO is able to provide different packing system to solve your any packing problems

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

Vertical Packing Machine >Granule Packing Machine >

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

Powder Packing Machine >Liquid Packing Machine >

Liquid / Sauce: Shampoo,Fruit Juice,Water,Laundry Detergent,Body Wash,Tomato Sauce,Jam,Soy Sauce etc.

Powder: Flour,Milk Powder,Bean Powder,Wheat Flour,Coffee Powder,Starch etc.

Granule: Puffed Food,Dried Fruit,Candy,Dumplings,Frozen Meatball,Chocolate,Bean, Spice,Hardware items,Medicines etc.

More InformationCLICK HERE >

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

01 Triangle bag

02 Linking bag

03 Stick bag

04 Three-side sealling bag

05 Four-side sealling bag

06 Pillow bag

07 Origuchi bag

08 Gusset bag

More InformationCLICK HERE >
Company Information

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

More InformationCLICK HERE >
Packaging & Shipping

UMEOPACK China one stop solution factory sachet mineral liquid water pouch packing butter packaging machine

Our Services

Pre-sales Service:

Step 1: One on one free project consulation,designing and free cost evaluation.

Step 2: Production line recommendation.

Step 3: Order confirmed.

Medium-sales Services:

Step 4: Deposit in and machine production on.

Step 5: Qualified raw material suppliers ( fabric,solutions,films,stickers etc) introduced.

Step 6: Raw material sample purchased for trial running.

Step 7: Machine inspection,installation and operation training conducted.

Step 8: Wipes production experience provides.

Step 9: Machine settled for standard plywood case packaging.

Step10:Balance received and delivery machine.

After-sales Services:

Step11: Machine transportation.

Step12: Long-distance guidance for installation and operation or engineer available for oversea.

Step13: Life-long machine maintenance service and warranty.
