Specifications
Model NO. :
Bare Copper Earthing Cable
Material Shape :
Round Wire
Range of Application :
Overhead and Ground
Certification :
ISO9001, CE, SGS TUV
Brand :
Ume
Third Party Inspection :
Accepted
Sample :
Free
OEM :
Support
Warranty :
24 Months
Transport Package :
Drum
Specification :
up to 8.0mm
Trademark :
UME
Origin :
China
HS Code :
7312100000
Supply Ability :
7000km Per Month
Type :
Bare
Conductor Type :
Stranded
Application :
Overhead
Conductor Material :
Copper
Sheath Material :
None
Insulation Material :
Bare
Samples :
US$ 2/Meter 1 Meter(Min.Order) | Request Samp
Description

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance

Applications
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications.
Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.


Specifications
B-1 Hard-Drawn Copper Wire.
B-2 Medium-Hard Copper Wire.
B-3 Soft or Annealed Copper Wire.
B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
B-33 Tinned Conductors
B-787 19 Wire Combination Unilay-Stranded Soft copper wire.

Product Parameters

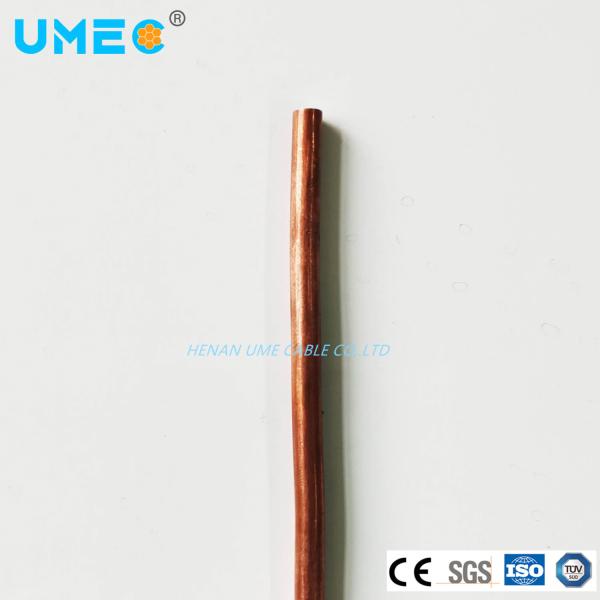

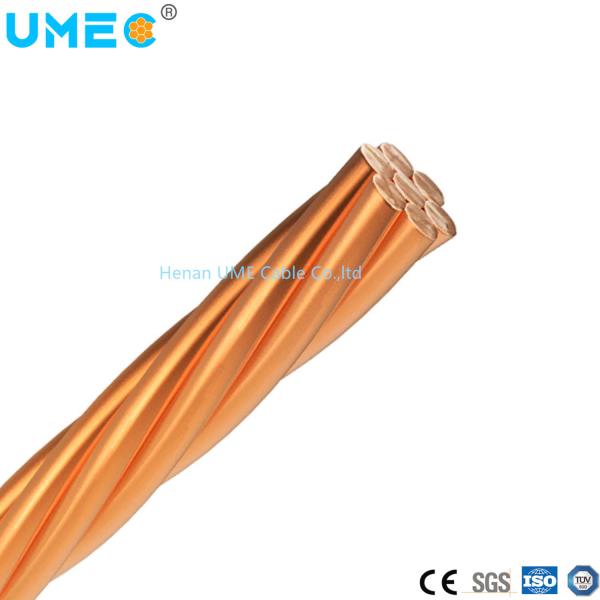

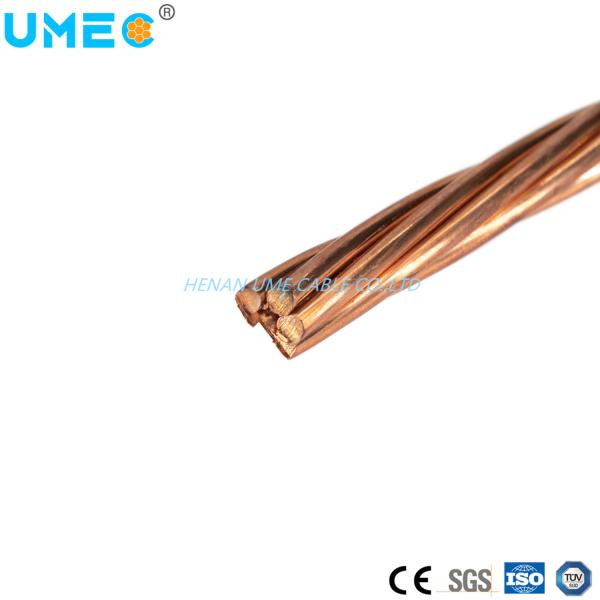

Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
Size Section Number of Wires Wire Diameter Total Diameter Resistance DC @ 20°C Minimun Elongation in 10 In. Wire before Stranding (254 mm) Total Weight
AWG / MCM Cmil mm² mm mm Ω/ km % kg / km
22 640 0.324 7 0.243 0.73 54.2 15 2.97
20 1,020 0.517 7 0.307 0.92 34.0 20 4.69
18 1,620 0.821 7 0.386 1.16 21.4 20 7.46
16 2,580 1.307 7 0.488 1.46 13.5 20 11.87
14 4,110 2.083 7 0.615 1.85 8.44 25 18.87
12 6,530 3.309 7 0.776 2.33 5.31 25 30.00
10 10,380 5.26 7 0.978 2.93 3.34 25 47.72
8 15,510 7.859 7 1.20 3.59 2.24 25 75.86
6 26,240 13.3 7 1.56 4.67 1.32 25 121
4 41,740 21.15 7 1.96 5.88 0.831 25 192
2 66,360 33.62 7 2.47 7.42 0.523 25 305
1 83,690 42.41 19 1.69 8.43 0.415 25 385
1/0 105,600 53.49 19 1.89 9.47 0.329 25 485
2/0 133,100 67.43 19 2.13 10.6 0.261 25 611
3/0 167,800 85.0 19 2.39 11.9 0.207 25 771
4/0 211,600 107.2 19 2.68 13.4 0.164 30 972
250 250,000 127 37 2.09 14.6 0.138 25 1,149
300 300,000 152 37 2.29 16.0 0.116 25 1,379
350 350,000 177 37 2.47 17.3 0.0994 25 1,609
400 400,000 203 37 2.64 18.5 0.0866 30 1,838
500 500,000 253 37 2.95 20.7 0.0695 30 2,298
600 600,000 304 61 2.52 22.7 0.0578 25 2,758
700 700,000 355 61 2.72 24.5 0.0495 30 3,216
750 750,000 380 61 2.82 25.3 0.0463 30 3,447
800 800,000 405 61 2.91 26.2 0.0434 30 3,676
900 900,000 456 61 3.09 27.8 0.0386 30 4,136
1,000 1,000,000 507 61 3.25 29.3 0.0347 30 4,596
Certifications
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance
UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

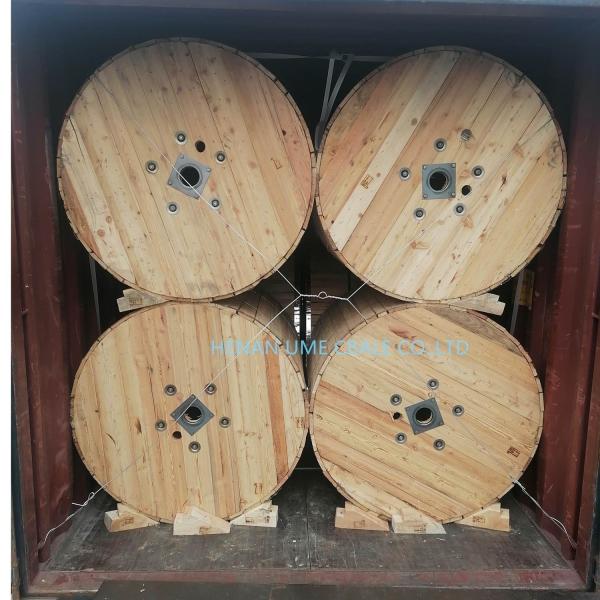

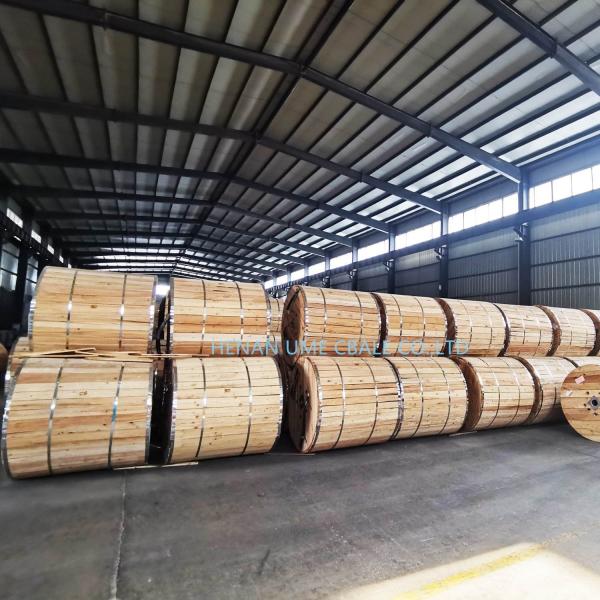

Packaging & Shipping
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance

Testing

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

  • Raw material inspection and test
  • Production process test
  • Unqualified product control
  • Regular test and examination
  • Finished product inspection
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance

Customer Visit

8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance

More Products
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance
8.0mm Copper Conductor Bare Copper Earthing Cable for Stable Grounding Performance

Company Profile
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.
UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with a most competitive price within the market.
