Product Description

1. Application

2. Description

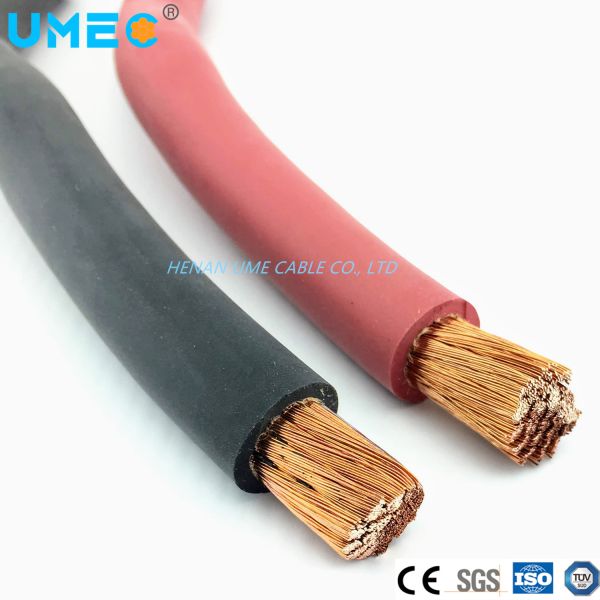

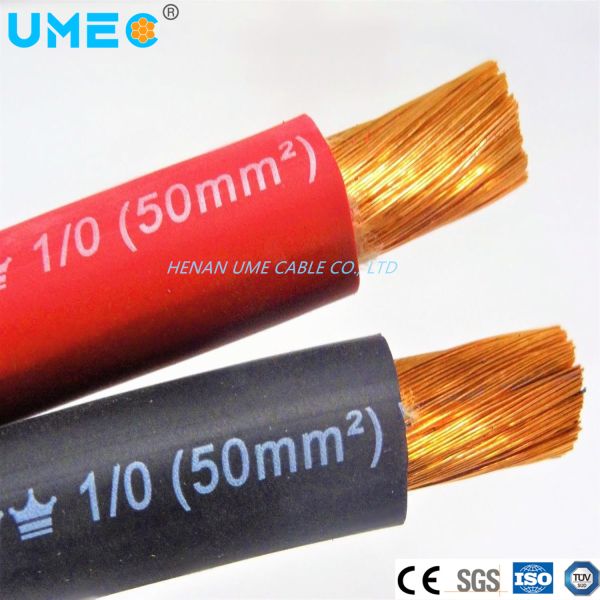

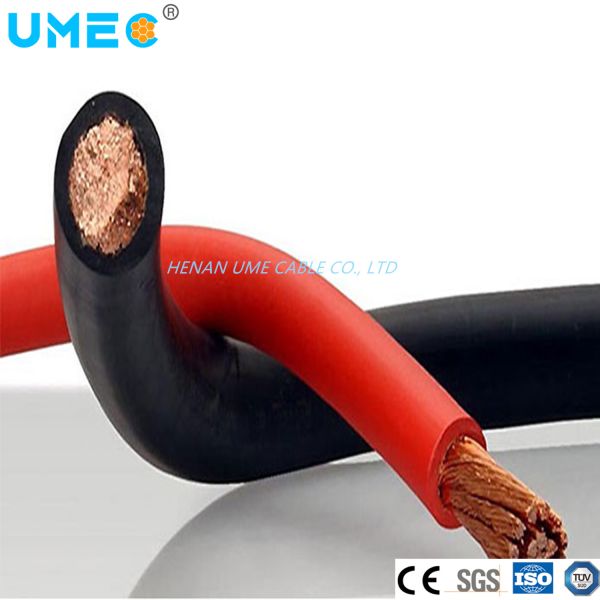

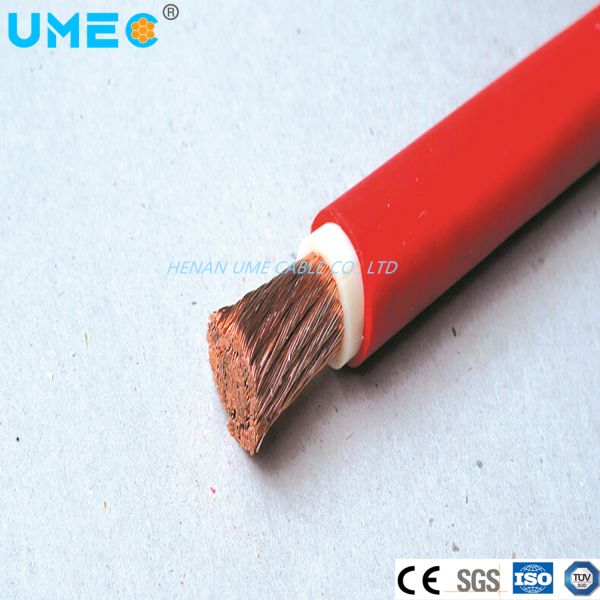

This 50mm² (1/0 AWG) welding cable is designed for heavy-duty welding applications, featuring high-purity stranded copper conductors for excellent conductivity and low voltage drop. The outer layer is made of premium rubber insulation, which is oil-resistant, ozone-resistant, weather-resistant, and highly flexible for easy handling in tight spaces and frequent movement. Rated at 0.6/1kV, it provides reliable power transmission while resisting abrasion, cuts, and mechanical damage. Available in red and black for positive/negative circuit identification, it meets CE, SGS, ISO, and TUV standards for quality and safety.

3. Specification

- Conductor: 50mm² (1/0 AWG) bare copper, finely stranded for maximum flexibility

- Insulation: EPR/EPDM rubber compound with heat, oil, ozone, and abrasion resistance

- Voltage Rating: 600/1000V AC/DC, suitable for all standard welding machine outputs

- Construction: Single-core, round, flexible design

- TemperatureRating: 90℃ continuous operation, withstanding short-term welding heat exposure

- Certifications: CE, SGS, ISO 9001, TUV certified for safety and quality

- Customization: Available in custom lengths, colors, and packaging to meet requirements

Product Parameters

Parameter	Specification
Cross-sectional Area	50 mm² (1/0 AWG)
Conductor Material	High-purity stranded bare copper
Insulation Material	EPR/EPDM rubber (heat-resistant, oil-resistant)
Rated Voltage	0.6/1 kV
Conductor Resistance (max at 20℃)	≤0.387 Ω/km
Operating Temperature Range	-40℃ ~ +90℃ (continuous), up to 120℃ short-term
Outer Diameter	Approx. 15.1 mm
Color Options	Red, Black (customizable)
Standards Compliance	IEC 60245, CE, SGS, ISO 9001, TUV
Flexibility	Highly flexible for easy coiling and routing
Application Type	Welding machine leads, battery cables, temporary power

HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!

Production:

• Raw material inspection and test
• Production process test
• Unqualified product control
• Regular test and examination
• Finished product inspection

UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.

UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
