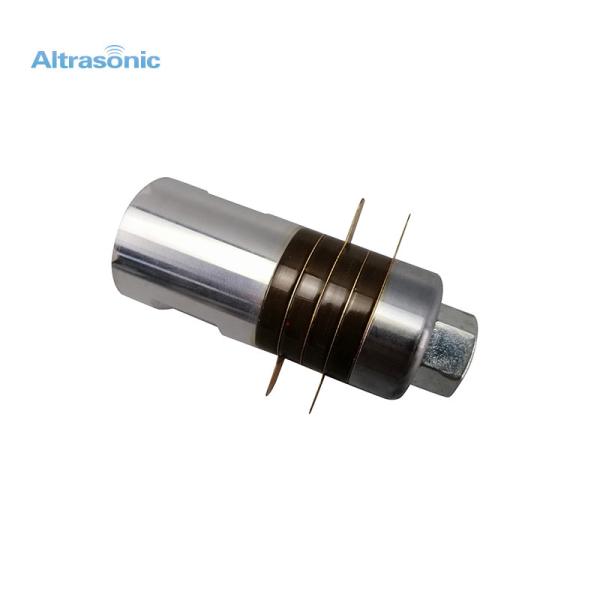

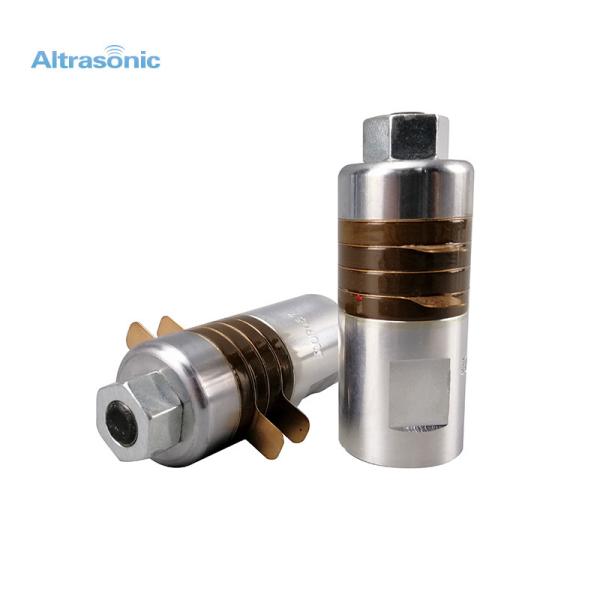

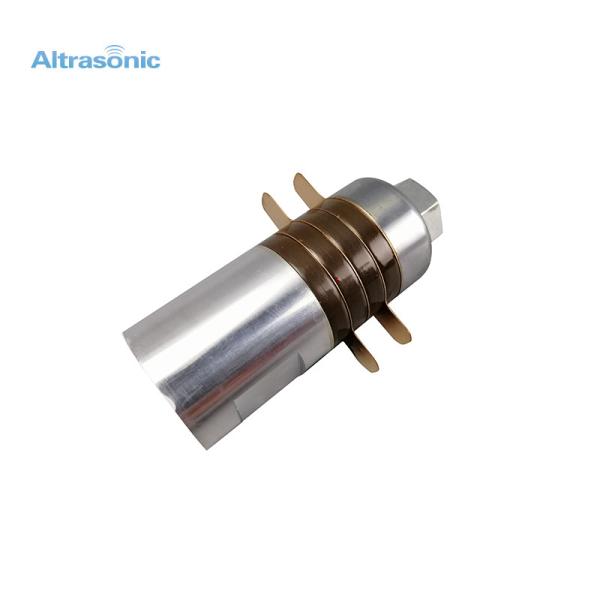

50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
Specifications
Brand Name :
Altrasonic
Model Number :
HS-3050-4Z
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pieces/month
Delivery Time :
7 workdays after receipt of the full payment.
Packaging Details :
Packed in carton
Frequency :
50K
Output Power :
600Watt
Joint Bolt :
M18
Ceramic Disc Diameter :
30 Mm
Capacitance :
5.5-6.2nF
Qty of ceramic :
4pcs
Description

50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt

Description:

The transducer is composed of vibrators and booster, which function is to convert electrical signals into mechanical vibration signals, and to realize the conversion of electrical energy to mechanical energy, which is also one of the most important factors in ultrasonic welding technology.

Specification:

Mode HS-3050-4Z
Frequency 50kHz
Power 600w
Joint bolt M8
Ceramic disc Diameter 30mm
Quantity of Ceramic discs 4pcs
Capacitance 5.5-6.2nF

Competitive advantages:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of

piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will

identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

5. The piezoelectric ceramic chip can give a strong and stable output.

Detailed Images:

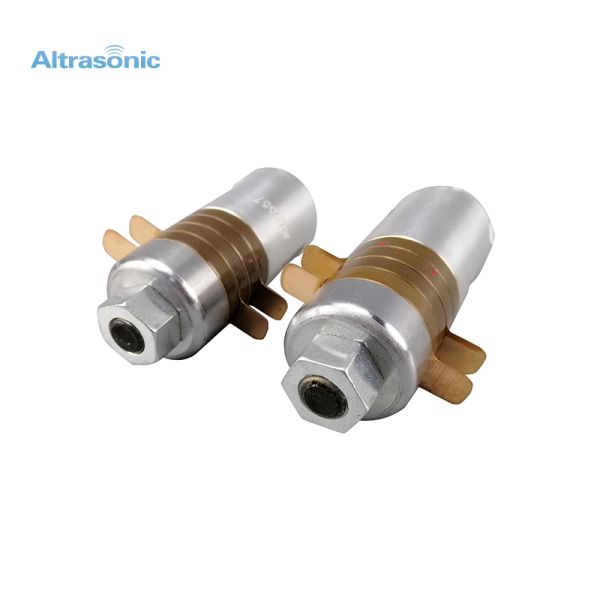

50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt

50kHz 600w Ultrasonic Welding Transducer With M18 Joint Bolt
