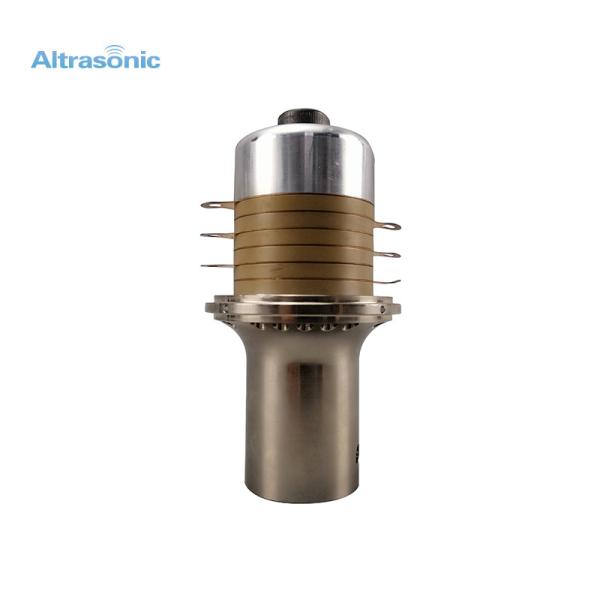

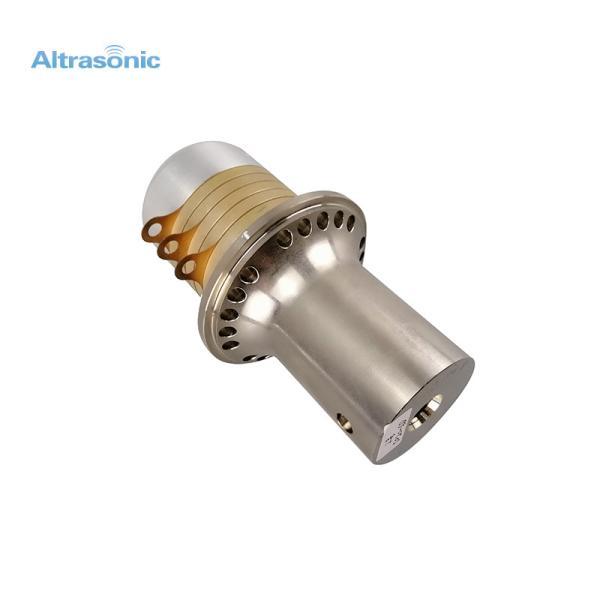

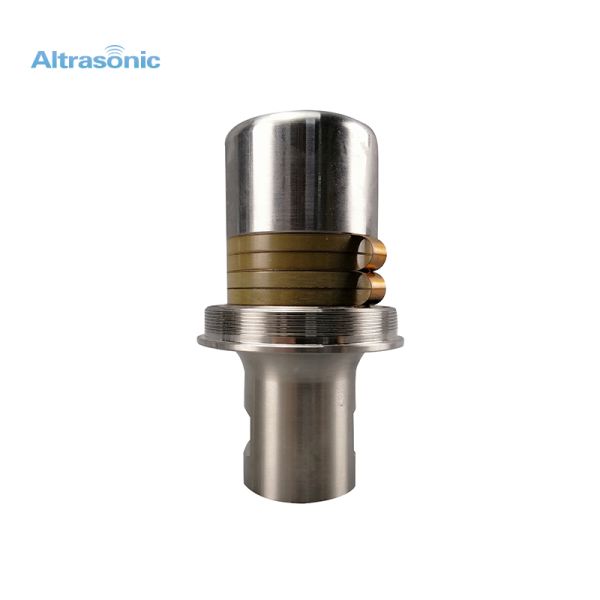

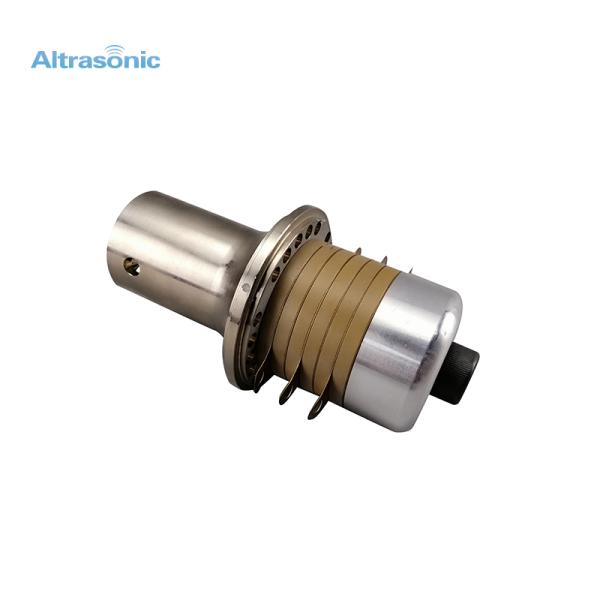

50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
Specifications
Brand Name :
Altrasonic
Model Number :
HS-5020-6D
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
5,000 units per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Joint bolt :
1/2-20UNF
Ceramic diameter :
50mm
Application :
Welding
Qty of ceramic :
6pcs
Capacitance :
19-21nF,22.5-25nF
Power :
2000watt
Amplitude :
12um
Warranty :
1 Year
Frequency :
20kHz
Description

2022 New Plastic Welding Ultrasonic Ceramic Transducer

Specifications:

Model

HS-5020-6D

Frequency

20khz

Output power

2000watt

Joint bolt

 1/2-20UNF

Ceramic disc Diameter

50mm

Quantity of Ceramic discs

6pcs

Amplitude

12um

Application

Welding

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applications:

Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.

We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.

50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt50mm Dia Ultrasonic Ceramic Transducer For Plastic Welding 20Khz 2000 Watt
