Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
Specifications
Brand Name :
ALTRASONIC
Model Number :
HS-M20
Certification :
CE
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
Within 25 weekdays after receipt total amount
Packaging Details :
Carton or Wooden Case
Item No. :
BT40 Spindle
Frequency :
20kHz
Power :
500W
Amplitude :
10um
Speed :
3000r/min(more than 3000r/min need do dynamic balance)
Matching tool :
carbide end mill head Ф1-Ф1m; disk cutter Ф50
Power sadjusting :
Step or Continuous
Generator :
Digital generator
Product shape :
BT40 milling machine handle
Voltage :
220V/380V, 220V/50HZ
Description

Milling Drilling Ultrasonic Assisted Machining Horn

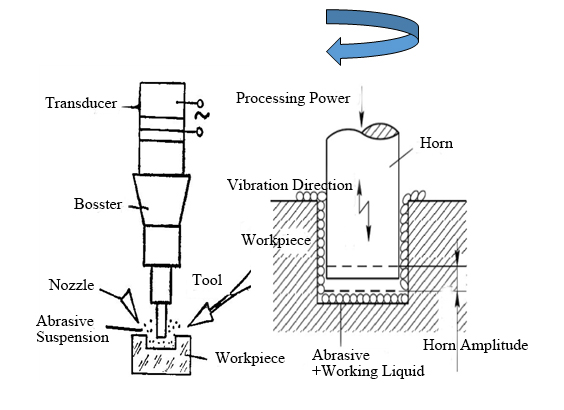

The Principle of ultrasonic assisted mashining:

Ultrasonic machining offers a unique blend of capabilities, quality and material compatibility for the machining of engineered ceramics and advanced technical materials. The process is versatile, offering flexibility to meet a wide range of design requirements, and yields high-quality parts with little or no subsurface damage and no heat-affected zone.

Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min

Specification:

Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator

Description:

Ultrasonic vibration milling is a kind of pulse milling from a microscopic point of view. In a vibration cycle, the effective milling time of the tool is very short, and the tool is completely separated from the workpiece and chips more than 80% of the time.

Competitive Advantages:

  • Capability to machine such fragile materials as silica since there is no contact between the tool and the part
  • Capability to machine such hard materials as boron carbide, silicon carbide, silicon nitride
  • Machining of such peculiar shapes as square or hexagonal holes even in very small dimensions - less than 1 mm
  • Drilling of long holes - ratio diameter-to-length greater than 10 for small diameters
  • This machining technique also makes it possible to carry out usual drilling operations of small diameter holes - about 0.4 mm.

Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min

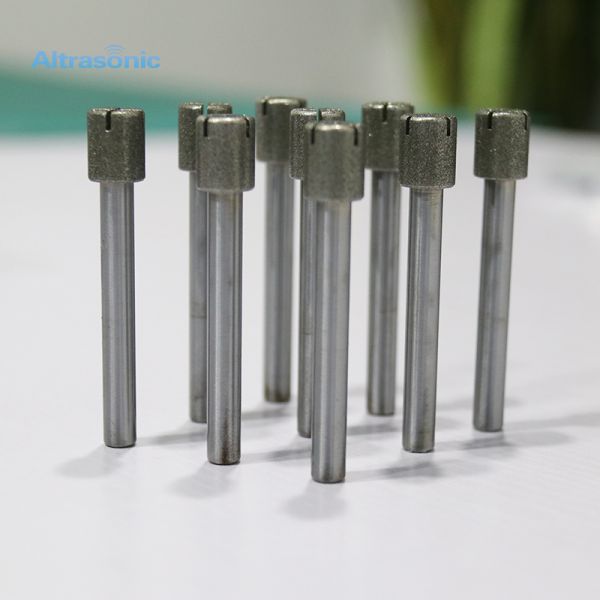

Product display:Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min

Milling Drilling Ultrasonic Assisted Machining Horn With Digital Generator 3000r/Min
