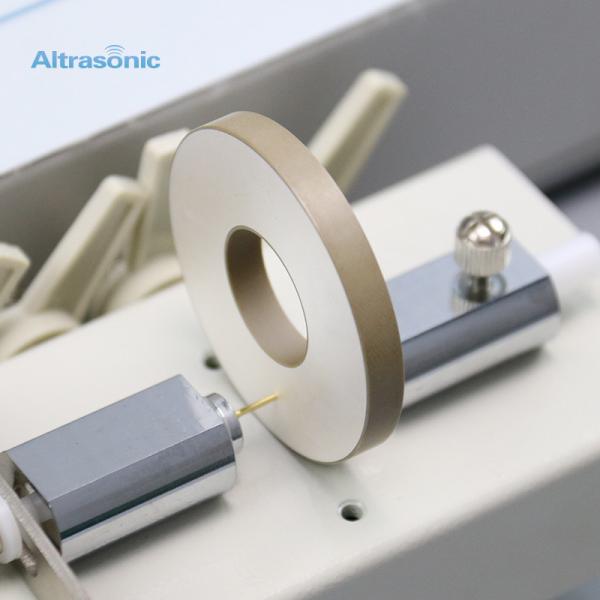

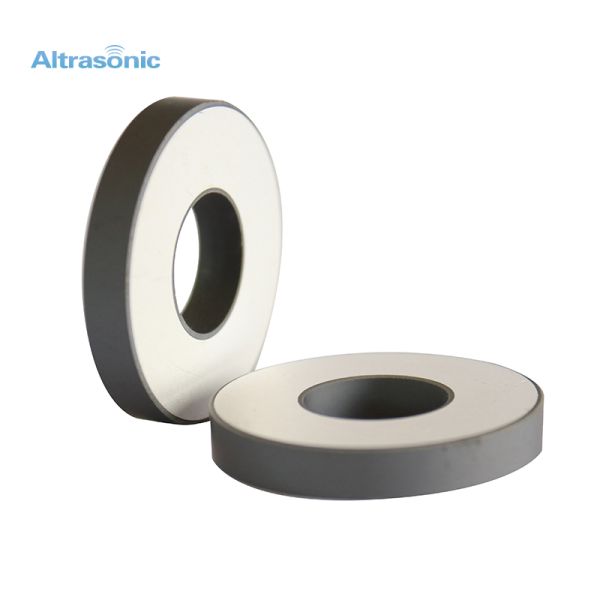

Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
Specifications
Brand Name :
Altrasonic
Model Number :
HS-OC
Certification :
CE
Place of Origin :
China
MOQ :
20 units
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
350000 units per month
Delivery Time :
7 days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Piezo Ceramic Ring
Color :
Yellow
Warranty :
1 year
Frenquency :
20-150kHz
Description

Piezoelectric Ceramic Ring Tube Plate Material 20KHhz Ultrasonic Welding Cutting Machines

Sepcification:

Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction. Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Piezoelectric ceramics have conventional sizes, and we can also customize different sizes and shapes according to customer requirements, such as circular, square, rectangular, tubular, hemispherical and so on.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.

Sizes(MM) Frequency(Khz) Capacitance(±12.5%)pF Tanδ(%) Kr QM
50*17*5 34.8 3160 ≤0.3 ≥0.55 800
50*20*6 33.5 2490 ≤0.3 ≥0.46 800
50*17*6.5 34.8 3280 ≤0.3 ≥0.55 800
50*23*6 32.1 2340 ≤0.3 ≥0.46 800
50*27*6 29 2100 ≤0.3 ≥0.47 800

Products Advantage:

Low calorific value;
High vibration efficiency;
High Mechanical Q; Good Stablity; Low Heat; High Sensitivity

Application:

As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.

Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring

Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring

Customzied Ultrasonic Piezoelectric Ceramic Sheet / 50X20X6mm Piezoelectric Ceramic Piezo Ring
