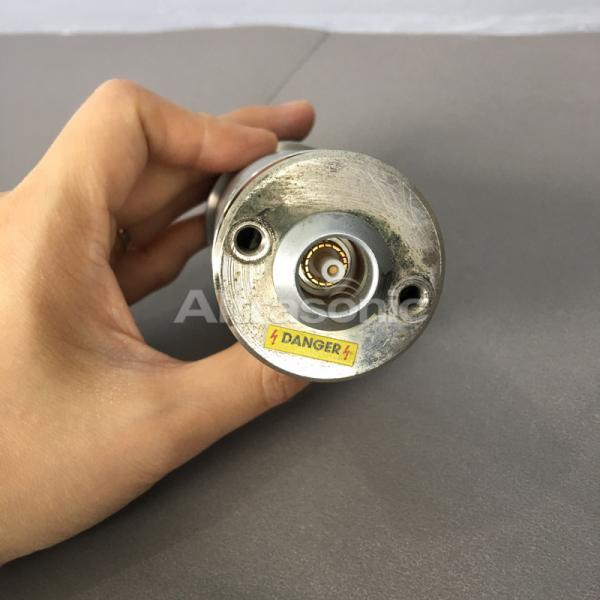

Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Specifications
Brand Name :
Altrasonic
Model Number :
HSHM35
Certification :
CE
Place of Origin :
China
MOQ :
2 units
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in carton
Product Name :
Ultrasonic Converter
Frequency :
35Khz
Power :
1000w
Capacitance :
5-8nf
Application :
Welding Machine
Material Of Booster :
Titanium, Aluminum, Steel Materials Optional
Protective Housing :
Aluminum And Stainless Steel Optional
Description

Replacement 35Khz 1200Watt Herrmann Ultrasonic Converters With Protective Housing

Specifications:

Model HSHM35
Frequency 35 khz
Output power 1000 watt
Joint bolt M18 * 1.5
Capacitance 5000-8000pf
Amplitude 10 um
Application

welding machine

Description:

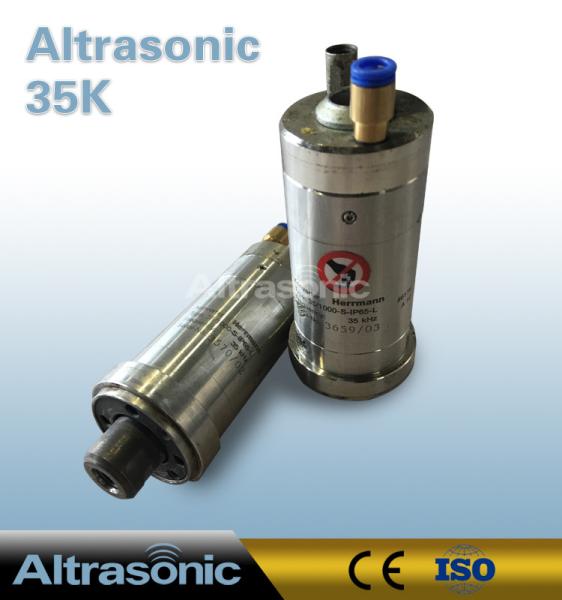

The 35 kHz Replacement Ultrasonic Herrmann Converters 35/1000-S-IP65 Type​is applied to Herrmann type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Repair 35khz Ultrasonic Herrmann Converters 35/1000-S-IP65 Type
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
Replacement 35Khz 1200 Watt Herrmann Ultrasonic Transducers With Protective Housing
