Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Specifications
Brand Name :
Altrasonic
Model Number :
HSW20
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
5000 pieces/month
Delivery Time :
7 workdays after receipt of the full payment.
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Frequency :
20k
Power :
2000w
Net Weight :
25kgs
Horn size :
110*20mm(Can be customized)
Diameter of Ceramic :
50mm
Quantity of Ceramic :
4pcs
Working Temperature :
5°C - 50°C
Generator :
Analog
Description

Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick

Specifications:

Model HSW20
Frequency 20K
Output power 2000W
Frequency tuning method Intermittent
Size 410*600*180 mm
Voltage 220V 50/60HZ
Net weight 20kgs
Temperature ≤300℃
Moisture

≤85%RH

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations. Altrasonic 20kHz high-power transducer is suitable for ultrasonic welding machines for producing medical masks. Altrasonic researched and added matching horns to make the ultrasonic welding system run more stable. Perfectly adapted to the requirements of welding multilayer non-woven masks. In the era of pursuing energy saving and environmental protection, the ultrasonic automatic mask welding machine gradually emits luster.

Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick

Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick

Applications:


Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.

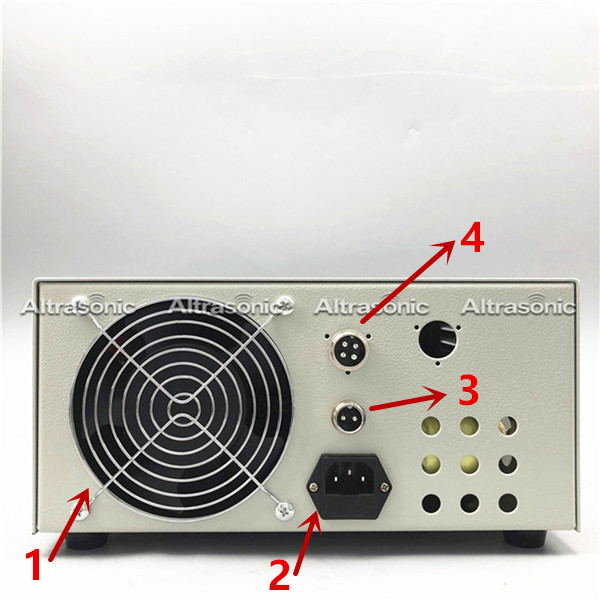

Ultrasound generator rear panel:

Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick

1. Drive the internal cooling fan of the power supply;
2. Vibrator and ultrasonic generator connection plug;
3. External control switch interface;
4. 220V power cord socket, there is a 6A fuse inside.
Transport and packaging:
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Payment:
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
Certification:
Full kit sonotrode 20khz + transducer + generator (3 parts that fully work with each other) for ear rings to stick
