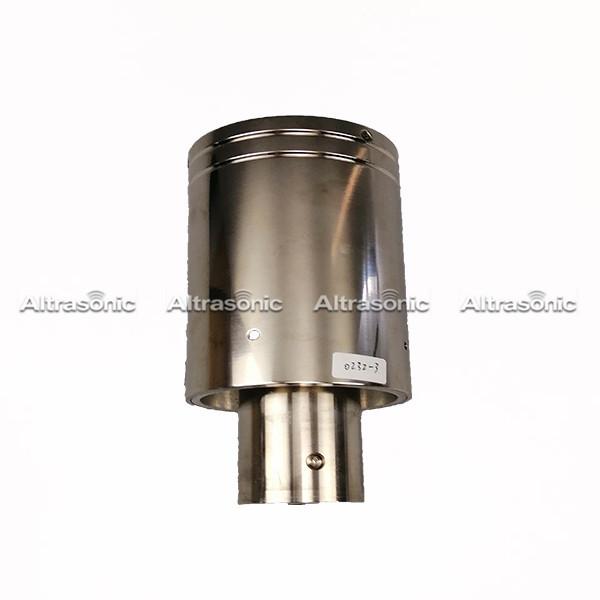

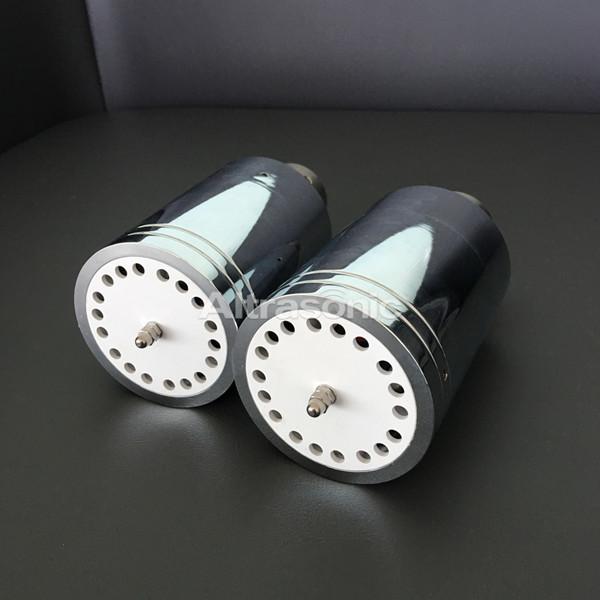

20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
Specifications
Brand Name :
Altrasonic
Model Number :
HS-BCJ20
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
1,000 units per month
Delivery Time :
10working days after receive your payment
Packaging Details :
carton
Product Name :
Ultrasonic welding transducer
Joint bolt :
1/2-20UNF
Ceramic diameter :
50mm
Capacitance :
20nf
Type :
Branson
Application :
Welding
Warranty :
12 month
Description

20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding

Specifications:

Model

HS-BCJ20

Frequency

20khz

Output power

3300watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50mm

Quantity of Ceramic discs

6pcs

Capacitance

20nf

Amplitude

20um

Application

Welding

Description:

An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a pivotal device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology.

Applications:

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting machine can make perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.

Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantages:

1. Made of Titanium

2. When assembled over, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, therefore, put it on the shelf prior to test will identify nonconforming material.

3. Testing over and over again to ensure that each transducer performance are excellent.

4. Possess good heat resistance, great quanlity can be used in a wide range of temperature with long life and high reliability.20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding20 Khz Ultrasonic Transducer CJ20 Branson Replacement Welding
