High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing
Specifications
Brand Name :
Altrasonic
Model Number :
HS-D41S30
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T or western Union
Supply Ability :
1,000 units per month
Delivery Time :
14 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Product Name :
Ultrasonic welding transducer
Joint bolt :
1/2-20UNF
Ceramic diameter :
50mm
Capacitance :
11 nF
Application :
Welding
Description

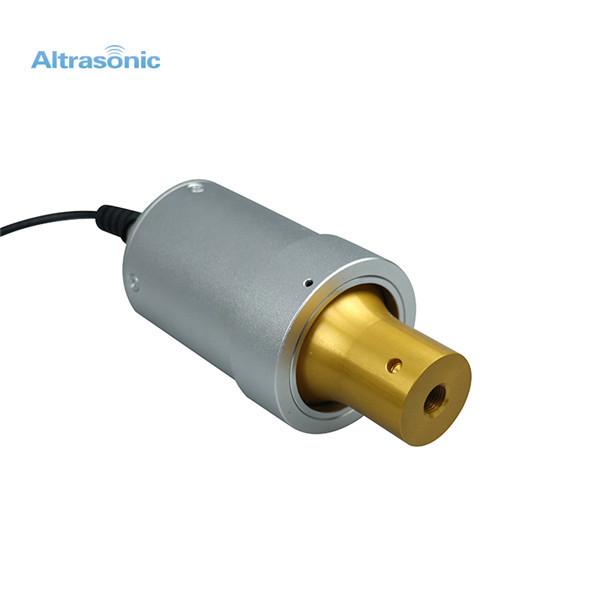

High Temperature Ultrasonic Welding Transducer With Aluminum Protective Housing

Specifications:

Model

HS-D41S30

Frequency

20khz

Output power

1000-3000watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50mm

Quantity of Ceramic discs

4 pcs

Capacitance

11nF

Amplitude

20um

Application

Welding

Description:

The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Replacement Item:

Item No

Connect Screw (Size)

Ceramic diameter

(mm)

Qty of ceramic

(PC)

Frequency(khz)

Resistance(Ω)

Color of ceramic

Capacitance

Input Power

(W)

Branson CJ20

1/2-20UNF

50

6

19.90

10

Yellow

20000

3300

Branson 502

1/2-20UNF

50

6

19.90

10

Yellow

20000

3300

Branson 402

M8*1.25

25

4

39.60

10

Yellow

4200

800

Branson 4TH

M8*1.25

25

4

39.90

10

Yellow

4200

800

Branson 902

1/2-20UNF

40

4

19.85

10

Yellow

8000

1100

Branson 922J

1/2-20UNF

50

6

19.90

10

Yellow

20000

2200

Dukane 40K

M8*1.25

35

2

39.80

5

Gray

3000

800

Dukane 20K

1/2-20UNF

50

2

19.50

10

Yellow

11000

2000

Dukane 110-3122

1/2-20UNF

50

4

19.50

10

Yellow

11000

2000

Dukane 110-3168

1/2-20UNF

45

2

19.50

10

Yellow

4000

800

Rinco 35K

M8*1.25

25

2

34.80

50

Yellow

2000

900

Rinco 20K

M16*2

50

2

19.90

50

Yellow

5000

3000

Telsonic 35K

M8*1.25

25

4

35.00

5

Yellow

4000

1200

Telsonic 20K

1/2-20UNF

50

4

20.00

3

Yellow

10000

2500

Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

clothing,

packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
