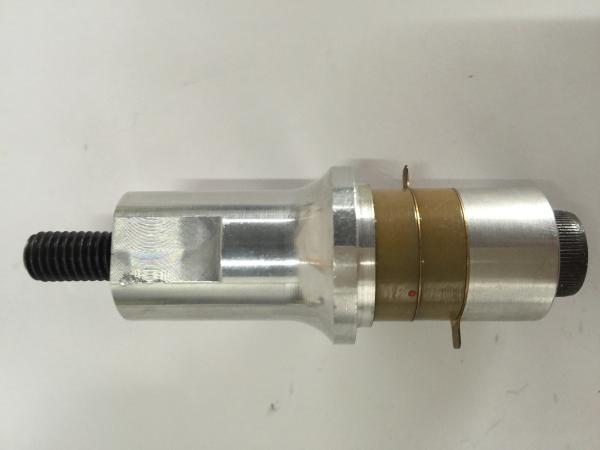

300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
Specifications
Brand Name :
Altrasonic
Model Number :
HS-2040-2D
Certification :
CE
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in foamed plastic firstly,and then reinforced with case for outer packingonth
Product Name :
Ultrasonic Sensors
Frequency :
40Khz
Power :
300W
Connect Screw :
M8
Ceramic Diameter :
20mm
Qty of Ceramics :
2 pcs
Capacitance :
1.1-1.3nf
Application :
Sonochemistry
Description

300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials

Specifications:

Model HS-2040-2D
Frequency 40khz
Output power 300watt
Joint bolt M8
Ceramic disc Diameter 20 mm
Quantity of Ceramic discs 2 pcs
Capacitance 1.1-1.3nf
Amplitude 4um
Application Sonochemistry

Description:

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Applications:

Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.

Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

it can welding the material more easy and stable.Such like plastic, fabric,

ABS, nonwovens.
Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

at the same.
Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

longer time.

Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials

300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials

300w Ultrasonic Sensors With 2 Pcs Piezoelectric Ceramics , Aluminium Materials
