Surface Roughness Tester SRT6200S
Surface Roughness Tester SRT6200S
Specifications
Brand Name :
TMTeck
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
5-8 days
Packaging Details :
Carton
Description

Description

Report Item
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.

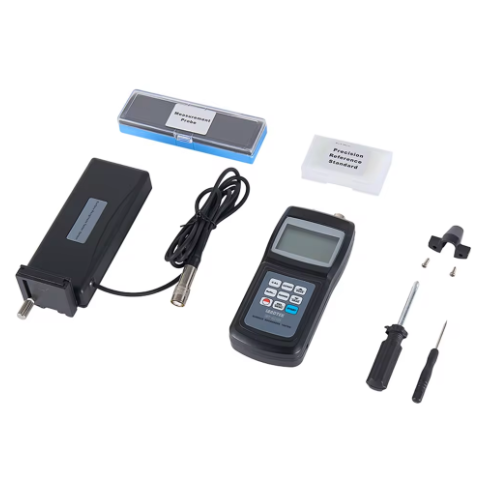

Standard Accessories:

1. Main Unit

2. Small Screwdriver

3. Measuing Base

4. Adjustable Stand

5. Standard Sample Plate

6. Standard Sensor

7. Sheath of Sensor

8. Carrying Case

9. Instruction Manual

Optional Accessories:

1. Groove Stylus SRP-110

2. Curvature Probe SRP-120

3. Extension Rod SER-150

4. Measurement Stand SRS-1

5. USB, RS-232C data cable with software
6. Bluetooth data out put with software
