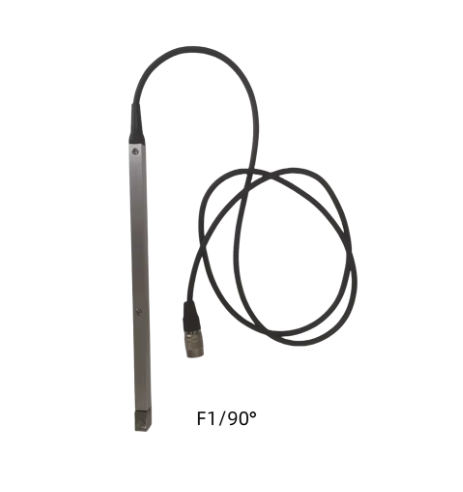

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus
F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus
Specifications
Brand Name :
TMTeck
Model Number :
F1 90°
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50PCS/Two weeks
Delivery Time :
3-5 work day
Packaging Details :
Carton 20*15*12cm 0.5kg
Description

F1/90 Coating thickness probe for COATING

THICKNESS GAUGE TM510FNplus

Probe F400 F5 F1 F1/90° F10
Measuring
Principle		 Magnetic method
Measuring
range(mm)		 0～400um 0～1250 um 0～10000
Min resolution(mm) 0.1 0.1 10
Tolerance One-point
calibration (mm)		 ±(2%H+0.7) ±(2%H+1) ±(2%H+10)
Two-point
calibration (mm)		 ±(1%H+0.7) ±((1%H+1) ±(1%H+10)
Minimum
radius of curvature (convex) (mm)		 1 1.5 1.5 flat 10
Minimum measuring area(mm) F3 F7 F7 F40
Minimum
thickness of base material(mm)		 0.2 0.5 0.5 2

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus

F1/90° Coating Thickness Probe For COATING THICKNESS GAUGE TM510FN plus
