Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
Specifications
Brand Name :
TMTECK
Model Number :
V3
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100pcs/month
Delivery Time :
5-8 days
Packaging Details :
carton
Material :
1018 steel,stainless steel,aluminum
Type: :
NDT Accessories
Dimensions :
150mm x 90mm x 25mm
Description

Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel for Ultrasonic Flaw Detection NDT
Specification
For calibrating ultrasonic flaw detection equipment in both
laboratory and on-site conditions. This block is intended to
function as a more compact and light-weight alternative to
V1 or IIW-Type Test Blocks. Includes 25mm, 50mm, and
100mm radii, (2) 3.0mm diameter through holes,
engraved reference mark scales, and a 0.4mm wide x
2.5mm deep slot.
Dimensions: 150mm x 90mm x 25mm

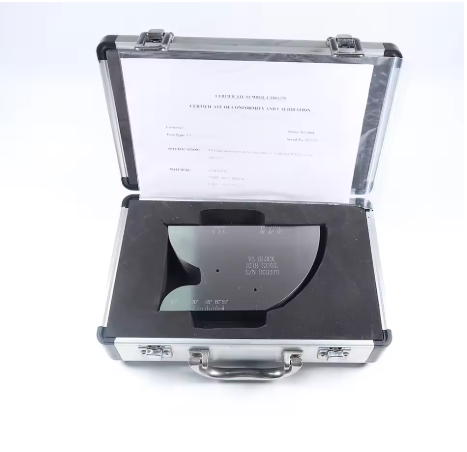

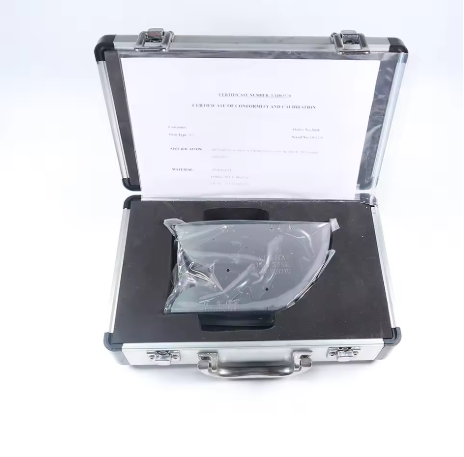

Package including
1 calibration block
1 certificate
1 suitcase

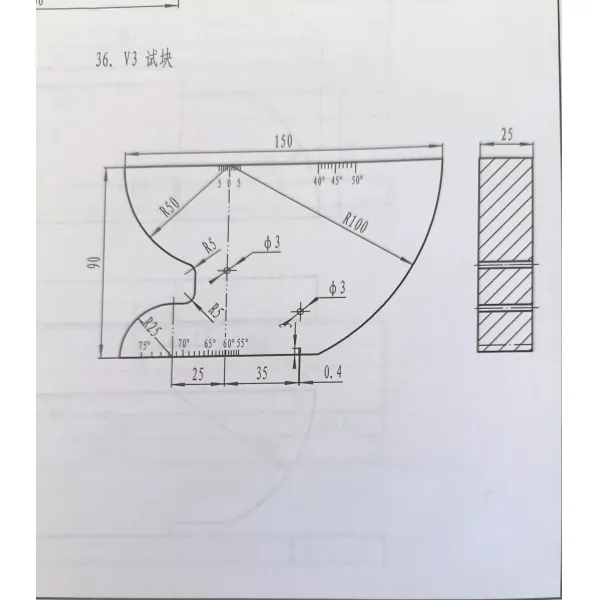

The drawing:

Calibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDTCalibration Block No.3 (V3) V3 Metric Calibration Block 1018 Steel For Ultrasonic Flaw Detection NDT
