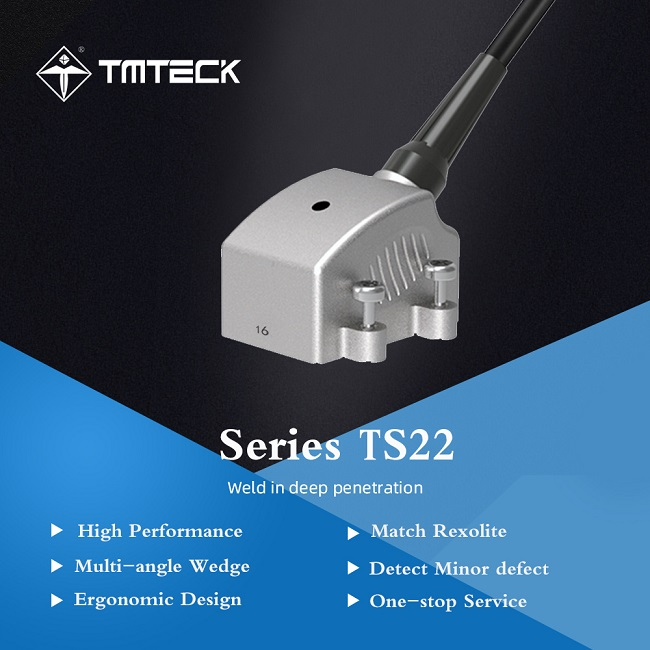

Thick Plate Material And Weld Ts22 Deep Penetrating Probes
Thick Plate Material And Weld Ts22 Deep Penetrating Probes
Thick Plate Material And Weld Ts22 Deep Penetrating Probes
Thick Plate Material And Weld Ts22 Deep Penetrating Probes
Specifications
Brand Name :
TMTeck
Model Number :
TS22
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
5L16-1.6x16-TS22/5L16-25.6x16-A3
Element :
16
Element Shape :
Linear
Warranty :
12 months
Case :
Stainless steel
Color :
Sliver
Size :
LxWxH36x36x25(mm)1.41x1.41x0.98(in)
Description

Thick Plate Material And Weld Ts22 Deep Penetrating Probes

Deep Penetrating Probes:Low frequency with strong sound penetration,suitable for detecting thick parts

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Weld penetration deep penetration series.

3.Acoustically matched to Rexolite for most angle beam.

Application

1.Thick plate material and weld

2.Forgings, noise or granular materials

3.Moderate constitution and large monitoring range

Probe Specification

Probe
Series		 Model Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm) Size(LxWxH)
TS22/A3 3.5L16-1.6x16 Linear 3.5 16 1.60 25.6 16.0

36x36x25

(mm)

1.41x1.41x0.98

(in)
5L16-1.2x16 Linear 5 16 1.20 19.2 16.0
5L16-1.6x16 Linear 5 16 1.60 25.6 16.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Probe Series Model Compatible Model Element Shape Size(LxWxH)
TS22/A3 N0L 0°LW -30°~30°

LxWxH:36x36x25 (mm)

LxWxH:1.41x1.41x0.98

(in)
N30L 30°LW 40°~70°
N45L 45°LW 40°~70°
N60L 60°LW 40°~70°
N45S 45°SW 40°~70°
N55S 55°SW 40°~70°
N60-IHC 60°SW 40°~70°
N60-AOD100 60°SW 40°~70°
N60-IHC-AOD100 60°SW 40°~70°

Quick Details

Model Number:5L16-1.6x16-TS22/5L16-25.6x16-A3

Element:16

Element Shape:Linear

Size:LxWxH36x36x25(mm)1.41x1.41x0.98(in)

Warranty:12 Months

Case:Stainless steel

Application:Thick plate material and weld

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
