Specifications
Brand Name :
TMTeck
Model Number :
TS46
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
4-6 work days
Packaging Details :
carton
Application :
Small diameter pipe weld inspection
Model number :
10EF32-0.25x7-TS46/10EF32-8x7-A15
Case :
Stainless Steel
Description

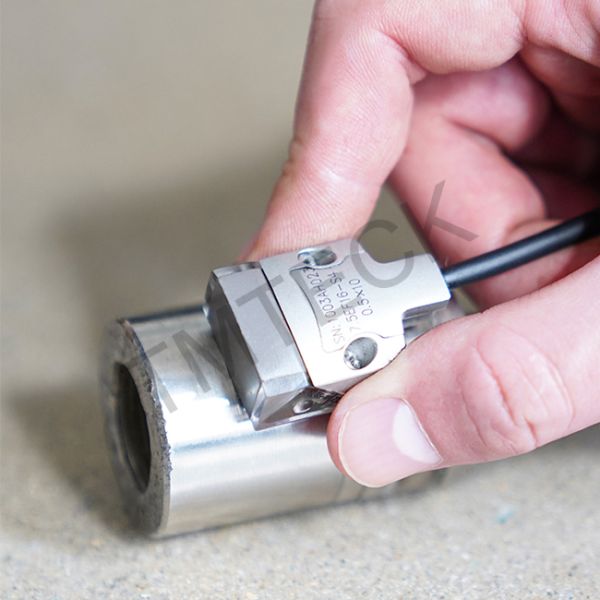

Low Clearance Ts46 Low Profile Probe For Small Diameter Pipe Weld Inspection

Internal focus probe: It acts on the space-constrained area, improves the

detection accuracy, and reduces the near-surface dead zone. It has a very important application in the detection of thin-walled small-diameter tubes.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Acoustically matches Rexolite

3.Standard fittings with an outer diameter in the range of 21 mm to 115 mm, limited space detection

4.Smaller in size , internal focus improves the ability to detect small defects on thin-walled pipe fittings

5.Inspect minor defects Easy installation and manipulation from one side of a row of pipes, high accuracy helps to detect small defects.

6. Compatible with wedges for most beam angle detection applications

7. Combined with the scanner, complete most of the complex parts inspection.

Applications

1.Thin Wall application

2.Small diameter pipe weld inspection

3.Boiler tube

4.Low clearance

5.Process pipes

Specification

Probe
Series		 Model

Compatible

Model

 Element
Shape

Freq.

(MHz)

 E-Nos Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

 Size
(LxWxH)
TS46/A15 2.25EF16-0.5x10 2.25EF16-8x10 Interal Foucs 2.25 16 0.50 8.0 10.0

25x22x10

(mm)
0.98x0.87x0.39

(in
3.5EF16-0.5x10 3.5EF16-8x10 Interal Foucs 3.5 16 0.50 8.0 10.0
5EF16-0.5x10 5EF16-8x10 Interal Foucs 5 16 0.50 8.0 10.0
7.5EF16-0.5x10 7.5EF16-8x10 Interal Foucs 7.5 16 0.50 8.0 10.0
10EF16-0.5x7 10EF16-8x7 Interal Foucs 10 16 0.50 8.0 7.0
10EF32-0.25x7 10EF32-8x7 Interal Foucs 10 32 0.25 8.0 7.0

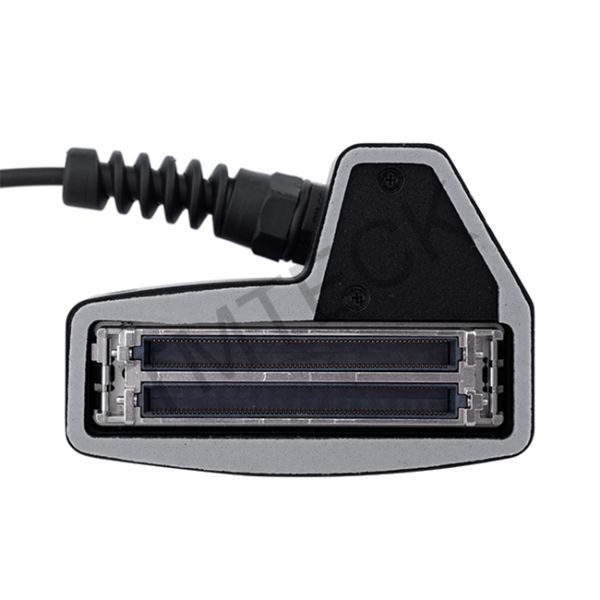

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:10EF32-0.25x7-TS46/10EF32-8x7-A15

Size:LxWxH 0.93x0.55x0.93(in)/23.5x14x23.5(mm)

Warranty:12 Months

Case:Stainless steel

Element:32

Application:Small diameter pipe weld inspection

Customization:yes

Type:phased array probe

Element Shape:Interal Foucs

Color:Silver

MOQ:1
