Specifications
Brand Name :
TMTeck
Model Number :
TS20
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
4-6 work days
Packaging Details :
carton
Description

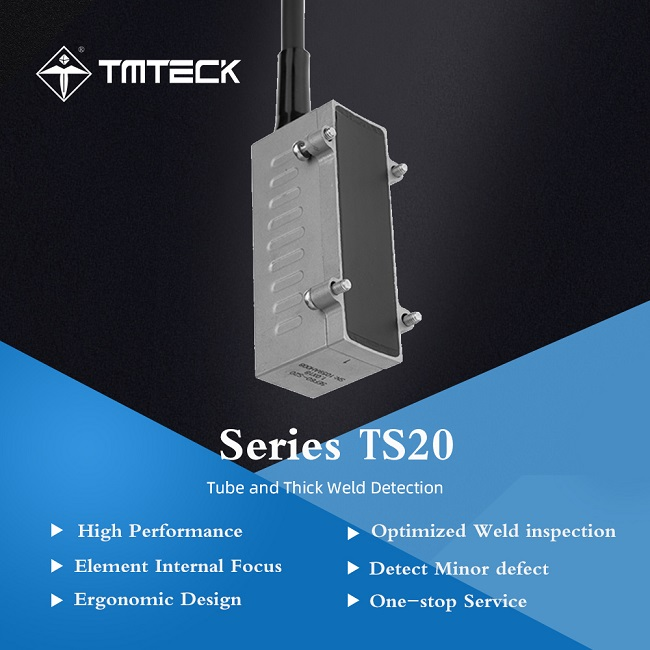

 Large Size And Measuring Range Ts20 Pipe Inspection Probe

Pipe-Inspection Probes: large size and measuring range, used to complete oil, gas, electricity and other related pipeline inspection.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.

3. S20 is internal focus probe to optimize the signal to noise ratio

4.Good beam energy in the detection of small pipe/thin wall samples

5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam

6.Can detect thick flat materials and welds, forgings, noise or granular materials

Application

1.Oil and gas: oil pipelines, bottles, tanks, etc.

2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.

3.Other: testing of thick welds, pipe welds, etc.

Specification

Probe
Series		 Model

Compatible

Model

 Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm) size(LxWxH)
TS20/A16 1.5EF60-1.0x18 1.5EF60-60x18 Interal Foucs 1.5 60 1.00 60.0 18.0

68x31x30

(mm)

2.68x1.22x1.18

(in)
2.25EF60-1.0x18 2.25EF60-60x18 Interal Foucs 2.25 60 1.00 60.0 18.0
3.5EF60-1.0x18 3.5EF60-60x18 Interal Foucs 3.5 60 1.00 60.0 18.0
5EF60-1.0x18 5EF60-60x18 Interal Foucs 5 60 1.00 60.0 18.0
7.5EF60-1.0x18 7.5EF60-60x18 Interal Foucs 7.5 60 1.00 60.0 18.0

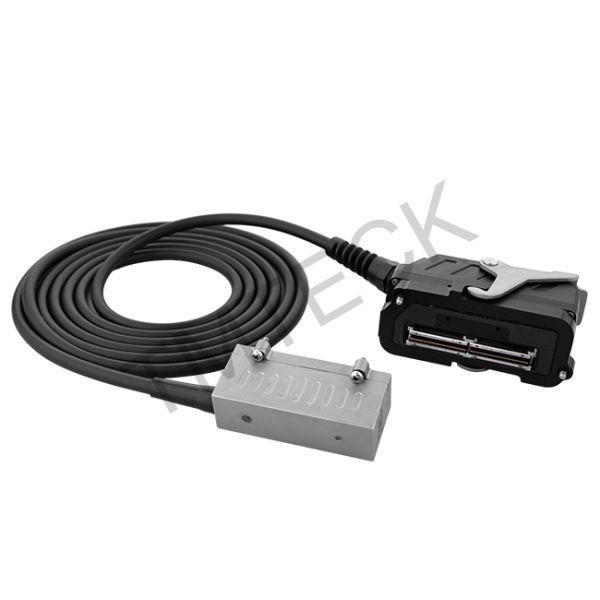

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Probe Series Model Compatible Model Element Shape Size(LxWxH)
TS20/A16 N0L 0°LW 40°~70°

68x31x30

(mm)

2.68x1.22x1.18

(in)
N60L 60°LW 40°~70°
N55S 55°SW 40°~70°
N55S-IHC 55°SW 40°~70°
N55S-AOD100 55°SW 40°~70°
N55S-IHC-AOD100 55°SW 40°~70°
