Composite plate inspection TS28 R1 Concave Probe
Composite plate inspection TS28 R1 Concave Probe
Composite plate inspection TS28 R1 Concave Probe
Composite plate inspection TS28 R1 Concave Probe
Specifications
Brand Name :
TMTeck
Model Number :
TS28 R1
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1
Element :
16
Element Shape :
Concave
Application :
Composite plate inspection
Customization :
yes
Description

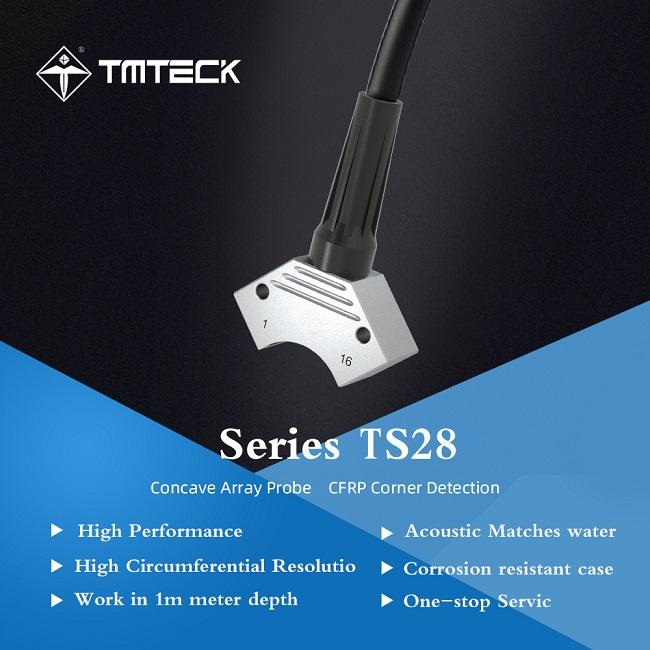

Composite plate inspection TS28 R1 Concave Probe

Concave probe: the detection is more stable, the concave array design is better to match the detection components, and is widely used for CFRP corner detection.

Advantages

1.Near-wall probes have shorter dead zones at both ends

2.Widely used in composite channel inspection

3.Can be used for C-scan detection of composites (delamination, debonding and porosity)

4.Automatic and manual scanning

Applications

1.Composite plate inspection

2.Immersion scanning area coverage

3.Plates, billets and bars

4.Disks, axles and shafts

Specification

Probe
Series		 Model

Compatible

Model

 Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

 Size(LxWxH)
TS28/R1 2.25C16-1.0x8 2.25C16-16.0x8 Concave 2.25 16 1.00 16.0 8.0

23.5x14x23.5(mm)

0.93x0.55x0.93(in)
3.5C16-1.0x8 3.5C16-16.0x8 Concave 3.5 16 1.00 16.0 8.0
5C16-1.0x8 5C16-16.0x8 Concave 5 16 1.00 16.0 8.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:2.25C16-1.0x8-TS28/2.25C16-16.0x8-R1

Element:16

Element Shape:Concave

Size:R10.2,LxWxH 23.5x14x23.5(mm)0.93x0.55x0.93(in)

Application:Composite plate inspection

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
