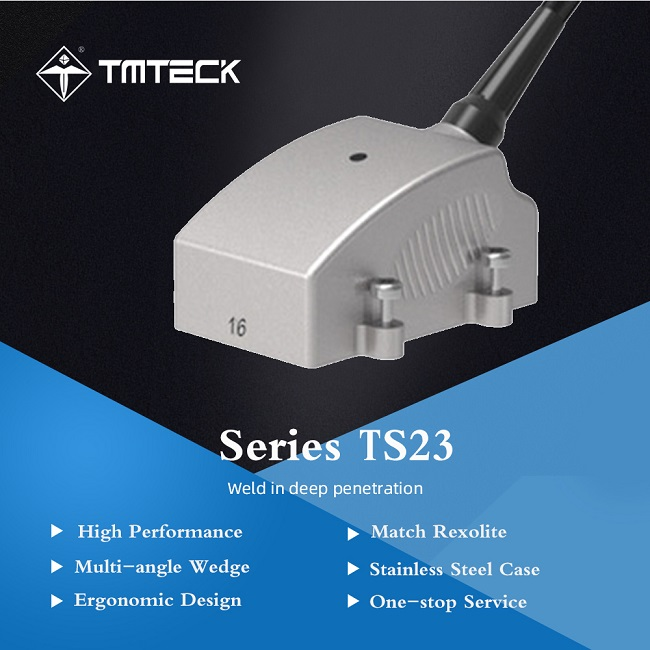

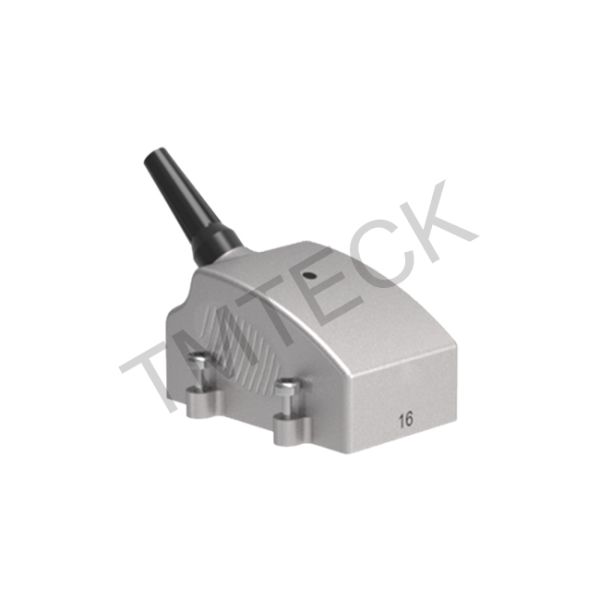

Thick Plate Material And Weld TS23 Deep Penetrating Probe
Thick Plate Material And Weld TS23 Deep Penetrating Probe
Thick Plate Material And Weld TS23 Deep Penetrating Probe
Thick Plate Material And Weld TS23 Deep Penetrating Probe
Specifications
Brand Name :
TMTeck
Model Number :
TS23
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
2.25L16-2x20-TS23/5L16-25.6x16-A4
Size :
LxWxH57x46x30(mm)2.24x1.81x1.18(in)
Warranty :
12 months
Type :
phased array probe
Customization :
yes
Description

Thick Plate Material And Weld TS23 Deep Penetrating Probe

Product Description

Deep Penetrating Probes:Low frequency with strong sound penetration,suitable for detecting thick parts

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Weld penetration deep penetration series.

3.Acoustically matched to Rexolite for most angle beam.

Application

1.Thick plate material and weld

2.Forgings, noise or granular materials

3.Moderate constitution and large monitoring range

Specification

Probe
Series		 Model Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm)

Size

(LxWxH)
TS23/A4 0.5L16-2.8x26 Linear 0.5 16 2.80 44.8 26.0

57x46x30

(mm)

2.24x1.81x1.18

(in)
1.5L16-2.8x26 Linear 1.5 16 2.80 44.8 26.0
2.25L16-2x20 Linear 2.25 16 2.00 32.0 20.0
3.5L16-2.8x26 Linear 3.5 16 2.80 44.8 26.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Probe Series Model Compatible Model Element Shape Size(LxWxH)
TS23/A4 N0L 0°LW -30°~30°

57x46x30

(mm)

2.24x1.81x1.18(in)
N45L 45°LW 40°~70°
N60L 60°LW 40°~70°
N45S 45°SW 40°~70°
N55S 55°SW 40°~70°
N60S 60°SW 40°~70°
N60-IHC 60°SW 40°~70°
N60S-AOD100 60°SW 40°~70°
N60S-IHC-AOD100 60°SW 40°~70°

Quick Details

Model Number:2.25L16-2x20-TS23/5L16-25.6x16-A4

Element:16

Element Shape:Linear

Size:LxWxH57x46x30(mm)2.24x1.81x1.18(in)

Warranty:12 Months

Case:Stainless steel

Application:Thick plate material and weld

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
