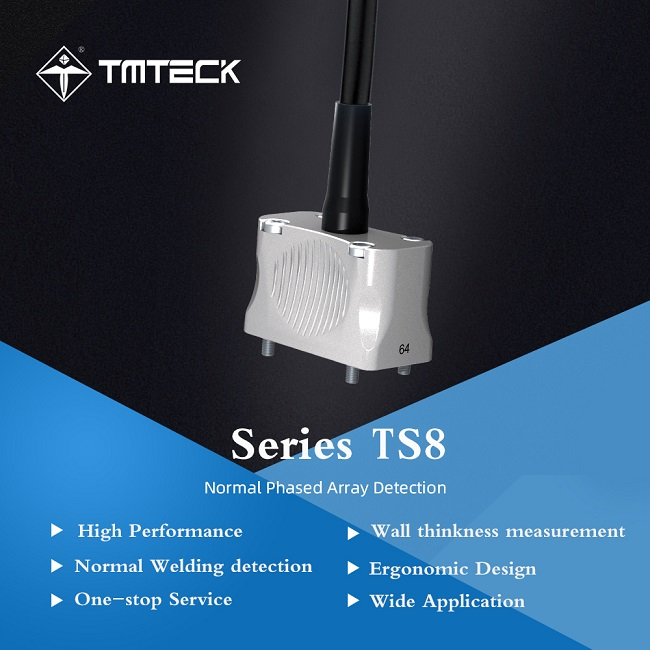

Weld raw material testing TS8 A12 Corrosion Probes
Weld raw material testing TS8 A12 Corrosion Probes
Weld raw material testing TS8 A12 Corrosion Probes
Weld raw material testing TS8 A12 Corrosion Probes
Weld raw material testing TS8 A12 Corrosion Probes
Weld raw material testing TS8 A12 Corrosion Probes
Specifications
Brand Name :
TMTeck
Model Number :
TS8 A12
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
7.5L64-0.6x10-TS8/7.5L64-38.4x10-A12
Element :
64
Element Shape :
Linear
Application :
Weld raw material testing
Customization :
yes
Description

Weld raw material testing TS8 A12 Corrosion Probes

Corrosion Probes: Corrosion Probes detect wall thickness reduction caused by corrosion, erosion, etc., and can detect damage in the wall.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.The combination of s19 and s20 can automatically detect the girth weld, which is suitable for manual or automatic inspection of pipeline welds.

3. S20 is internal focus probeto optimize the signal to noise ratio

4.Good beam energy in the detection of small pipe/thin wall samples

5.Acoustic, can be matched with Rexolite, can complete most angles of sound beam

6.Can detect thick flat materials and welds, forgings, noise or granular materials

Applications

1. Oil and gas: oil pipelines, bottles, tanks, etc.

2. Electricity: pressure vessels and pipelines, turbine blades, rotor monitoring, etc.

3. Other: testing of thick welds, pipe welds, etc.

Specification

Probe
Series		 Model

Compatible

Model

 Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm) Size(LxWxH)
TS8/A12 2.25L64-0.6x10 2.25L64-38.4x10 Linear 2.25 64 0.60 38.4 10.0

44.5x22.5x28

(mm)

1.75x0.88x1.1

(in)
3.5L64-0.6x10 3.5L64-38.410 Linear 3.5 64 0.60 38.4 10.0
5L64-0.6x10 5L64-38.4x10 Linear 5 64 0.60 38.4 10.0
7.5L64-0.6x10 7.5L64-38.4x10 Linear 7.5 64 0.60 38.4 10.0
10L64-0.6x7 10L64-38.4x7 Linear 10 64 0.60 38.4 7.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Wedge Specification

Probe Series Model Compatible Model Element Shape Size(LxWxH)
TS8/A12 N0L 0°LW -30°~30°

44.5x22.5x28

(mm)

1.75x0.88x1.1

(in)
N40L 40°LW 40°~70°
N60L 60°LW 40°~70°
N75L 75°LW 40°~70°
N55S 55°SW 40°~70°

Quick Details

Model Number:7.5L64-0.6x10-TS8/7.5L64-38.4x10-A12

Element:64

Element Shape:Linear

Size:LxWxH 44.5x22.5x28(mm)1.75x0.88x1.1(in)

Warranty:12 Months

Case:Stainless steel

Application:Weld raw material testing

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
