TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
Specifications
Brand Name :
TMTeck
Model Number :
5L64-1.0X8-TS41
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
4-6 work days
Packaging Details :
carton
Element :
64
Size :
100x27(mm) 3.94x1.06(in)
Application :
Pipeline and bar corrosion inspection
Type :
phased array probe
Description

TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION

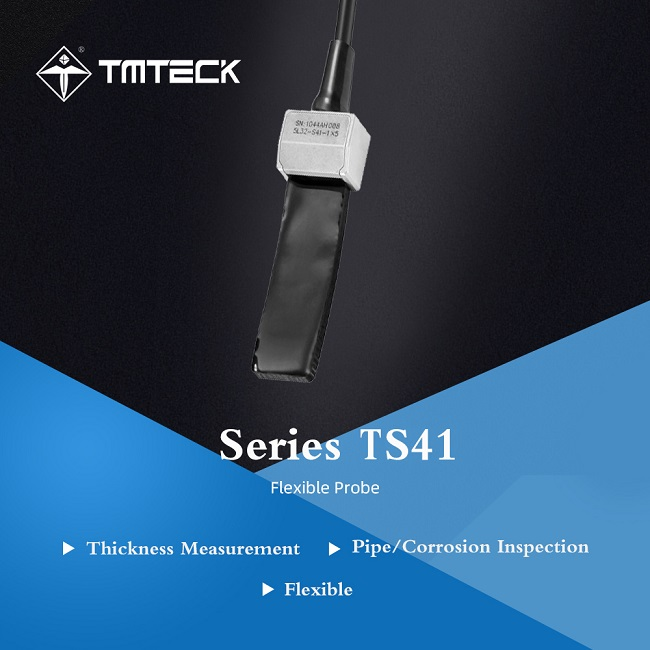

Flexible phased array probe:

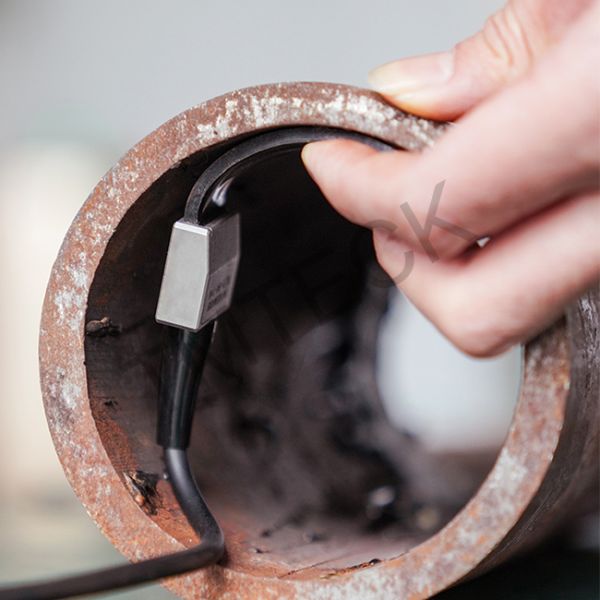

can be bent at will. It used water as the coupling medium, which can be very well coupled in detecting pipes, bars and other components.

Advantages

1.Bent to fit the workpiece surface at axis direction 3-4mm thick,can be placed inside the pipe for inner inspection

2.Can be used for different diameter pipes

Application

1.Pipeline and bar corrosion inspection

2.The workpiece can be measured and imaged

3.Other complex geometric artifacts

Specification

Probe
Series		 Model Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

Size

(mm)
TS41 5L64-1.0X8 Linear 5 64 1 64 8 100x27(mm)
3.94x1.06(in)
7.5L64-1.0X6 Linear 7.5 64 0.5 32 6
10L64-0.5X5 Linear 10 64 0.5 32 5
15L64-0.5X5 Linear 15 64 0.5 32 5

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5L64-1.0X8-TS41

Element:64

Element Shape:Linear

Size:100x27(mm) 3.94x1.06(in)

Warranty:12 Months

Case:Stainless steel

Application:Pipeline and bar corrosion inspection

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION
