TS31 A17 Dual 1.5D Matrix Probe
TS31 A17 Dual 1.5D Matrix Probe
TS31 A17 Dual 1.5D Matrix Probe
TS31 A17 Dual 1.5D Matrix Probe
Specifications
Brand Name :
TMTeck
Model Number :
TS31 A17
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
2.25DM7x4-2.8x3-TS31
Case :
Stainless steel
Element Shape :
Dual 1.5D Matrix
Application :
Railway: rails, wheel tracks, bridges, etc.
Customization :
yes
Description

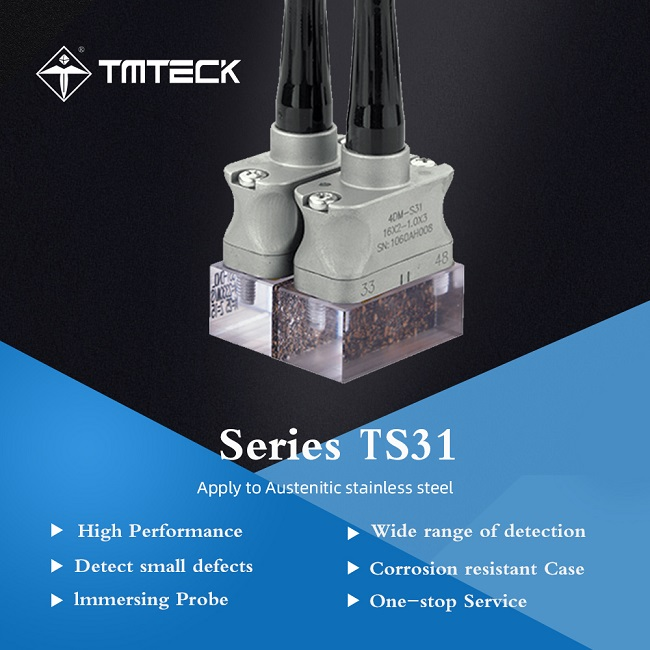

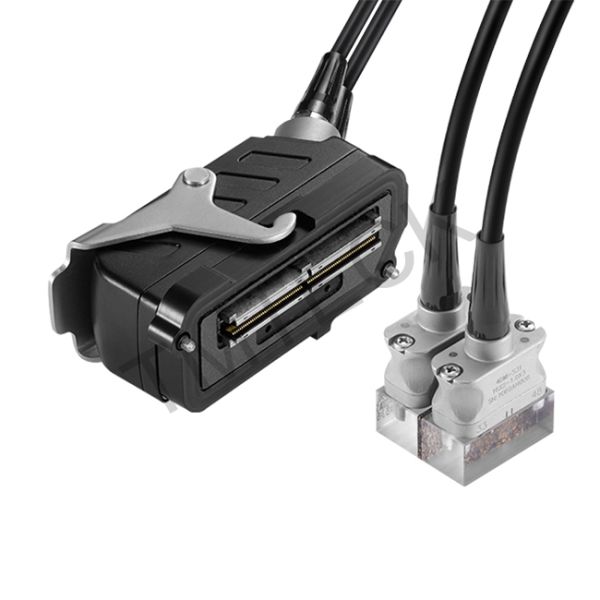

TS31 A17 Dual 1.5D Matrix Probe

Dual 1.5D Probes: Provide off-the-shelf inspection capabilities to cover a wider range of inspections with a superior signal-to-noise ratio.

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Use for wave S-scans, pitch-catch longitudinal inspection strategy for better inspection.

3.Combined with detection, high detection accuracy and the small defects are quantified.

4.Wide the detection range, good SNR.

Applications

1.Railway: rails, wheel tracks, bridges, etc.

2.Conventional: Weld Inspection, Bottle Welds, Pipeline Turbine Blades, Rotor Detection

3.Electricity: welds, forgings, castings, fittings, bridges and structural steel

4.Other: Austenite detection

Specification

Probe
Series		 Model Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

Elev.

(mm)

 Size(LxWxH)
TS31/A17 2.25DM7x4-2.8x3 Dual 1.5D Matrix 2.25 56 2.8/3.0 19.6 12.0

34x16x25

(mm)

1.34x0.63x0.98

(in)
4DM16x2-1.0x3 Dual 1.5D Matrix 4 64 1.0/3.0 16.0 6.0
5DM16x2-1.0x3 Dual 1.6D Matrix 5 64 1.0/3.0 16.0 6.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:2.25DM7x4-2.8x3-TS31

Element:56

Element Shape:Dual 1.5D Matrix

Size:LxWxH 34x16x25(mm)1.34x0.63x0.98(in)

Application:Railway: rails, wheel tracks, bridges, etc.

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
