TS11 2D Matrix Array Probe
TS11 2D Matrix Array Probe
Specifications
Brand Name :
TMTeck
Model Number :
TS10 2D
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
25 work days
Packaging Details :
carton
Model Number: :
5M8x8-1.0x1.0-TS11
Element :
64
Element Shape :
2D Matrix
Application :
Suitable for soft and thick attenuating materials
Case :
Stainless steel
Color :
Sliver
size :
LxWxH 29x16x38(mm)1.14x0.63x1.50(in)
Description

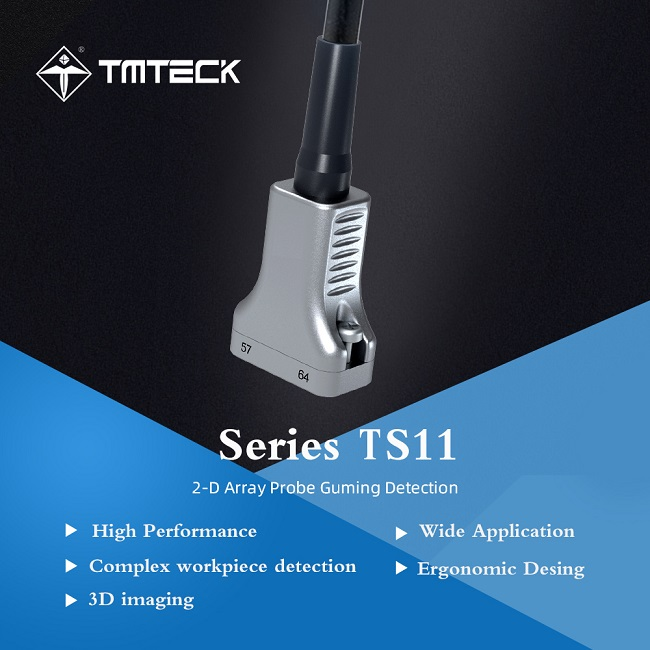

TS11 2D Matrix Array Probe

2D Matrix Array Probe: 3D spatial focusing, could use for immersion detection

Advantages

1.High compatibility, can be compatible with most phased array flaw detectors.

2.Suitable for soft and thick attenuating materials

3.Can be used for 3D imaging

4.Lightweight and flexible, easy to carry, easy to measure

5.High energy concentration and high signal to noise ratio

6.Widely used for glue testing

Specification

Probe
Series		 Model Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm) Size(LxWxH)
TS11 5M8x8-1.0x1.0 2D Matrix 5 64 1.00 8.0 8.0

29x16x38

(mm)

1.14x0.63x1.50

(in)
7.5M8x8-0.8x0.8 2D Matrix 7.5 64 0.75 6.4 6.4
10M8x8-0.6x0.6 2D Matrix 10 64 0.60 4.8 4.8
15M8x8-0.6x0.6 2D Matrix 15 64 0.60 4.8 4.8

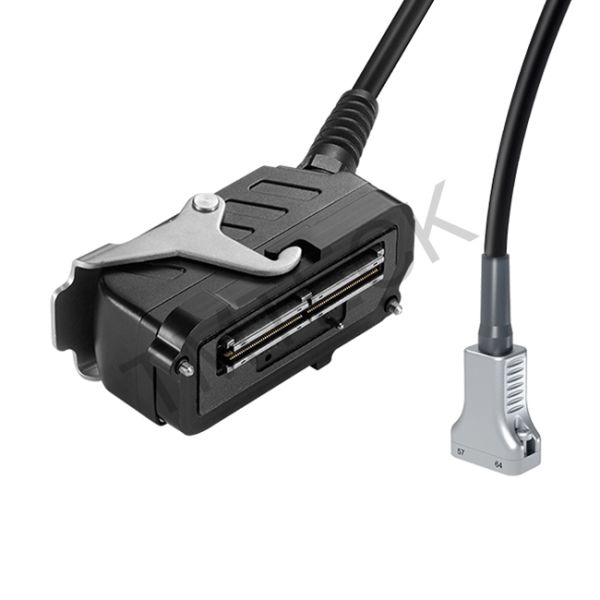

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5M8x8-1.0x1.0-TS11

Element:64

Element Shape:2D Matrix

Size:LxWxH 29x16x38(mm)1.14x0.63x1.50(in)

Application:Suitable for soft and thick attenuating materials

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
