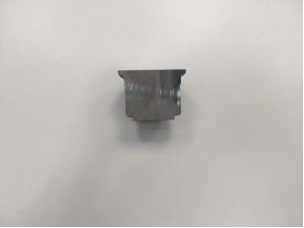

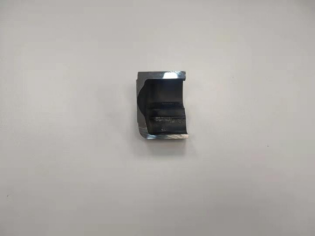

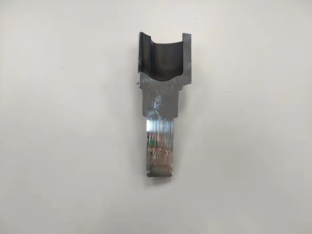

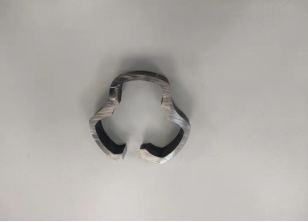

2. Chopping cutting, flat pushing cutting, sweeping cutting and three functional cutting methods. When cutting, the cutting speed can be adjusted according to the hardness of the material to achieve the purpose of fast cutting the workpiece. When cutting steel solid cylinder, different cutting methods can be selected.

3. In order to facilitate the cleaning of the cutting room and the safety of the spindle motor, we have adopted electromechanical separation; the cutting room motor is protected by waterproof isolation. The large observation window is installed on the safety protection door of the cutting room, so that the user can easily observe the whole cutting process of the sample; the LED lighting lamp is installed in the cutting room to realize the effective lighting of the whole cutting room area; the brightness and clarity in the working room are increased;

4. The design is more humanized, using the principle of ergonomics. The biggest feature: low noise, easy to operate, beautiful appearance, safe to use. Is one of the necessary equipment for laboratory sample preparation.

Body form; vertical. It is mainly composed of upper part (safety cover), middle part (frame), right sliding door, side opening door, lower frame (electrical box), fixture, flushing water gun and cooling water tank (independent).

This cutting machine, designed for large-volume cutting of large workpieces, makes it easier to maintain machine parts and handle large workpieces. Sliding doors and hinged doors give you more space and unlimited access, making it easier to load large workpieces in the right place. The workpiece can also be fed into the cutting chamber from above, front, left, 3.

The work area is fully enclosed with a transparent protective cover for observation during cutting. Equipped with cooling water to provide storage coolant, avoid using tap water as coolant. After the cutting work is completed, rinse the faucet with the left side, rinse the indoor garbage and close the safety door.

II．Main technical parameter

Cutting method:Chop cutting, flat push cutting, sweep cutting

Cutting speed:0.01-1mm/s(adjustment step 0.01)

Reset mode:Automatic

Control system: PLC 7”touch LCD screen

Spindle rotation speed:2800rpm

Max. stroke:Z axle 130mm；Y axle 200mm；X axle 100mm

Working table size:128*320mm 180*320mm

Max. diameter:φ 130mm

Cutting blade:400*4*32mm

Cutting Power:4KW

Voltage:380V/ 50Hz

Dimension:1350*1100*1750mm(L×W×H)

III．Electric control specification

1.Electronic control principle

Cutting equipment for automatic equipment, using PLC, with 7 inch LCD touch screen. System power input: three-phase four-wire AC380V 50Hz.

IV．Function introduction

Automatic operation is divided into Y-axis direction, X-axis direction, Z-axis direction using stepper motor control, touch screen operation.

The panel is equipped with a touch screen, and button switches for start, stop, and emergency stop. After the equipment is powered on, turn on the main power switch, press the start button, the system will be powered on, and press the stop button, the system will be powered off. The emergency stop button is the emergency stop button of the system. Press the system to stop the action.

The operation screen is as follows

1) Main interface
