TS26 I2 Immersion Probe
TS26 I2 Immersion Probe
TS26 I2 Immersion Probe
TS26 I2 Immersion Probe
TS26 I2 Immersion Probe
TS26 I2 Immersion Probe
Specifications
Brand Name :
TMTeck
Model Number :
TS26 series
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100pcs/ one week
Delivery Time :
4-6 work days
Packaging Details :
carton
Element :
128
Element Shape :
liner
Size :
LxWxH 83x21x35(mm)3.27x0.83x1.38(in)
Application :
Testing of sheets or fittings made of steel
Description

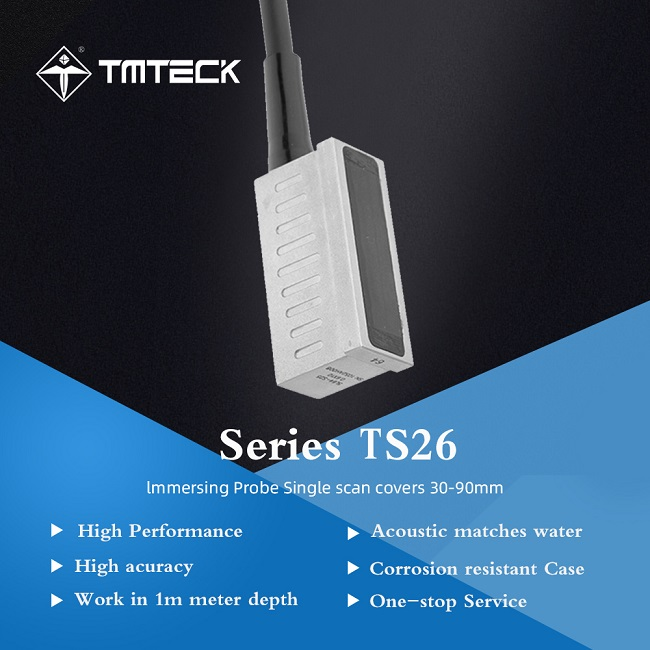

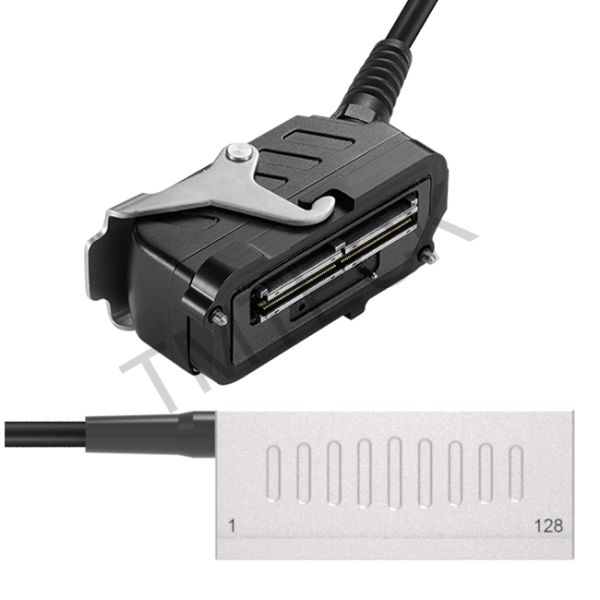

TS26 I2 Immersion Probe

Immersion Probe: It can be used together with water wedges, or the test samples can be placed in water to complete the test.

Advantages

1. Acoustic impedance matched to water, suitable for work piece inspection of geometrically complex shapes.

2. Designed to fit onto the wedge, easy to couple to a variety of surfaces with adjustable underwater sound paths.

3.Single linear scan can cover distances from 30 mm to 90 mm.

4.High accuracy , can work normally for 24 hours under one meter of water depth.

Applications

1.Testing of sheets or fittings made of steel, aluminum or other materials.

2.The composite was tested to detect defects such as delamination and disbonding.

3.Large area scanning of the detected object, online thickness measurement.

Probe
Series		 Model

Compatible

Model

 Element
Shape		 Freq (MHz) E-Nos Pitch
(mm)

Active
Aperture

(mm)

 Elev.(mm) Size(LxWxH)
TS26/I2 2.25L64-1.0x10 2.25L64-64x10 Linear 2.25 64 1.00 64.0 10.0

83x21x35

(mm)
3.27x0.83x1.38

(in)
3.5L128-0.6x10 3.5L128-76.8x10 Linear 3.5 128 0.60 76.8 10.0
5L128-0.6x10 5L128-76.8x10 Linear 5 128 0.60 76.8 10.0
7.5L128-0.6x10 7.5L128-76.8x10 Linear 7.5 128 0.60 76.8 10.0
10L128-0.5x7 10L128-64x7 Linear 10 128 0.50 64.0 7.0

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:3.5L128-0.6x10-TS26/3.5L128-76.8x10-I2

Element:128

Element Shape:linear

Size:LxWxH 83x21x35(mm)3.27x0.83x1.38(in)

Application:Testing of sheets or fittings made of steel

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
