Specifications
Place of origin :
China
Model Number :
TE-01
MOQ :
1
Delivery Time :
7 work days
Service :
OEM, ODM, OBM
Certification :
CE
Packaging Details :
Carton
Payment Terms :
T/T,PayPal
Warranty :
6 months
Brand Name :
TMTECK
Material :
Steel and plastic
Place of Origin :
China
Price :
Negotiation
Supply Ability :
50 pieces within one week
Description
Product Overview

The TMTeck Universal Mini-Wheel Encoder is designed for the positioning and dimensioning of defects along the scan axis. It synchronizes data acquisition with probe movement, making it a reliable component for phased array ultrasonic testing (PA UT) workflows.

The encoder is waterproof and compatible with the HST-X04 scanner as well as Olympus NDT standard PA wedges that can be connected using the included bracket kit. Its miniature construction features an aluminium casing and a stainless steel wheel, delivering a resolution of 12 counts per millimeter (304.8 counts per inch).

Key Features
  • Waterproof construction for demanding inspection environments
  • Compact, small-dimension design
  • Encoder resolution engraved directly on the wheel
  • Removable encoder wheel for easy maintenance
  • Double O-ring tire for improved adherence
  • Metallic strain relief for cable protection
  • Spring-loaded pin for secure encoder attachment
  • Two M3 threaded holes on top of the casing for rigid attachment
  • DE version compatible with the OmniScan instrument (DE15 connector type)
  • BX version compatible with the FOCUS LT instrument (Bendix connector type)

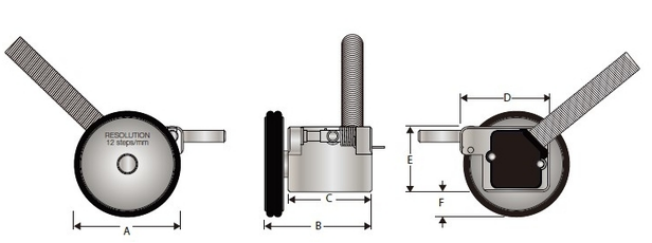

Dimensions
TMTeck Universal Mini-Wheel Encoder, Compatible with Olympus NDT Standard PA Wedges for Phased Array UT Inspection
A = 27 mm (1.06 in.) D = 24 mm (0.94 in.)
B = 28.7 mm (1.12 in.) E = 17.5 mm (0.69 in.)
C = 22.5 mm (0.89 in.) F = 6 mm (0.23 in.)

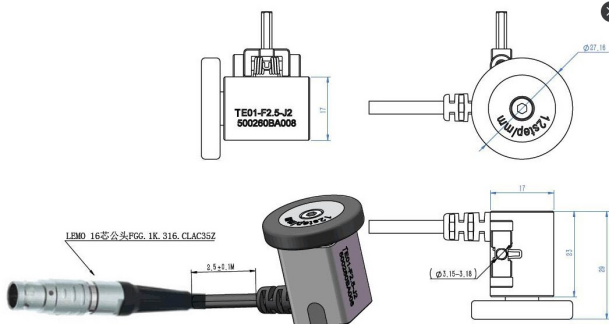

Part Numbers & Cable Options
Part Number Cable Length (m) Connector
TE01-F2.5-J2 2.5 J2
TE01-F5-J2 5.0 J2
TE01-F7.5-J2 7.5 J2
Standard Includes
  • 1 encoder with standard wheel
  • 1 bracket kit
  • 1 Allen key screwdriver for bracket attachment
  • 1 carrying case
TMTeck Universal Mini-Wheel Encoder, Compatible with Olympus NDT Standard PA Wedges for Phased Array UT Inspection
