TR13 Micro Mouse Scanner Magnetic Wheel Pipeline Welding Seam Scanner with Adjustable Fork Clamp and Intelligent Step Clicker Button
TR13 Micro Mouse Scanner Magnetic Wheel Pipeline Welding Seam Scanner with Adjustable Fork Clamp and Intelligent Step Clicker Button
Specifications
Payment Terms :
T/T,PayPal
Brand Name :
TMTECK
Shape dimensions :
80mm x 54mm x 150mm
Model Number :
TR13
Encoder voltage :
5V
MOQ :
1
Delivery Time :
1 month
Packaging Details :
Carton
Price :
Negotiation
Supply Ability :
50 pieces within one month
Certification :
CE
Encoder current :
Max 25 mA
Place of Origin :
China
Description

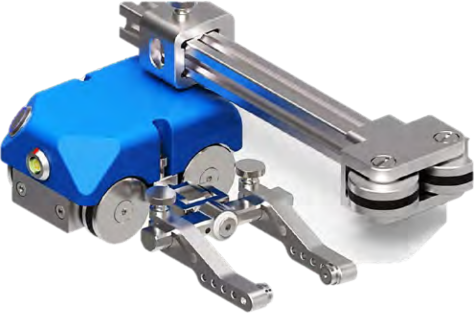

TR13 Micro Mouse Scanner

The TR13 is a magnetic-wheel scanner designed for the inspection of pipeline welding seams and flat plate welding seams. Its compact, lightweight construction makes it well suited to confined or hard-to-reach inspection areas.

TR13 Micro Mouse Scanner Magnetic Wheel Pipeline Welding Seam Scanner with Adjustable Fork Clamp and Intelligent Step Clicker Button

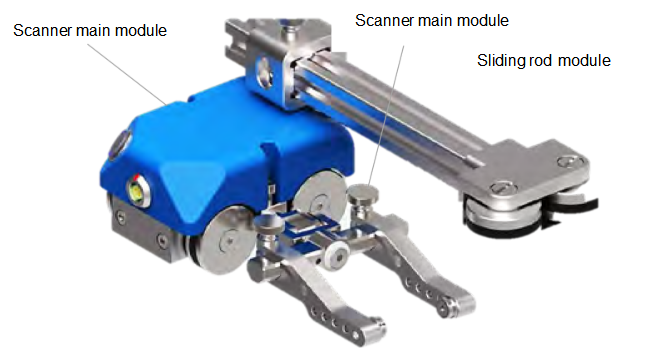

Modular Construction

The TR13 consists of three parts: the scanner main module, the clamping head module, and the sliding rod module. Depending on the operating condition, the slider module may or may not be installed. In general, the slider module can only be installed for detection when it has a positioning surface. The clamping head module can be mounted on either the right or the left side to suit the working condition.

Features and Applications
Model Features and Applications
Micro mouse scanner TR13
  1. Adjustable fork clamp for quick and easy installation of multi-dimensional wedges.
  2. Four magnetic wheels provide strong adhesion, maintaining contact with the measured surface.
  3. The clamping head module can be installed on the right or left side according to the working condition.
  4. Includes an intelligent step clicker button.
  5. The overall structure of the scanner is compact and light.
TR13 Micro Mouse Scanner Magnetic Wheel Pipeline Welding Seam Scanner with Adjustable Fork Clamp and Intelligent Step Clicker Button
TR13 Micro Mouse Scanner Magnetic Wheel Pipeline Welding Seam Scanner with Adjustable Fork Clamp and Intelligent Step Clicker Button

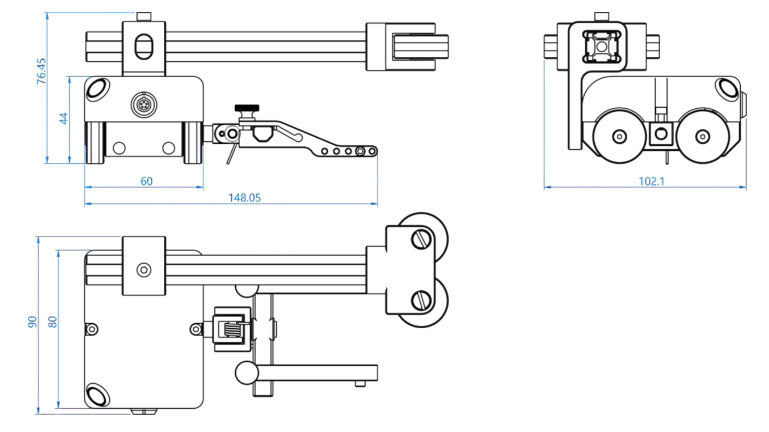

Specifications of Wheel Scanner
Project Parameter
Shape dimensions (length * width * height) 80 mm * 54 mm * 150 mm
Encoder voltage 5 V
Encoder current Max 25 mA
