TMLC-A1 Floor Thickness Tester with 40~820mm Test Range, Waterproof Design, and 30,000 Points Storage
TMLC-A1 Floor Thickness Tester with 40~820mm Test Range, Waterproof Design, and 30,000 Points Storage
Specifications
Model Number :
TMLC-A1
Thickness test range :
40~820mm
MOQ :
1
Delivery Time :
7 work days
Power supply :
Both the host and the transmitting probe have built-in lithium batteries
Payment Terms :
T/T,Western Union
Certification :
CE
Data storage capacity :
200 components or 30,000 measuring points
Brand Name :
TMTECK
Color :
Blue
Price :
Negotiation
Data transmission method :
USB Transmission, wireless cloud transmission (optional)
Supply Ability :
10 pieces within one week
Place of Origin :
China
Host shell :
Waterproof, dustproof, shockproof
Packaging Details :
Carton
Description
TMLC-A1 Floor Thickness Tester
Usage Overview

The TMLC-A1 floor thickness tester is a portable instrument suitable for testing the thickness of concrete or other non-magnetic media by non-destructive testing methods. When in use, the transmitting probe and the receiving probe are placed on the two opposite test surfaces of the floor to transmit and receive electromagnetic signals respectively. The instrument tests the floor thickness value according to the received signal strength.

Applicable Standards
  • GB 50204-2015 "Concrete Structure Engineering Construction Quality Acceptance Code"
  • JJF 1224-2009 "Calibration Specification for Steel Bar Cover and Floor Slab Thickness Measuring Instruments"
Features
  • Wireless cloud transmission function (optional)
  • Adopt triple-proof shell design, waterproof, dustproof and shockproof
  • The probe and the main unit are designed separately, which is convenient for operators to measure and use on site
  • Store floor slab thickness measurements by component
  • Easy to use, with complete measurement, storage and analysis functions
  • The stored data is transferred to the computer via the USB interface
  • Use Windows software to analyze data and generate test reports
  • Free switching between Chinese and English interfaces makes it more convenient and faster for foreign customers to use
Technical Parameters
Parameter Specification
Screen size 5 inches
LCD resolution 160x128
Volume 195x140x45mm
Weight 0.8kg
Host shell Waterproof, dustproof, shockproof
Thickness test range 40~820mm
Test accuracy 40~500mm: ±1mm
501～600mm: ±2mm
601～700mm: ±4mm
701~800mm: ±8mm
Data storage capacity 200 components or 30,000 measuring points
Data transmission method USB Transmission, wireless cloud transmission (optional)
Power supply Both the host and the transmitting probe have built-in lithium batteries
Working environment requirements Temperature: -10℃~40℃
Humidity: <90%RH
No strong alternating electromagnetic field
Avoid prolonged exposure to direct sunlight
Packing Specifications Material: Engineering plastic
Volume: 480*165*400mm
Weight: 5.5kg

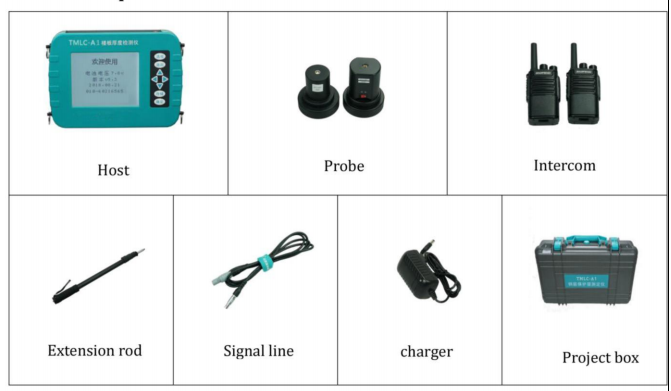

Instrument Composition
TMLC-A1 Floor Thickness Tester with 40~820mm Test Range, Waterproof Design, and 30,000 Points Storage

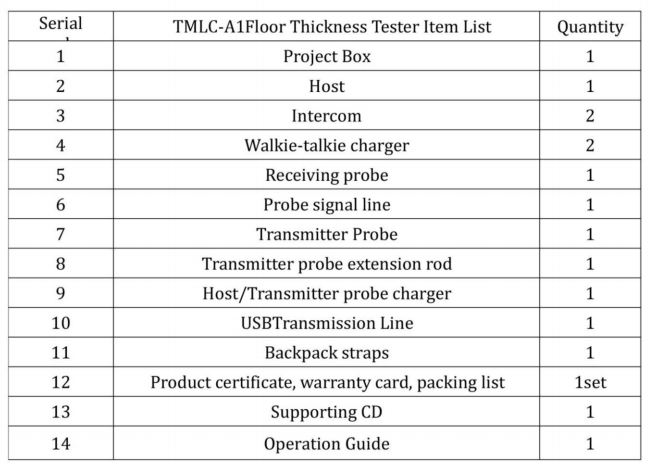

Product Configuration
TMLC-A1 Floor Thickness Tester with 40~820mm Test Range, Waterproof Design, and 30,000 Points Storage
