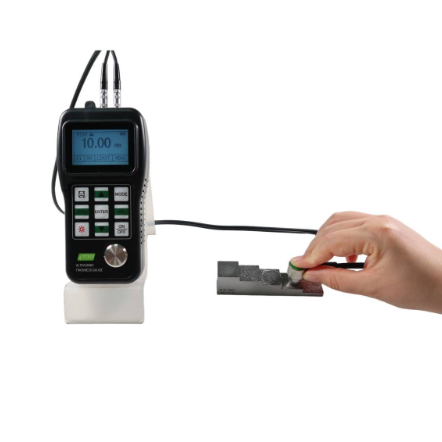

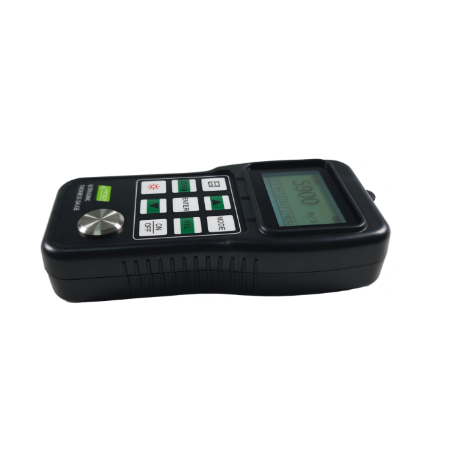

TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
Specifications
Price :
Negotiation
Display :
128*64 LCD with LED backlight
Model Number :
TM210 Plus
MOQ :
1
Delivery Time :
one week
Type :
Testing machine
Payment Terms :
T/T,Western Union
Measuring range :
0.75mm~300.0mm (0.03inch~11.8 inch)
Customized support :
OEM, ODM, OBM
Warranty :
2 years
Certification :
CE
Supply Ability :
100 pieces within two weeks
Sound velocity :
1000m/s~9999m/s
Place of Origin :
China
Brand Name :
TMTECK
Packaging Details :
Carton
Description
Ultrasonic Thickness Gauge TM210 PLUS

Features

1. Capable of performing measurements on a wide range of materials, including metals, plastics,
ceramics, composites, epoxies, glass, and other ultrasonically well-conductive materials.
2. Transducer models are available for special applications, including coarse-grained material and
high-temperature applications.
3. Probe-Zero function, Sound-Velocity-Calibration function.
4. Two-Point Calibration function.
5. Coupling status Indicator showing the coupling status.
6. Battery information indicates the remaining capacity of the battery.
7. Auto sleep and auto power off functions to conserve battery life.
8. Optional software to process the memory data on the PC.
9. An optional thermal mini-printer to print the measured data via the USB port.
10. Adjust the gain function, can easy to test the cast iron material.

Specifications
Display: 128×64 LCD with LED backlight
Measuring range: 0.75mm~300.0mm (0.03inch~11.8 inch)
Sound velocity: 1000m/s~9999m/s (0.039~0.394in/µs)

Display resolution:0.01mm or 0.1mm (lower than 100.0mm)

0.1mm (more than 99.99mm)
Accuracy: ±(0.5%Thickness +0.02)mm, depends on Materials and conditions
Units: Metric/Imperial unit selectable.
Lower limit for steel pipes:
5MHz probe: F20mm´3.0mm(F0.8´0.12 inch)
10MHz probe: F20mm´3.0mm(F0.6´0.08 inch)
Power Source: 2pcs 1.5V AA size, batteries.100 hours typical operating time(LED backlight off).
Communication: USB serial port
Outline Dimensions: 150mm×74mm×32mm
Weight: 238 g
Four measurements per second for a single point measurement,
Memory for up to 5 files(up to 100 values for each file) of stored values

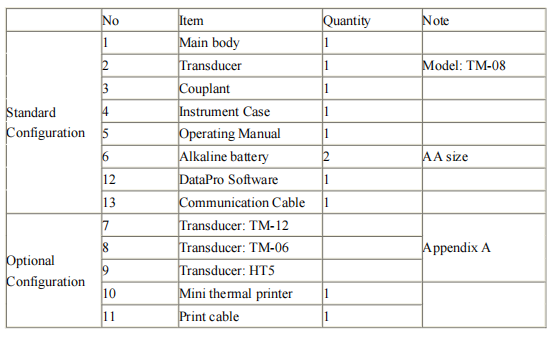

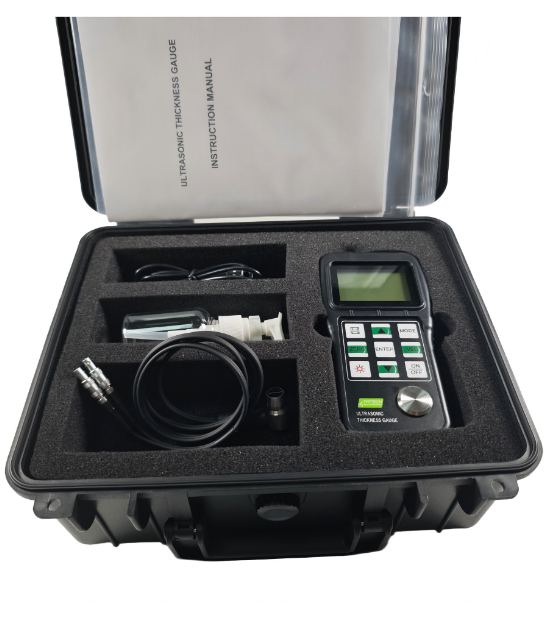

Configuration
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites

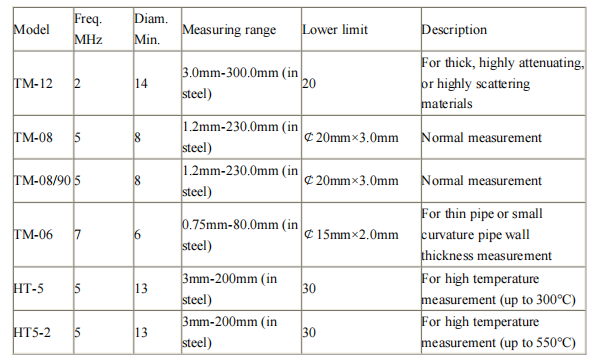

Selectable Probes for TM210 Plus
TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites

TM210 Plus Ultrasonic Thickness Gauge for Metal, Plastic, Ceramic, Glass & Composites
