TFD-N91 Non-metallic Ultrasonic Tester with Wireless Cloud Transmission 10.1-inch TFT Color LCD and Built-in Lithium Battery
TFD-N91 Non-metallic Ultrasonic Tester with Wireless Cloud Transmission 10.1-inch TFT Color LCD and Built-in Lithium Battery
Specifications
Supply Ability :
10 pieces within one week
Model Number :
TFD-N91
Frequency bandwidth :
1~500
Price :
Negotiation
Measuring rang :
0~10mm
Certification :
CE
Gain accuracy :
0.5dB
MOQ :
1
Delivery Time :
7 work days
Temperature range :
Power supply
Payment Terms :
T/T,Western Union
Brand Name :
TMTECK
Acoustic time :
0.05
Place of Origin :
China
Power supply :
Built-in lithium battery
Packaging Details :
Carton
Description
TFD-N91 Non-metallic Ultrasonic Tester
Product Overview
The TFD-N91 Non-metallic Ultrasonic Tester utilizes ultrasonic transmission methods for comprehensive testing applications including foundation pile detection, continuous wall integrity assessment, structural concrete analysis, and mechanical property evaluation of non-metallic materials.
Key Applications
  • Rapid and continuous detection of foundation piles
  • Continuous wall integrity assessment
  • Structural concrete compressive strength detection
  • Structural concrete crack depth and width detection
  • Concrete pavement bending resistance detection
  • Mechanical properties detection of non-metallic materials
Product Features
  • New upgraded wireless cloud transmission function (optional)
  • Integrates six functions: pile measurement, strength measurement, defect measurement, width measurement, depth measurement, and road surface bending resistance measurement
  • Stable performance with powerful functionality for engineering testing, teaching, and scientific research
  • Semi-reflective, high-brightness TFT color LCD display
  • Full touch screen operation for simple and reliable use
  • Large memory capacity with working time exceeding 10 hours
  • Compatible with digital rebound tester probe for ultrasonic rebound comprehensive method strength measurement
  • USB data transfer and software upgrade capability
  • Powerful dedicated analysis software for data processing, reporting, and printing
  • Chinese and English interface switching for international use
Applicable Standards

Technical Specifications for Building Foundation Pile Testing - JGJ 106-2014

Technical Specifications for Dynamic Measurement of Highway Engineering Pile Foundations - JTG/TF81-01-2004

Technical Regulations for Pile Testing of Railway Engineering Projects - TB 10218-2019

Building foundation testing specifications - DBJ/T 15-60-2019

Shenzhen Building Foundation Pile Testing Regulations - SJG09-2020

Technical Specification for Ultrasonic Detection of Concrete Defects - CECS 21:2000

Technical Specification for Testing Concrete Strength by Ultrasonic Rebound Comprehensive Method - CECS 02: 2020

Railway Engineering Structure Concrete Strength Test Code - TB 10426-2019

Technical Specification for Entity Inspection of Concrete Structures in Water Transport Engineering - JTS 239-2015

Technical Specifications for Strength Testing of High-Strength Concrete - JGJ/T294-2013

Technical Specification for Testing the Strength of Pumped Concrete by Rebound Method and Ultrasonic Rebound Combined Method - DBJ/T01-78-2003

Technical Specification for Compressive Strength Testing of Structural Concrete - DG/TJ08-2020-2007

Technical Specification for Testing Structural Concrete Strength by Ultrasonic Rebound Comprehensive Method for Highway Engineering - DB51/T1996-2015

Technical Specification for Testing Concrete Compressive Strength by Ultrasonic Rebound Comprehensive Method - T/CECS02-2020

Technical Specifications for Pile Testing of Highway Engineering - JTG/T 3512-2020

Technical Specifications for Testing and Inspection of Water Transport Engineering Foundations - JTS237-2017

Technical Specifications
Parameter Specification
Product Model TFD-N91 Non-metallic Ultrasonic Detector
Main Control Unit Built-in A8 industrial control motherboard
Display 10.1-inch, high-brightness TFT color LCD capacitive
Operation Touchscreen
Storage Built-in electronic hard disk (≥8GB) + large capacity
Data Transmission USB transmission, wireless cloud transmission
Acquisition Mode Single-channel manual point-by-point acquisition
Number of Channels 1 transmit + 1 receive
Trigger Mode Signal trigger
Sampling Period (μs) 0.05~409.6 multiple options
Acoustic Time 0.05
Sound Time Range (μs) ±1677700
Width Measurement Measuring range: 0~10mm
Dynamic Range (dB) 146
Frequency Bandwidth 1~500
Receiving Sensitivity ≤10
Gain Accuracy (dB) 0.5
Emitting Voltage (V) 125, 250, 500, 1000 four gears adjustable
Communication USB
Working Hours (h) ≥8
Power Supply Built-in lithium battery
Work Environment Temperature: -10℃~+40℃, Humidity: <90% RH
Host Size (mm) 305 * 195 * 58
Project Box Size (mm) 480 * 165 * 390
Product Weight 8.5 KG

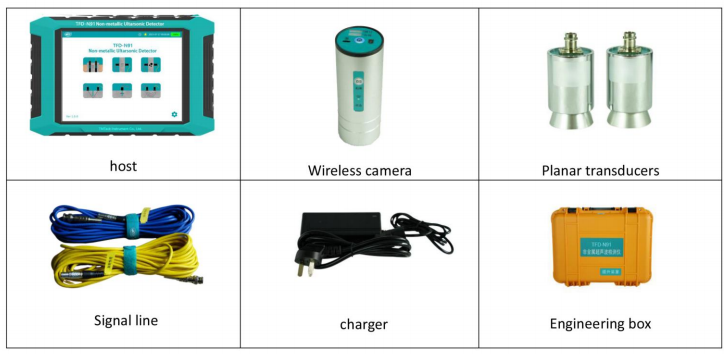

Instrument Composition
TFD-N91 Non-metallic Ultrasonic Tester with Wireless Cloud Transmission 10.1-inch TFT Color LCD and Built-in Lithium Battery
Standard Configuration
Serial No. Item Quantity
1 Project Box 1
2 Host 1
3 Planar Transducer 2
4 Slit-width Camera 1
5 Touch Pen 1
6 10-meter Signal Line 2
7 Camera Signal Cable 1
8 Check Plate 1
9 Host Charger 1
10 Host Bracket 1
11 Backpack Straps 1
12 Program Disk 1
13 Operation Guide 1
14 Product Certificate, Warranty Card, Packing List 1 set
